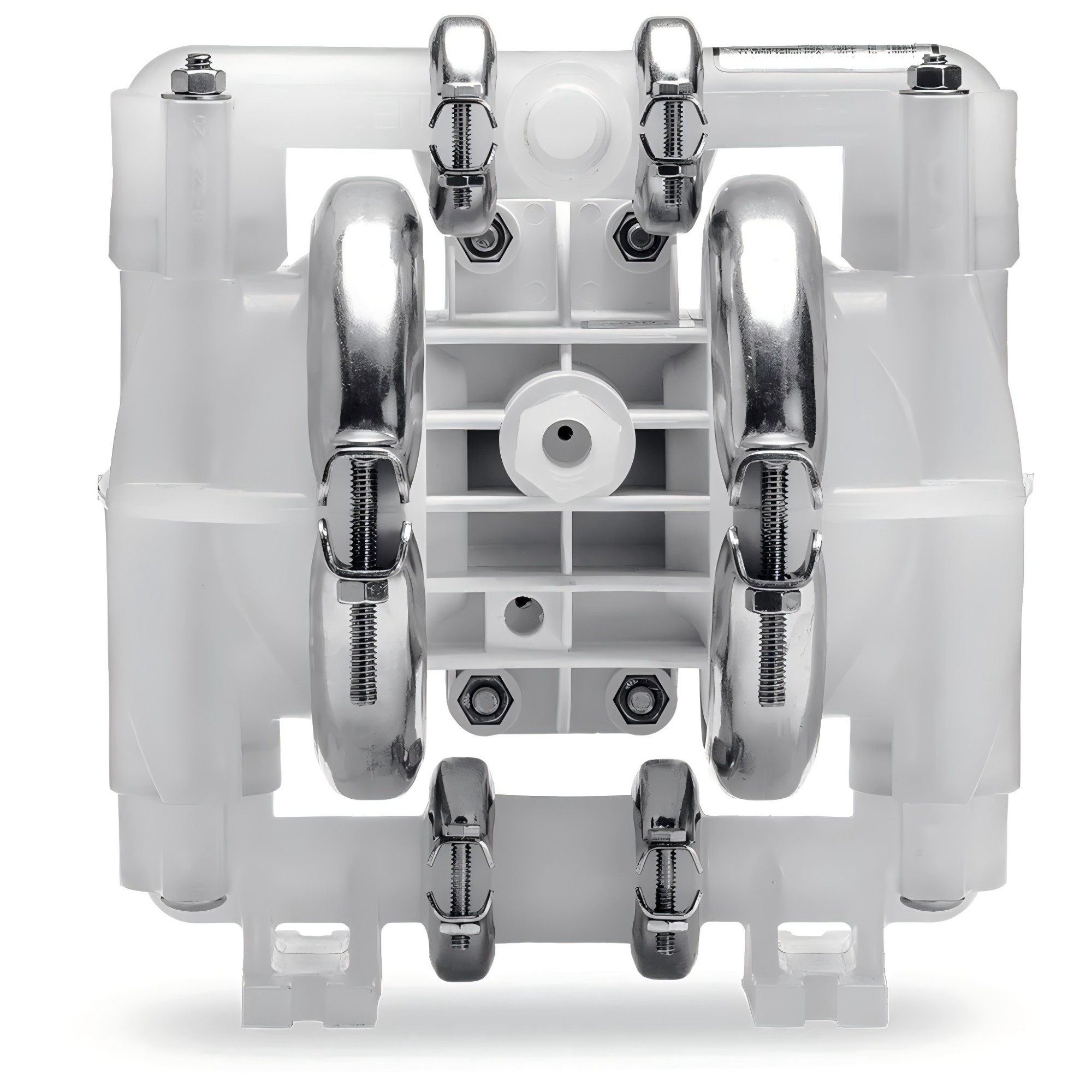

01-2659 WILDEN Pneumatic Diaphragm Pump (AODD), PVDF material, 1/2" model P1/KKPPP/TNU/TF/KTV

PDF

Product Description:

WILDEN AODD Pump, PVDF, 1/2" Pro-Flo®, Clamped, Threaded, w/ PTFE

Item: 01-2659

Description: P1/KKPPP/TNU/TF/KTV

Attributes for item 01-2659

Model (in.):

0.5

Technical Construction:

CLAMPED

Wetted Path Material:

PVDF

Diaphragm Material:

PTFE

Diaphragm Design:

TRADITIONAL

Diaphragm Stroke:

Reduced-Stroke

Connection Standard:

NPT

Inlet Size (in.):

0.5

Inlet Orientation:

CENTER SWIVEL

Discharge Size (in.):

0.5

Discharge Orientation:

CENTER SWIVEL

Outer Piston Materials:

PVDF

Air Side Material:

POLYPROPYLENE

Valve Material:

PTFE

Valve Type:

VALVE BALL

Valve Seat MATERIAL:

PVDF

O Rings Gasket Material:

PTFE-ENCAPSULATED FKM

Hardware Material:

STAINLESS STEEL

Muffler Material:

Plastic

Self Priming:

YES
