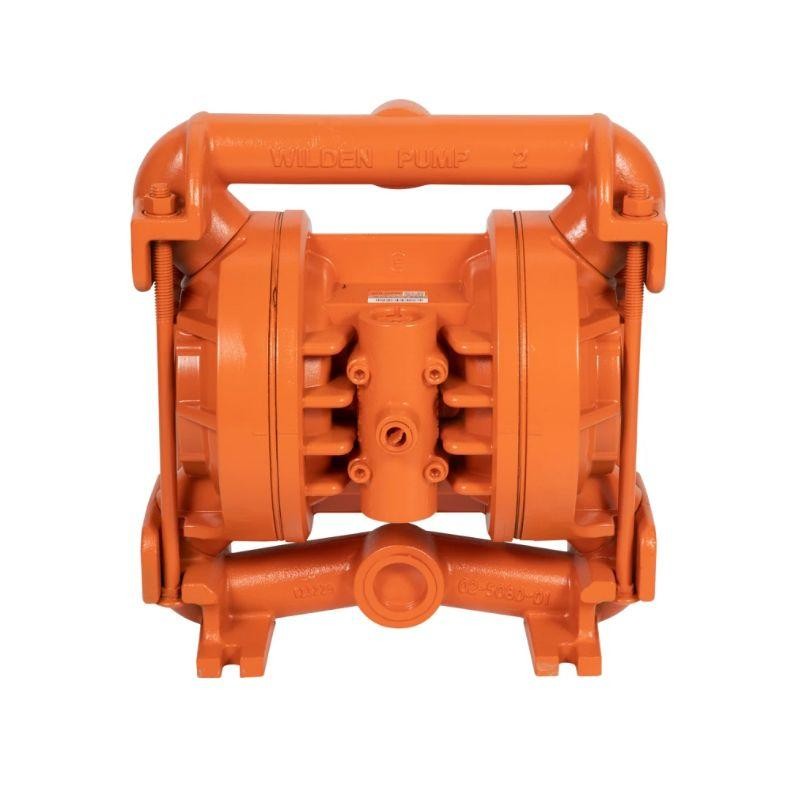

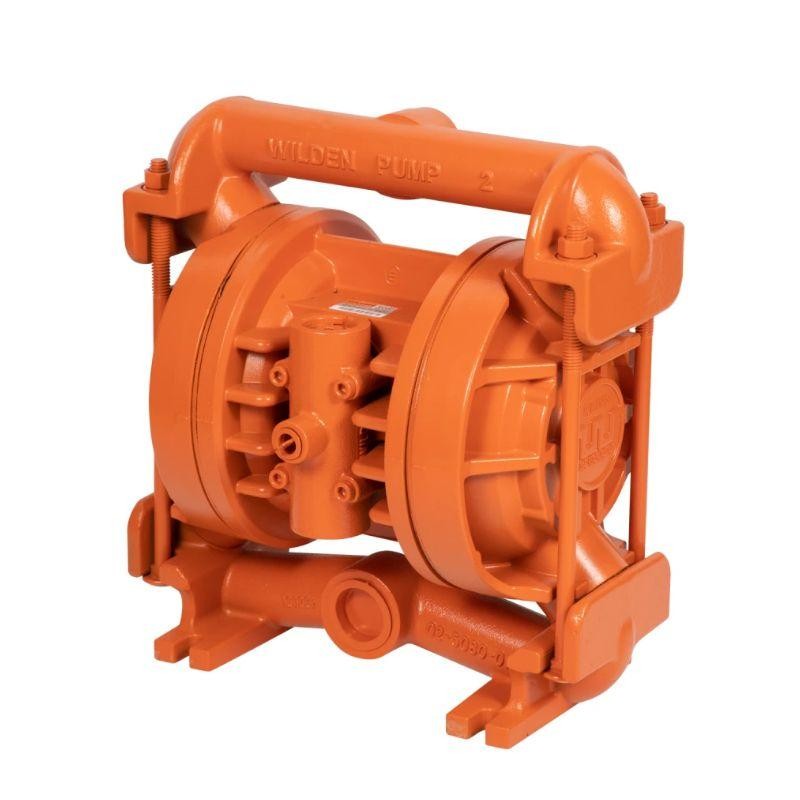

1" Turbo-Flo Series Clamp-On Metal Pumps

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 25 mm (1")

LIQUID DISCHARGE

• 19 mm (3/4")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.18m(17')Dry,9.45m(31')Wet

• TPE – 5.18 m (17') Dry, 9.45 m (31') Wet

• PTFE – 1.83 m (6') Dry, 9.5 m (31') Wet

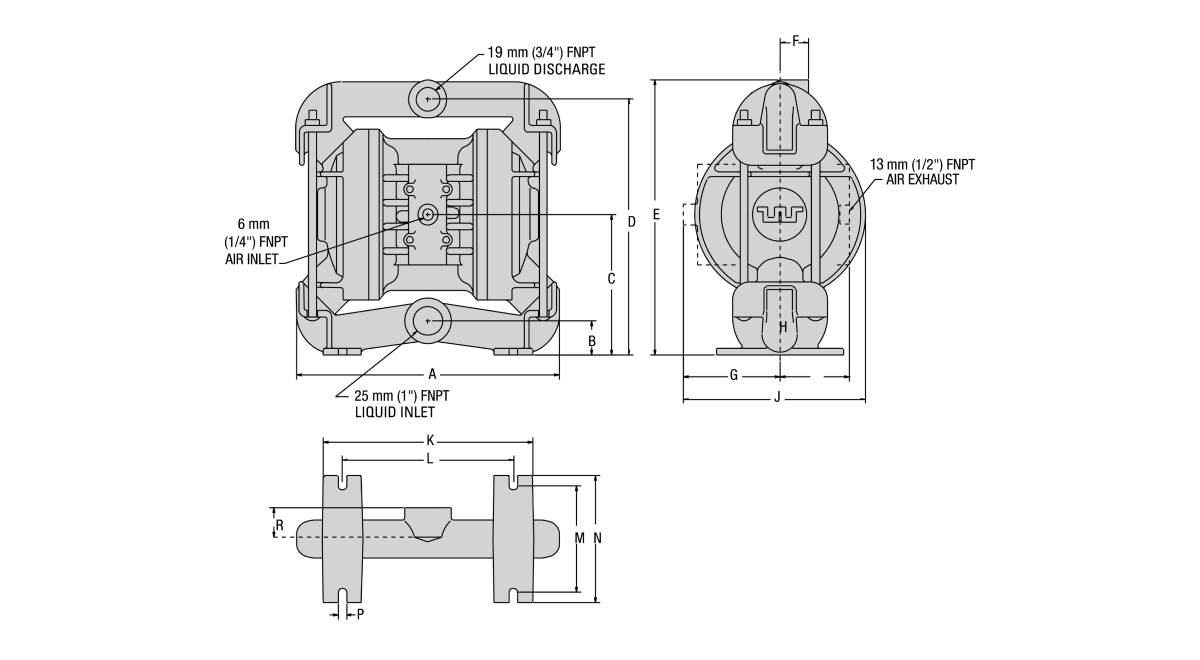

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the T4 Metal Manual.

Wetted Housings

MATERIAL	SHIP WEIGHT
Aluminum	12 kg (26 lb)
Cast Iron	16 kg (36 lb)

Non-Wetted Housings

DESCRIPTION	MATERIAL
Center Section	Aluminum, Polypropylene
Air Valve	Brass
Air Chamber	Aluminum, Mild Steel, Polypropylene

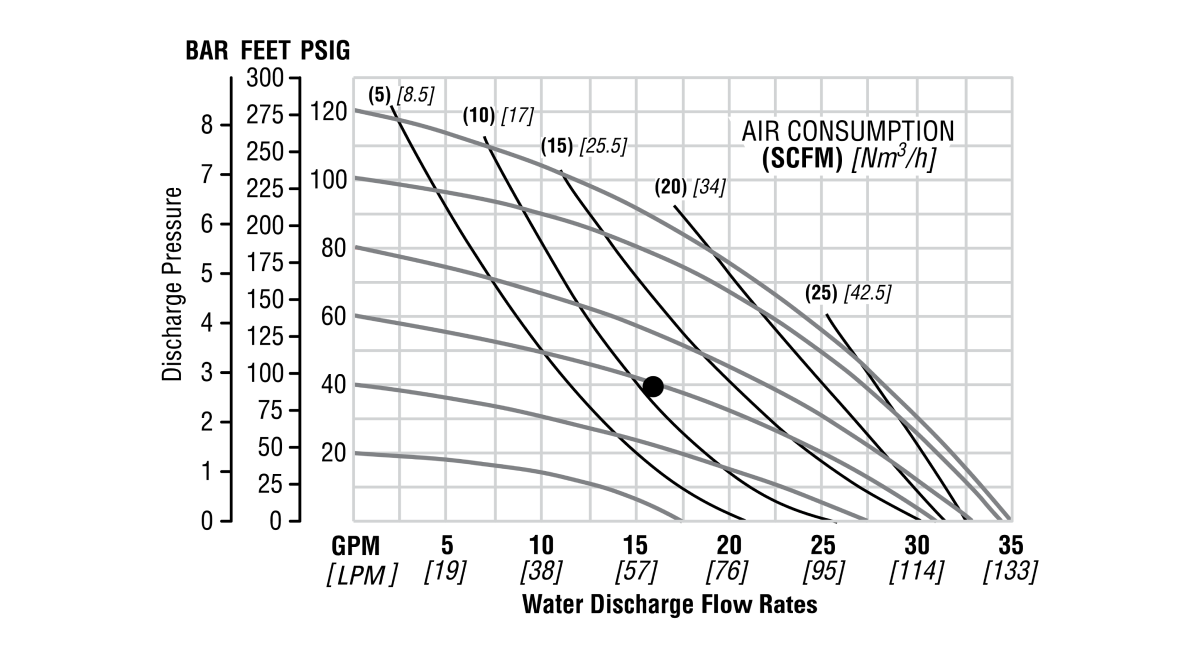

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the T4 Metal Manual.

MAX FLOW RATE

• Rubber – 132 lpm (35 gpm)

• TPE – 132 lpm (35 gpm)

• PTFE – 95 lpm (25 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 3.2 mm (1/8'')

DISPLACEMENT PER STROKE *

• Rubber – 0.41 L (0.105 gal)

• TPE – 0.41 L (0.105 gal)

• PTFE – 0.19 L (0.05 gal)

* 1 cycle = 2 strokes
