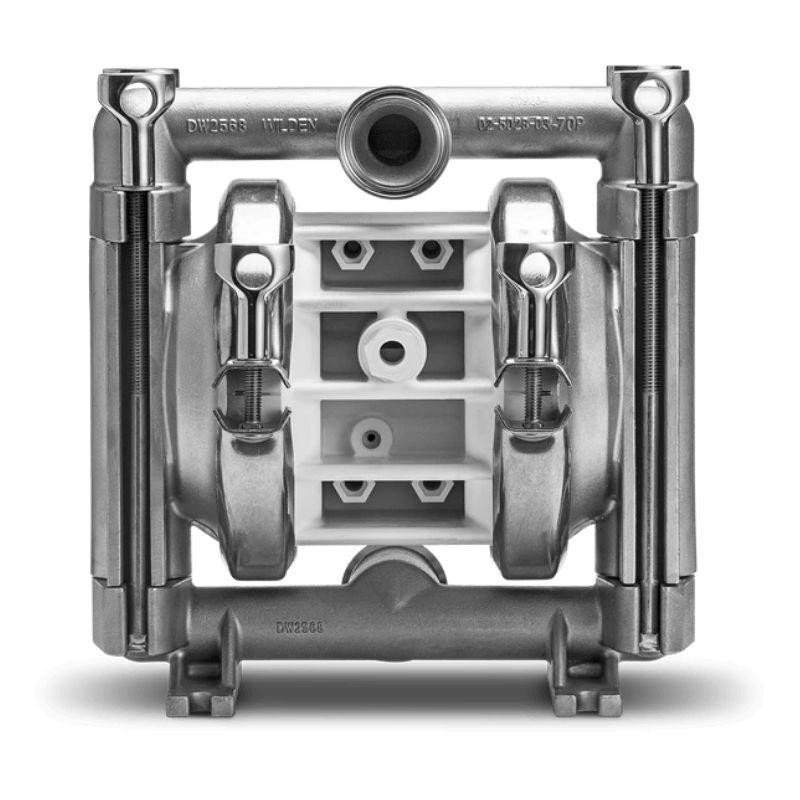

1" Pro-Flo FDA Series Clamp-On Metal Diaphragm Pumps

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P2 Metal Manual.

Flow Curves – TPE-Fitted

Note: Additional performance curves can be found in the P2 Metal Manual.

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• Tri-Clamp®

MAX FLOW RATE

• Rubber – 172 lpm (45.5 gpm)

• TPE – 171 lpm (45.2 gpm)

• Full-Stroke PTFE – 167 lpm (44.1 gpm)

• Reduced-Stroke PTFE – 155 lpm (41 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAXIMUM DIAMETER SOLIDS

• 3.2mm (1/8")

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet

• TPE – 7.6 m (25.0') Dry, 9.0 m (29.5') Wet

• Full-Stroke PTFE – 4.7 m (15.3') Dry, 9.0 m (29.5') Wet)

• Reduced-Stroke PTFE – 2.8 m (9.1') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.3 L (0.08 gal)

• TPE – 0.3 L (0.08 gal)

• Full-Stroke PTFE – 0.3 L (0.08 gal)

• Reduced-Stroke PTFE – 0.3 L (0.08 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
