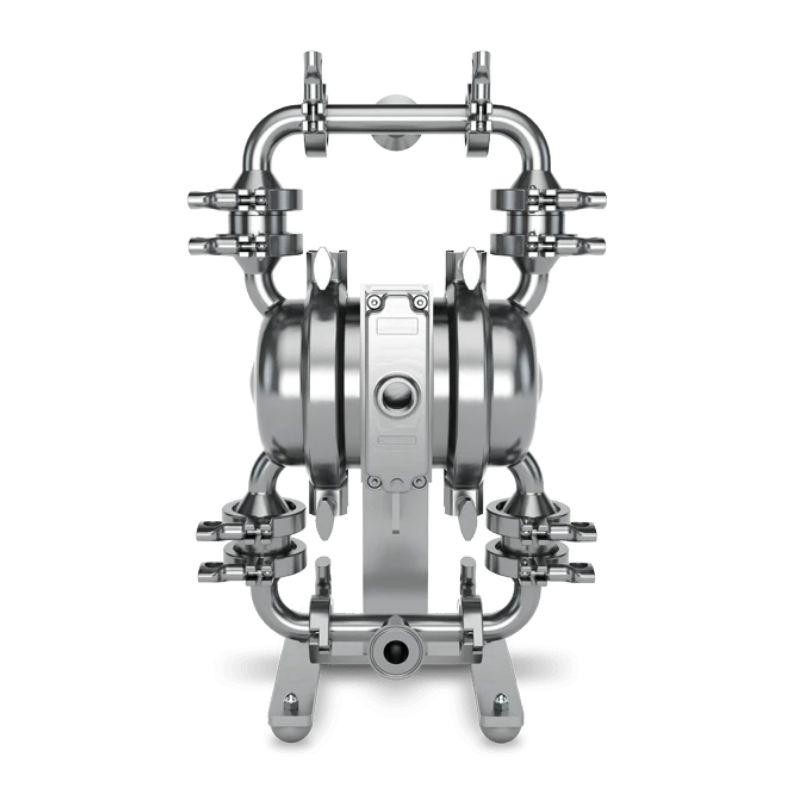

1" sanitary clamp-on diaphragm pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the Hygienic PS2 Metal Manual.

Flow Curves – Full-Stroke Integral Piston Diaphragm-Fitted

Note: Additional performance curves can be found in the Hygienic PS4 Metal Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 25 mm (1")

LIQUID DISCHARGE

• 25 mm (1")

CONNECTION TYPE

• Tri-Clamp®

• DIN

• SMS

MAX FLOW RATE

• Full-Stroke Integral Piston - 117 lpm (31 gpm)

• Full-Stroke TPE  - 109 lpm (29 gpm)

• Full-Stroke PTFE - 117 lpm (31 gpm)

• Rubber - 121 lpm (32 gpm)

VALVE OPTIONS

• Ball

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4")

MAX SUCTION LIFT CAPABILITY

• Full-Stroke Integral Piston - 2.4 m (8') Dry, 7.9 m (26') Wet

• Full-Stroke TPE - 1.2 m (4') Dry, 7.9 m (26') Wet

• Full-Stroke PTFE - 1.5 m (10') Dry, 7.6 m (25') Wet

• Rubber - 3.9 m (13') Dry, 7.6 m (25') Wet

DISPLACEMENT PER STROKE *

• Full-Stroke Integral Piston - 0.2 L (0.07 gal)

• Full-Stroke TPE - 0.2 L (0.07 gal)

• Full-Stroke PTFE - 0.22 L (0.06 gal)

• Rubber - 0.2 L (0.07 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
