Ratio: 1:1 Maximum Flow: (ball) 13 g.p.m. (49.2 l.p.m.) (duckbill) 10 g.p.m. (37.9 l.p.m.) Displacement per cycle: (ball) 0.04 g.p.m. (0.15 l.p.m.) (duckbill) 0.032 g.p.m. (0.12 l.p.m.) Air Inlet: (Female) 1/4 - 18 N.P.T.F. - 1 Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. - 1 Max. operating pressure: 100 psi (6.9 bar) Suspended solids max. dia.: (ball) 3/32” (2.4-mm) (duckbill) fibers Weight: lbs (kg) Polypropylene 7.2 (3.3) Groundable Acetal 8.8 (4.0) Kynar PVDF 9.5 (4

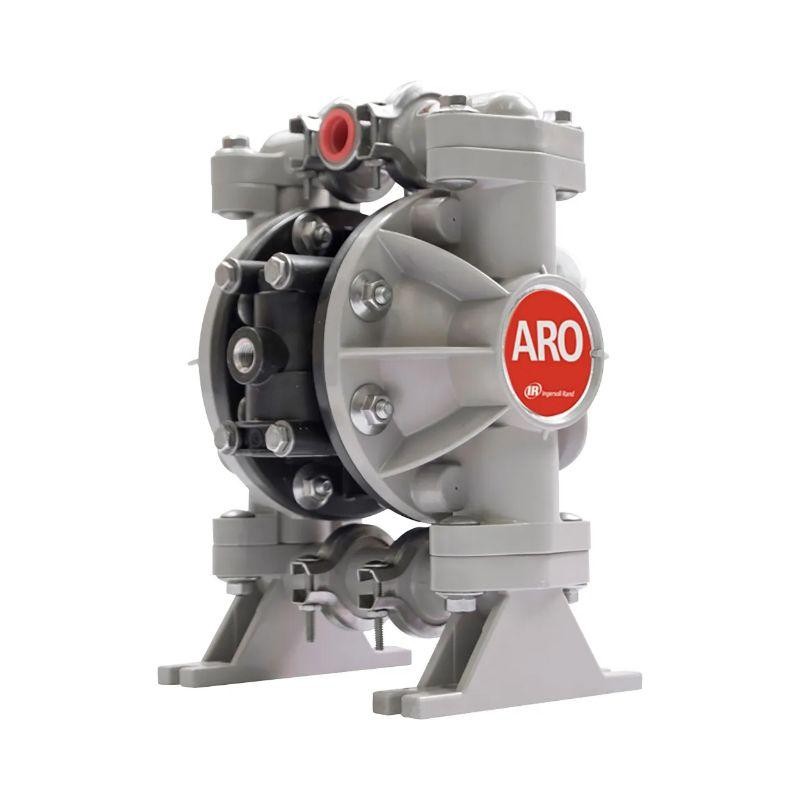

Part of our Compact Series of pumps, our 1/2” classic pumps feature big performance in a small package. With flow rates up to 13 GPM
(49.2 LPM) and a wide range of material and porting configurations.
Features
ARO has the world's best selling 1/2" ported diaphragm pump.
Designed to meet your OEM application needs.
Efficiency - Motor design delivers optimum air efficiency
Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
Versatility - Center, End, Dual Inlet / Outlet, and Swivel Top manifold configurations to fit your specific application
Evironmentally Sound - Bolted construction for leak-free fluid handling
Serviceability - Ease of service through modular design
Accessories
76763 Wall Mount Bracket
67165-X Cycle Actuation Kit
P29122-600 Piggyback Filter-Regulator
637141 Air Section Service Kit
637140-XX Fluid Section Service Kit
Pump Casing Materials
Polypropylene
Groundable Acetal
PVDF (Kynar)
Diaphragm Materials
Neoprene
Nitrile
Viton
PTFE / Santoprene
E.P.R.
Polyurethane
Hytrel
Santoprene
