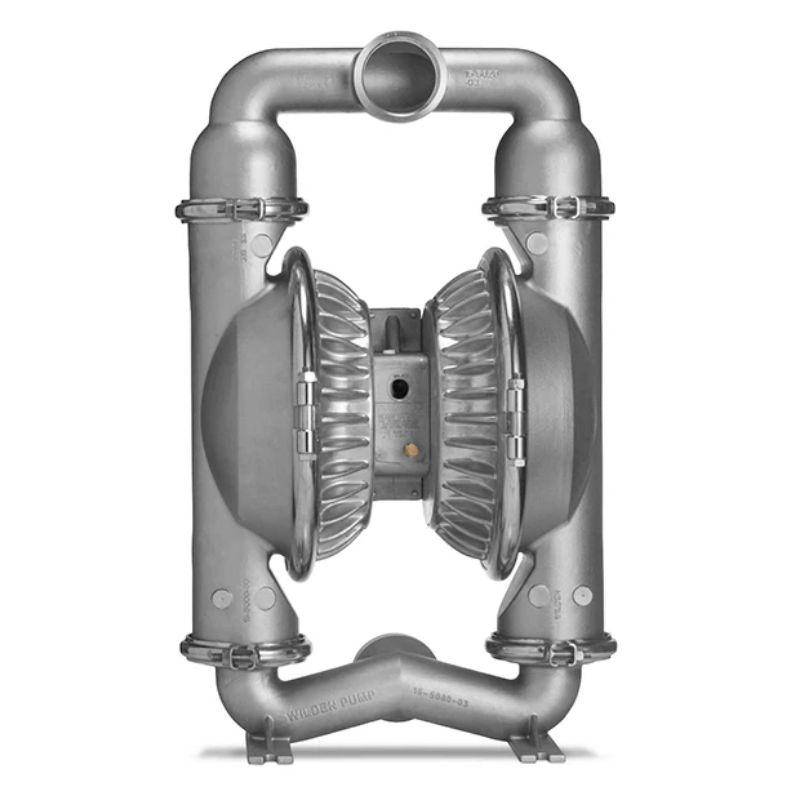

3" Pro-Flo SHIFT FDA Series Clamp-On Metal Diaphragm Pumps

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS15 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS15 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 76 mm (3")

LIQUID DISCHARGE

• 76 mm (3")

CONNECTION TYPE

• Tri-Clamp®

MAX FLOW RATE

• Rubber – 927 lpm (245 gpm)

• EZ-Install TPE – 901 lpm (238 gpm)

• Full-Stroke PTFE – 916 lpm (242 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 9.5 mm (3/8")

MAX SUCTION LIFT CAPABILITY

• Rubber – 6.6 m (21.6’) Dry, 8.6 m (28.4’) Wet

• EZ-Install TPE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet

• Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet

DISPLACEMENT PER STROKE *

• Rubber – 5.2 L (1.38 gal)

• EZ-Install TPE – 5.3 L (1.41 gal)

• Full-Stroke PTFE – 5.1 L (1.34 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
