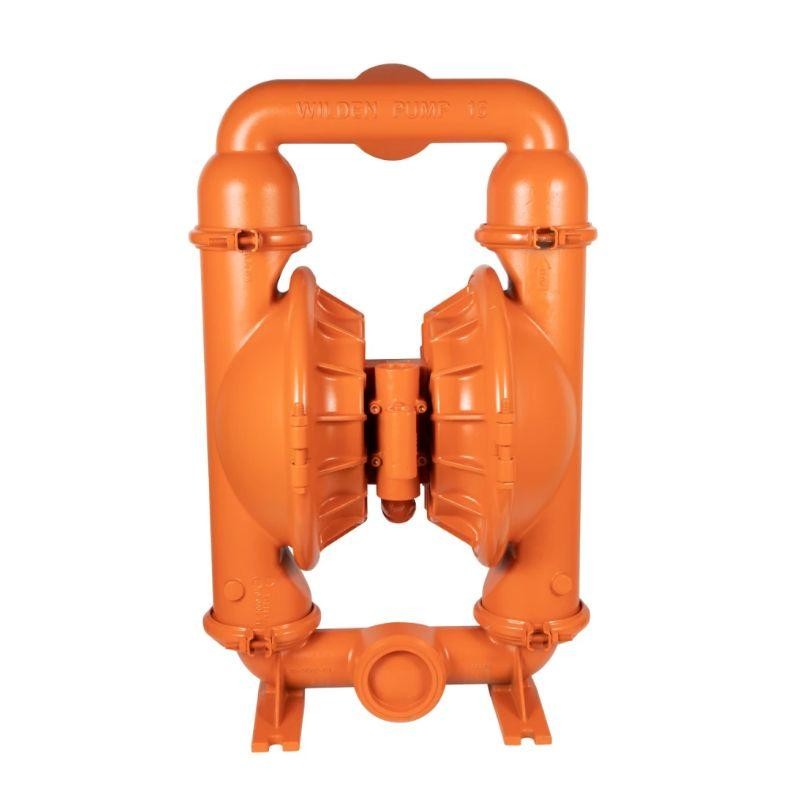

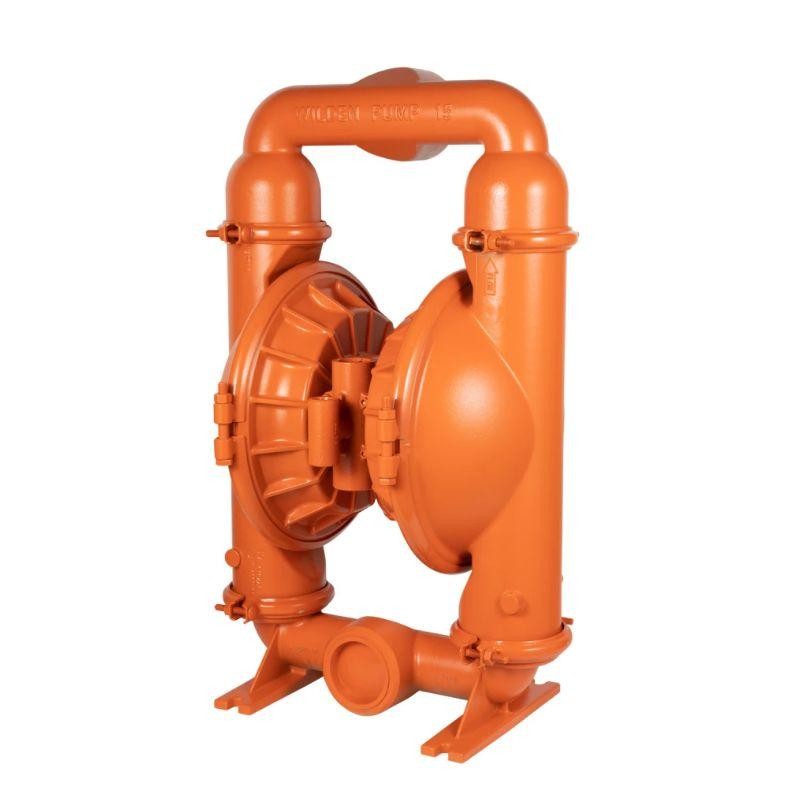

3" Turbo-Flo Series Clamp-On Metal Pumps

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the T15 Metal Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the T15 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 76 mm (3")

LIQUID DISCHARGE

• 76 mm (3")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 878 lpm (232 gpm)

• TPE – 845 lpm (223 gpm)

• PTFE – 704 lpm (186 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 10 mm (3/8'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.5 m (18') Dry, 9.45 m (31') Wet

• TPE – 3.49 m (13') Dry, 8.53 m (28') Wet

• PTFE – 3.49 m (13') Dry, 8.53 m (28') Wet

DISPLACEMENT PER STROKE *

• Rubber – 5.3 L (1.40 gal)

• TPE – 5.4 L (1.43 gal)

• PTFE – 3.6 L (0.95 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
