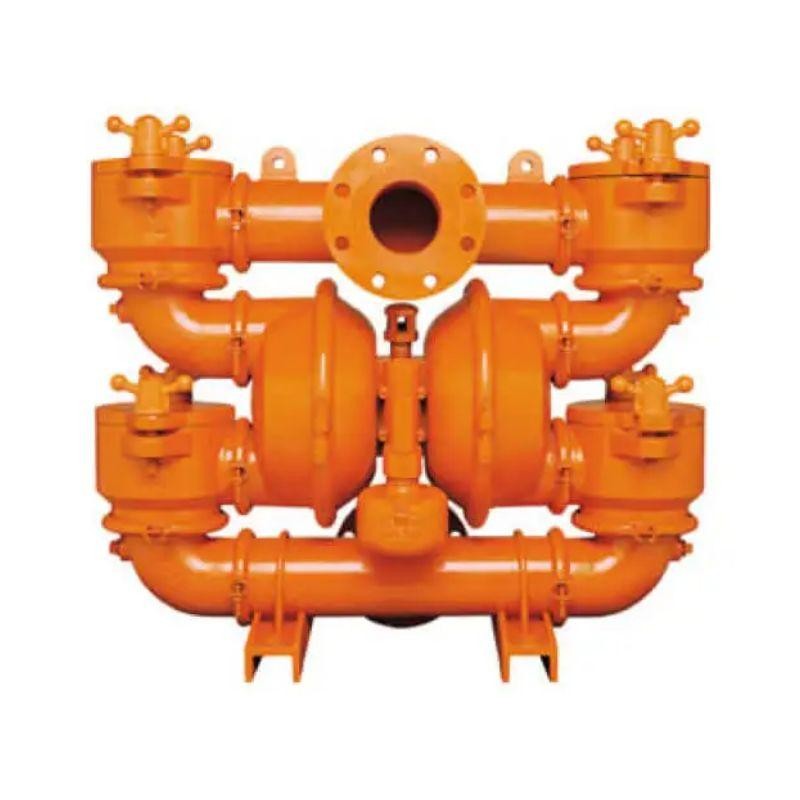

4" Turbo-Flo Series Clamp-On Metal Pumps

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the T20 Metal Manual.

Flow Curve – Rubber-Fitted

Note: Additional performance curves can be found in the T20 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 102 mm (4")

LIQUID DISCHARGE

• 102 mm (4")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 1,041 lpm (275 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 35 mm (1-3/8'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 3.66 m (12') Dry, 9.14 m (30') Wet

DISPLACEMENT PER STROKE *

• Rubber – 4.62 L (1.22 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
