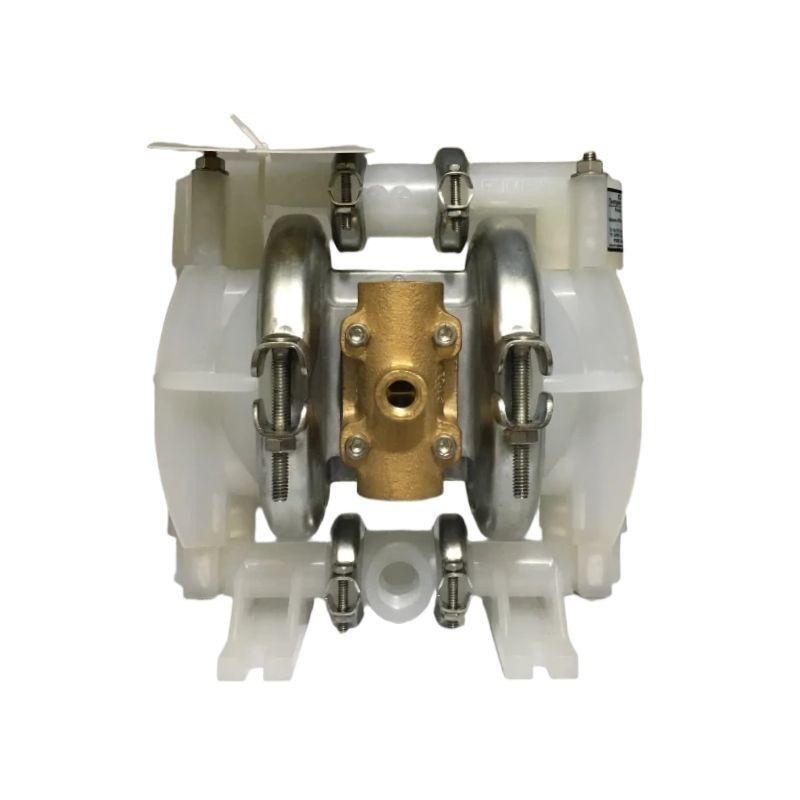

1/2" Turbo-Flo Series Clamp-On Plastic Pumps

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 13 mm (1/2")

LIQUID DISCHARGE

• 13 mm (1/2")

CONNECTION TYPE

• NPT(Threaded)

MAX SUCTION LIFT CAPABILITY

• Rubber – 4.3 m (14.2') Dry, 7.9(26') Wet

• TPE – 4.2 m (13.8') Dry, 8.23 m (27')Wet

• PTFE – 4.2 m (13.8') Dry,8.53m(28')Wet

MAX FLOW RATE

• Rubber – 60 lpm (15.8 gpm)

• TPE – 59 lpm (15.6 gpm)

• PTFE – 59 lpm (15.6 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 1.6 mm (1/16'')

DISPLACEMENT PER STROKE *

• Rubber – 0.11 L (0.03 gal)

• TPE – 0.11 L (0.03 gal)

• PTFE – 0.11L (0.03 gal)

* 1 cycle = 2 strokes
