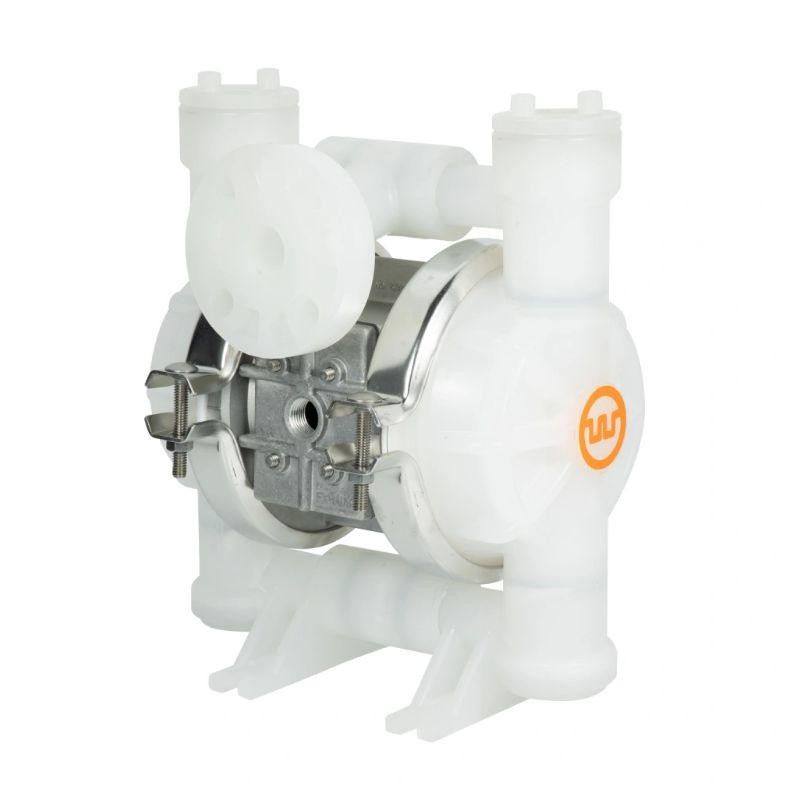

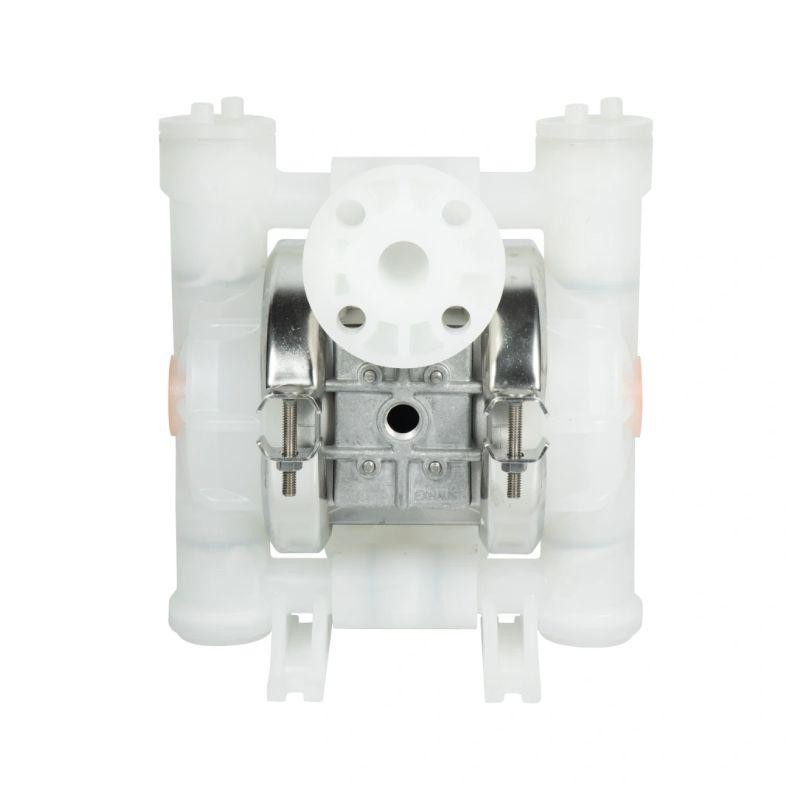

1" Turbo-Flo Series Clamp-On Plastic Pumps

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 25 mm (1")

LIQUID DISCHARGE

• 25 mm (1")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.5m(18')Dry, 8.8 m (29') Wet

• TPE – 5.5 m (18') Dry, 8.8 m (29') Wet

• PTFE – 4.1m (13.6') Dry, 8.6 m (28.4') Wet

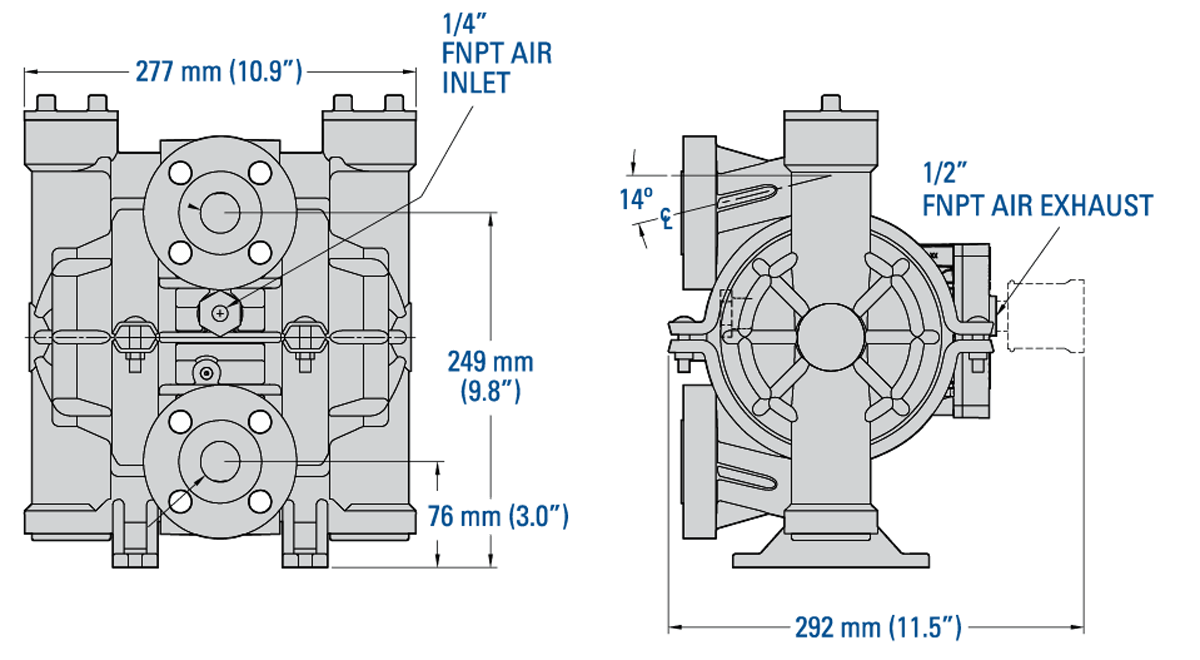

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the TZ2 Metal Manual.

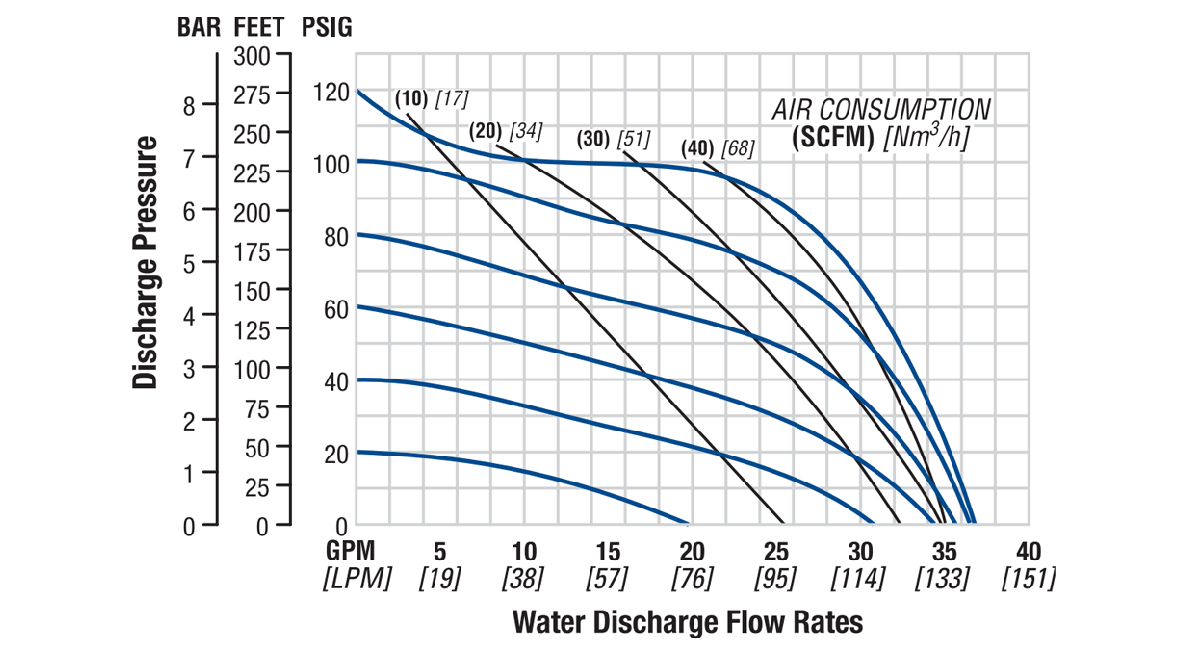

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the TZ2 Metal Manual.

MAX FLOW RATE

• Rubber – 140 lpm (37 gpm)

• TPE – 140 lpm (37 gpm)

• PTFE – 121 lpm (32 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 3.2 mm (1/8'')

DISPLACEMENT PER STROKE *

• Rubber – 0.31 L (0.08 gal)

• TPE – 0.39 L (0.1 gal)

• PTFE – 0.23 L (0.06 gal)

* 1 cycle = 2 strokes
