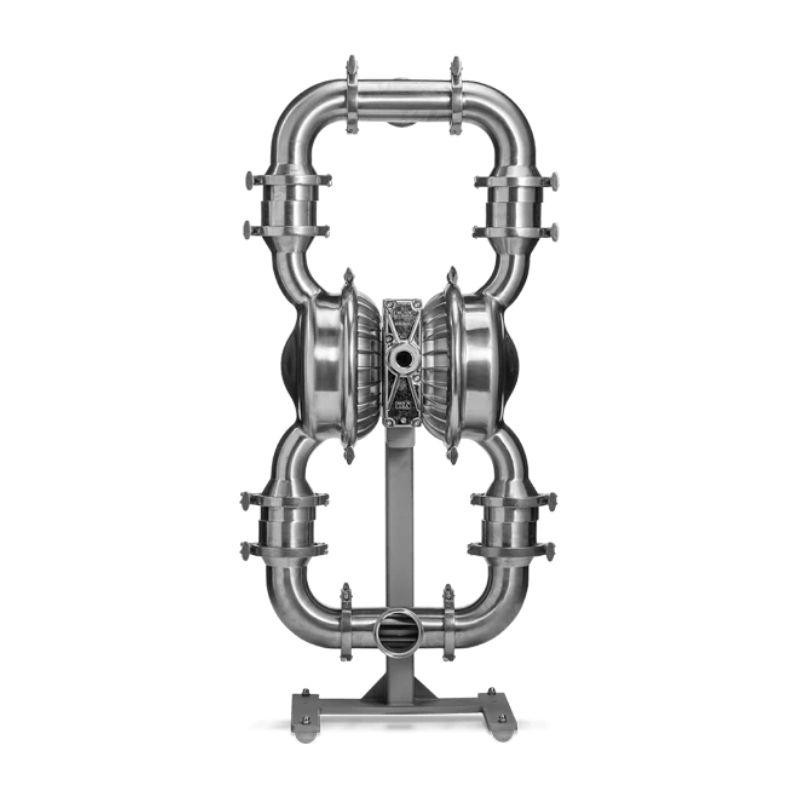

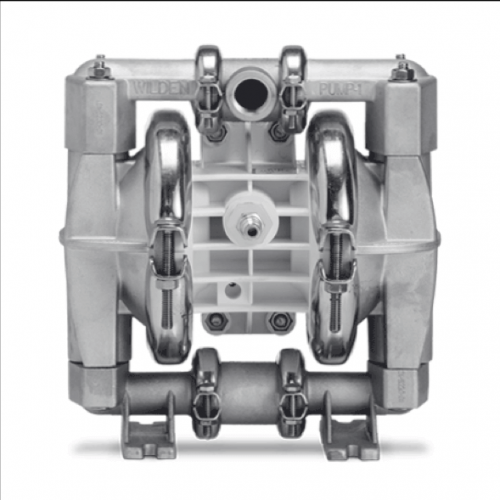

3" sanitary clamp-on diaphragm pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS15 Sanfilo HS EOM.

Flow Curve – Full-Stroke Integral Piston Diaphragm (Pure-Fuse)

Note: Additional performance curves can be found in the PS15 Saniflo HS EOM.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 76 mm (3")

LIQUID DISCHARGE

• 76 mm (3")

CONNECTION TYPE

• Tri-Clamp®

• DIN

• SMS

MAX FLOW RATE

• Full-Stroke Integral Piston – 802 lpm (212 gpm)

• PTFE Integral Piston – 742 lpm (196 gpm)

• EZ-Install TPE – 844 lpm (223 gpm)

• Full-Stroke PTFE – 749 lpm (198 gpm)

• Rubber – 844 lpm (223 gpm)

VALVE OPTIONS

• Ball

• Mushroom

• Flap

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• Ball - 19.1 mm (3/4")

• Mushroom - 9.5 mm (3/8")

• Flap - 60.3 mm (2-3/8")

MAX SUCTION LIFT CAPABILITY

• Full-Stroke Integral Piston – 3.8 m (12.5') Dry, 9.0 m (29.5') Wet

• PTFE Integral Piston – 3.3 m (10.8') Dry, 9.0 m (29.5') Wet

• EZ-Install TPE – 3.1 m (10.2') Dry, 9.0 m (29.5') Wet

• Full-Stroke PTFE – 4.0 m (13.1') Dry, 9.0 m (29.5') Wet

• Rubber – 4.4 m (14.5') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• Full-Stroke Integral Piston – 2.5 L (0.65 gal)

• PTFE Integral Piston – 1.9 L (0.51 gal)

• EZ-Install TPE – 2.5 L (0.67 gal)

• Full-Stroke PTFE – 2.3 L (0.62 gal)

• Rubber – 2.7 L (0.72 gal)

* 1 cycle = 2 strokes
