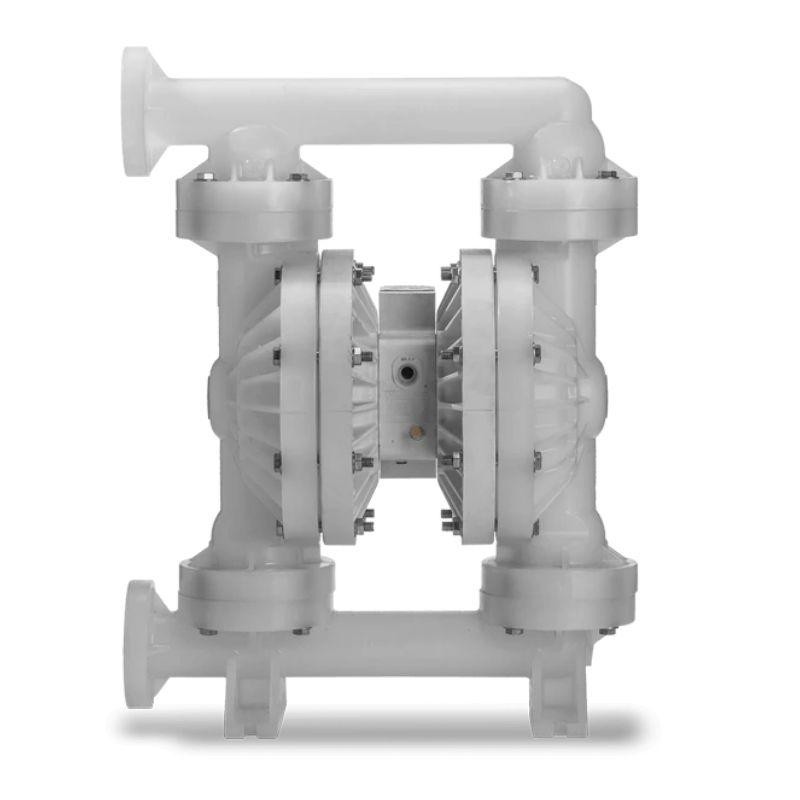

51 mm (2") Pro-Flo® SHIFT Series Bolted Plastic AODD Pump PS800

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS800 Plastic Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS800 Plastic Manual.

Air Inlet

• 3/4" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 709 lpm (187 gpm)

• EZ-Install TPE – 700 lpm (185 gpm)

• Full-Stroke PTFE – 654 lpm (173 gpm)

MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

6.4 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.9 m (19.3') Dry, 8.3 (27.2') Wet

• EZ-Install TPE – 5.9 m (19.3') Dry, 8.3 m (27.2) Wet

• Full-Stroke PTFE – 5.7 m (18.7') Dry, 8.3 m (27.2') Wet

DISPLACEMENT PER STROKE *

• Rubber – 2.5 L (0.66 gal)

• EZ-Install TPE – 2.6 L (0.68 gal)

• Full-Stroke PTFE – 2.4 L (0.63 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
