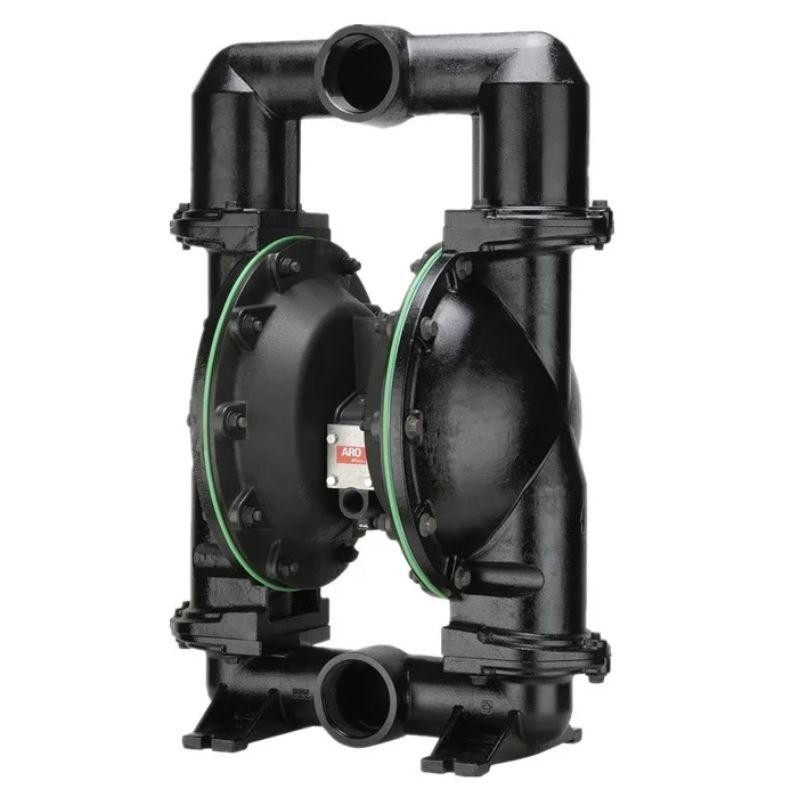

Ratio: 1:1 Maximum Flow: 237 GPM (897.0 LPM) Displacement per cycle: 2.65 Gallons (10.03 Liters) Air Inlet: (Female) 3/4 - 14 NPTF - 2 Fluid Inlet/Outlet: 3 - 8 NPTF - 2 Rp 3 (3 - 11 BSP parallel) Max. operating pressure: 10 PSI (0.69 bar) Suspended solids max. dia.: 3/8” (9.5 mm) Weight: lbs (kg) 6663X0-XXX-C 109.84 lbs (49.82 kgs) 6663X1-XXX-C 222.21 lbs (100.79 kgs) 6663X2-XXX-C 213.08 lbs (96.65 kgs) 6663XA-XXX-C 109.84 lbs (49.82 kgs) 6663XB-XXX-C 222.21 lbs (100.79 kgs) 6
Features
Industry leading flow rates with a maximum delivery of 237 GPM (897 LPM)
Ideal answer to big volume applications
Efficiency - Motor design delivers optimum air efficiency
Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
Versatility - Appropriate for various applications such as material transfer to portable dewatering
Environmentally Sound - Bolted construction for leak-free fluid handling
Serviceability - Easy access to ball checks and fluid caps for maintenance and repairs
Accessories
66312 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
66975 Cycle Counter Kit
637434 Air Section Service Kit
637433-XX Fluid Section Service Kit
Pump Casing Materials
Aluminum
Stainless Steel
Cast Iron
Diaphragm Materials
PTFE w/ Santoprene backer
Hytrel
Santoprene
Nitrile
