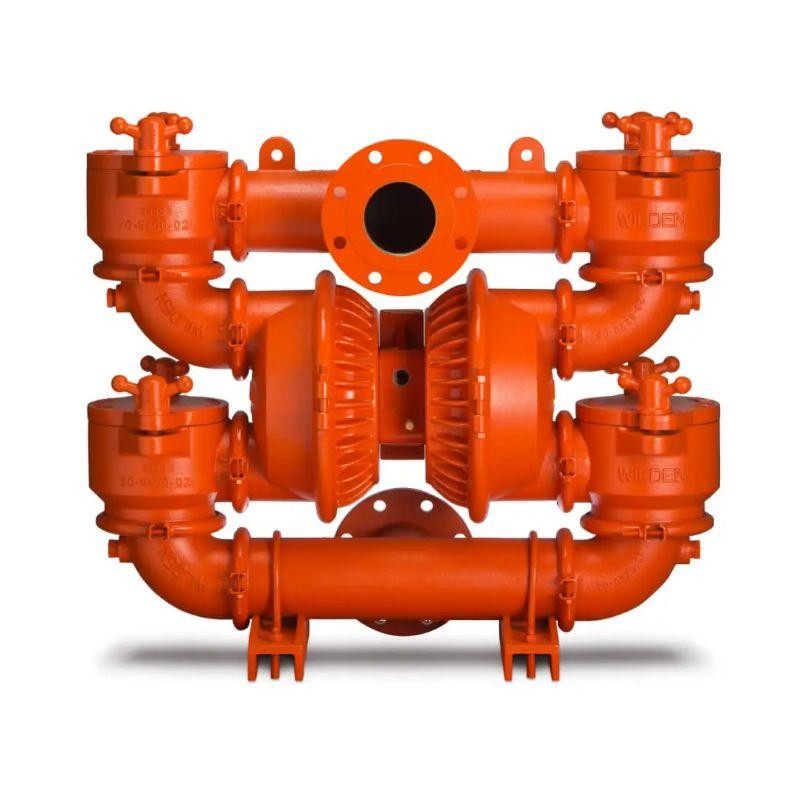

WILDEN 102 mm 4-inch Pro-Flo® SHIFT Series Clamped Metal AODD Pump 20-10085X PS20/WWAAA/Z PS/PU/PEP

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS20 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS20 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 102 mm (4")

LIQUID DISCHARGE

• 102 mm (4")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 1,048 lpm (277 gpm)

• EZ-Install TPE – 1,003 lpm (265 gpm)

• Full-Stroke PTFE – 953 lpm (252 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 35 mm (1-3/8")

MAX SUCTION LIFT CAPABILITY

• Rubber – 4.1 m (13.5') Dry, 8.6 m (28.4') Wet

• EZ-Install TPE – 4.4 m (14.4') Dry, 8.6 m (28.4') Wet

• Full-Stroke PTFE – 3.8 m (12.7') Dry, 8.6 m (28.4') Wet

DISPLACEMENT PER STROKE *

• Rubber – 4.5 L (1.2 gal)

• EZ-Install TPE – 4.4 L (1.16 gal)

• Full-Stroke PTFE – 4.2 L (1.13 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
