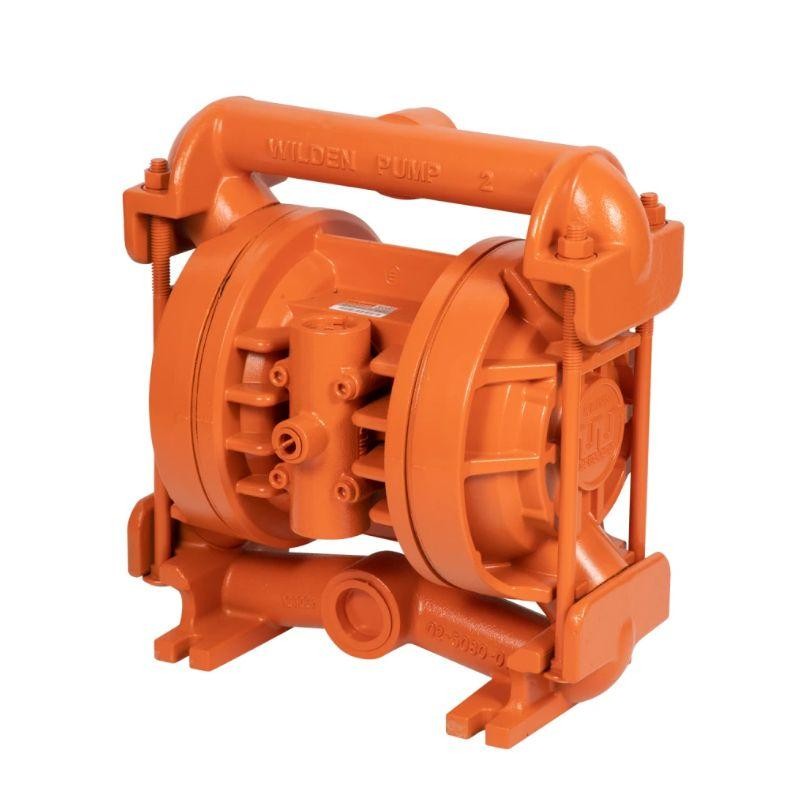

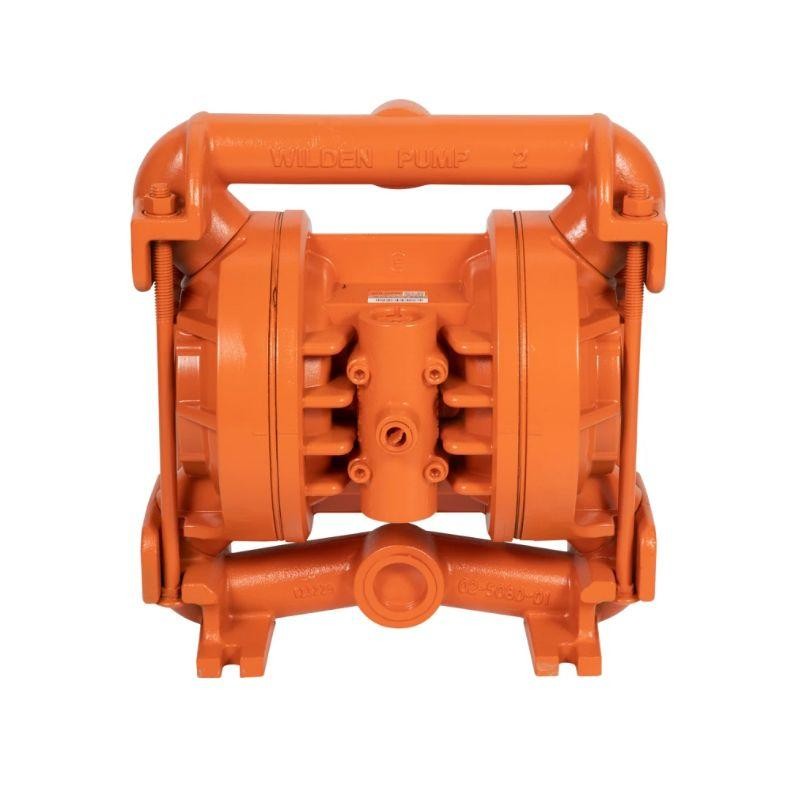

S02-0024 TZ2/SSAAB/VTS/VT/STF/0014 Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern. These pumps are easy to maintain, cost effective, and economical.
1/4" FNPT
25 mm (1")
19 mm (3/4")
NPT/BSPT (Threaded)
Rubber – 5.18m(17')Dry,9.45m(31')Wet
TPE – 5.18 m (17') Dry, 9.45 m (31') Wet
PTFE – 1.83 m (6') Dry, 9.5 m (31') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the T4 Metal Manual.
| MATERIAL | SHIP WEIGHT |
|---|---|
| Aluminum | 12 kg (26 lb) |
| Cast Iron | 16 kg (36 lb) |
| DESCRIPTION | MATERIAL |
|---|---|
| Center Section | Aluminum, Polypropylene |
| Air Valve | Brass |
| Air Chamber | Aluminum, Mild Steel, Polypropylene |
Note: Additional performance curves can be found in the T4 Metal Manual.
Other models are recommended：
| 02-10001 T2/AAAAB/BNS/BN/ABN |
| 02-10003 T2/AAAAB/BNS/BN/ABN/0014 |
| 02-10021 T2/AAAAB/NES/NE/ABN |
| 02-10022 T2/AAAAB/NES/NE/ABN/0014 |
| S02-0002 T2/AAAAB/TWS/TF/ATF/0014 |
| S02-0072 T2/AAAAB/VTS/VT/AVT/0014 |
| 02-10036 T2/AAAAB/WFS/WF/AWF/0014 |
| S02-0113 T2/SSAAB/TNU/TF/STF/0014 |
| S02-0063 T2/SSAAB/TWS/TF/STF/0014 |
| S02-0122 T2/SSAAB/VTS/TF/STF/0014 |
| 02-12589 TZ2/AAAAB/BNS/BN/ABN |
| 02-12590 TZ2/AAAAB/BNS/BN/ABN/0014 |
| S02-12951 TZ2/AAAAB/NES/NE/ABN |
| S02-12952 TZ2/AAAAB/NES/NE/ABN/0014 |
| S02-0003 TZ2/AAAAB/TNU/TF/ATF |
| S02-0025 TZ2/AAAAB/TNU/TF/ATF/0014 |
| S02-0027 TZ2/AAAAB/TNU/TF/STF/0014 |
| S02-0067 TZ2/AAAAB/TWS/TF/ATF/0014 |
| S02-0004 TZ2/AAAAB/WFS/WF/AWF |
| S02-0031 TZ2/AAAAB/WFS/WF/AWF/0014 |
| S02-0050 TZ2/PKAAB/EPS/EP/PTV/0400 |
| S02-0051 TZ2/PKAAB/PUS/PU/PTV/0400 |
| S02-0034 TZ2/PKAAB/TNU/TF/PTV/0400 |
| S02-0041 TZ2/PKAAB/TWS/TF/PTV/0400 |
| S02-0049 TZ2/PKAAB/VTS/VT/PTV/0400 |
| S02-0032 TZ2/PKAAB/WFS/WF/PWF/0400 |
| S02-0033 TZ2/PKAAB/WFS/WF/PWF/0404 |
| S02-0068 TZ2/SSAAB/BNS/BN/SBN/0014 |
| S02-0036 TZ2/SSAAB/TNU/TF/STF |
| S02-0037 TZ2/SSAAB/TNU/TF/STF/0014 |
| S02-0042 TZ2/SSAAB/TSU/TF/STF/0070 |
| S02-0039 TZ2/SSAAB/TWS/TF/STF/0014 |
| S02-0024 TZ2/SSAAB/VTS/VT/STF/0014 |
| 02-12630 TZ2/SSAAB/WFS/WF/SWF/0014 |
Rubber – 132 lpm (35 gpm)
TPE – 132 lpm (35 gpm)
PTFE – 95 lpm (25 gpm)
8.6 bar (125 psi)
3.2 mm (1/8'')
Rubber – 0.41 L (0.105 gal)
TPE – 0.41 L (0.105 gal)
PTFE – 0.19 L (0.05 gal)
