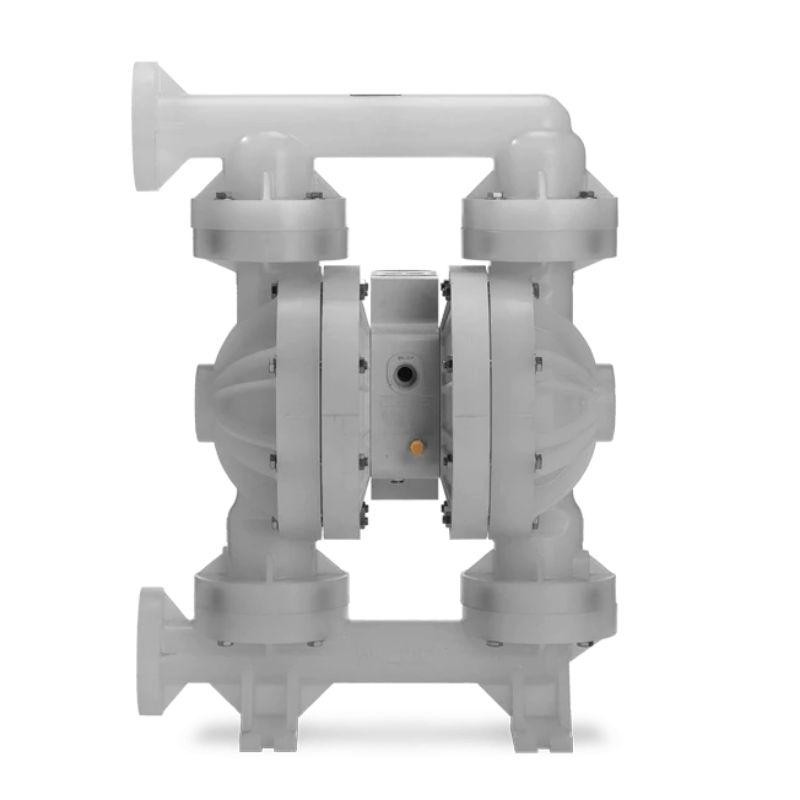

04-13323 PS400/KKPPP/VTS/VT/KTV/0504 The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.
3/4" FNPT
38 mm (1-1/2")
38 mm (1-1/2")
DIN/ANSI (Flanged)
Rubber – 5.4 m (17.6') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 4.0 m (13.1') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 5.6 m (18.4') Dry, 9.0 m (29.5') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the PS400 Plastic Manual.
Note: Additional performance curves can be found in the PS400 Plastic Manual.
3/4" FNPT
38 mm (1-1/2")
38 mm (1-1/2")
DIN/ANSI (Flanged)
Rubber – 458 lpm (121 gpm)
EZ-Install TPE – 447 lpm (118 gpm)
Full-Stroke PTFE – 447 lpm (118 gpm)
8.6 bar (125 psi)
6.4 mm (1/4')
Rubber – 5.4 m (17.6') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 4.0 m (13.1') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 5.6 m (18.4') Dry, 9.0 m (29.5') Wet
Rubber – 1.1 L (0.28 gal)
EZ-Install TPE – 1.1 L (0.28 gal)
Full-Stroke PTFE – 1.0 L (0.27 gal)
| Material | Ship Weight |
|---|---|
| Polypropylene | 28 kg (62 lb) |
| PVDF | 32 kg (70 lb) |
| Description | Material |
|---|---|
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Air Chamber | Polypropylene |
Rubber – 458 lpm (121 gpm)
EZ-Install TPE – 447 lpm (118 gpm)
Full-Stroke PTFE – 447 lpm (118 gpm)
8.6 bar (125 psi)
6.4 mm (1/4'')
Rubber – 1.1 L (0.28 gal)
EZ-Install TPE – 1.1 L (0.28 gal)
Full-Stroke PTFE – 1.0 L (0.27 gal)
