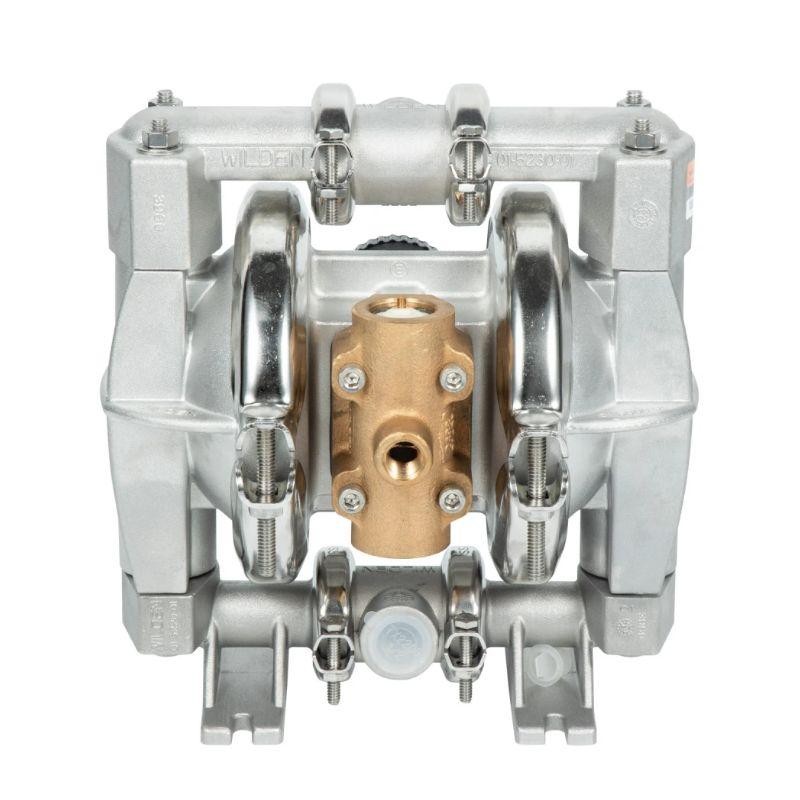

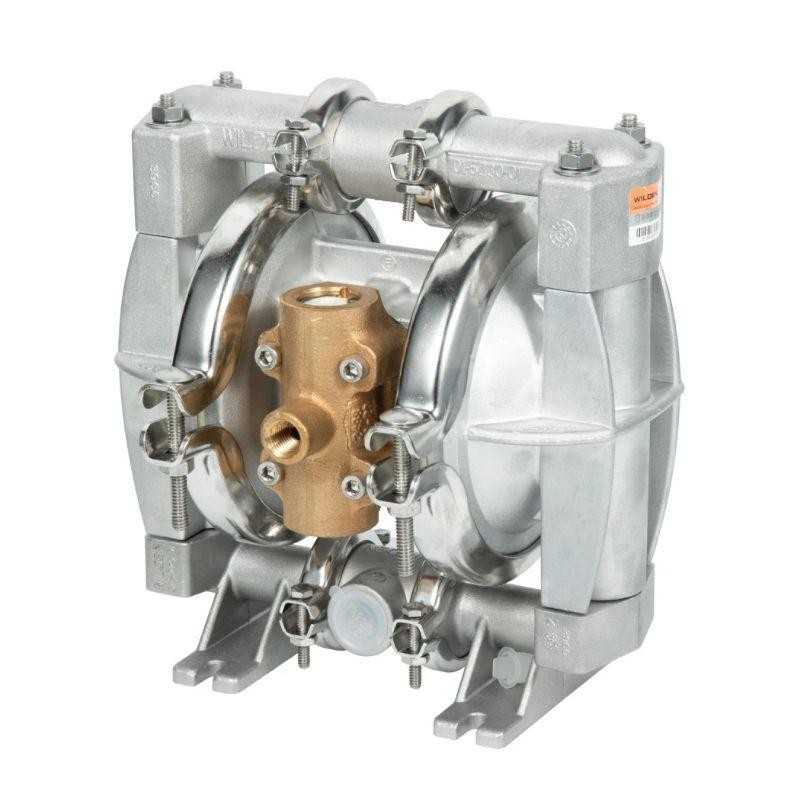

S01-0010 TZ1/AAAAB/WFS/WF/AWF/0014 Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern. These pumps are easy to maintain, cost effective, and economical.
1/4" FNPT
13 mm (1/2")
13 mm (1/2")
NPT/BSPT (Threaded)
Rubber – 4.3 m (14.2') Dry, 7.9(26') Wet
TPE – 4.2 m (13.8') Dry, 8.23 m (27')Wet
PTFE – 4.2 m (13.8') Dry,8.53m(28')Wet
Other models are recommended：
| 01-11094 | TZ1/AAAAB/BNS/BN/ABN |
| 01-11095 | TZ1/AAAAB/BNS/BN/ABN/0014 |
| S01-0002 | TZ1/AAAAB/TNU/TF/ATF |
| S01-0006 | TZ1/AAAAB/TNU/TF/ATF/0014 |
| S01-0003 | TZ1/AAAAB/WFS/WF/AWF |
| S01-0010 | TZ1/AAAAB/WFS/WF/AWF/0014 |
| S01-0012 | TZ1/PPAAB/TNU/TF/KTV |
| S01-0011 | TZ1/PPAAB/WFS/WF/KWF |
| S01-0016 | TZ1/SSAAB/FSS/FS/SFS/0070 |
| S01-0015 | TZ1/SSAAB/TNU/TF/STF |
| S01-0017 | TZ1/SSAAB/TNU/TF/STF/0014 |
| S01-0018 | TZ1/SSAAB/TNU/TF/STF/0070 |
| S01-0030 | T1/AAAAB/TNU/TF/ATF/0014 |
| 01-10001 | T1/AAYYB/BNS/BN/ABN |
| 01-10002 | T1/AAYYB/BNS/BN/ABN/0014 |
| 01-10008 | T1/AAYYB/TNU/TF/ATF |
| 01-10009 | T1/AAYYB/TNU/TF/ATF/0014 |
| 01-10010 | T1/AAYYB/TNU/TF/STF |
| 01-10014 | T1/AAYYB/WFS/WF/AWF |
Rubber – 60 lpm (15.8 gpm)
TPE – 59 lpm (15.6 gpm)
PTFE – 59 lpm (15.6 gpm)
8.6 bar (125 psi)
1.6 mm (1/16'')
Rubber – 0.11 L (0.03 gal)
TPE – 0.11 L (0.03 gal)
PTFE – 0.11L (0.03 gal)
