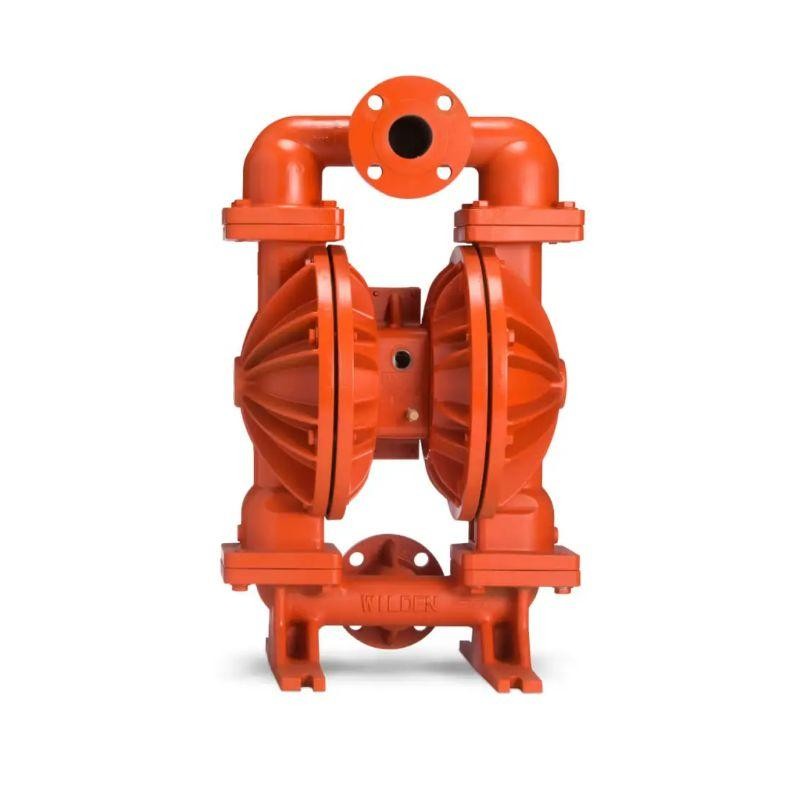

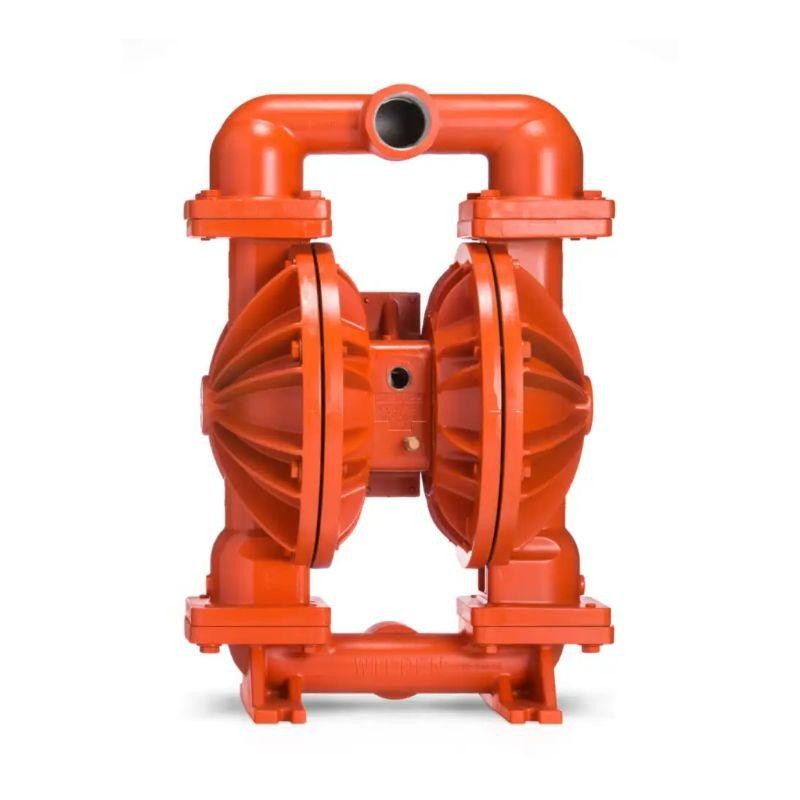

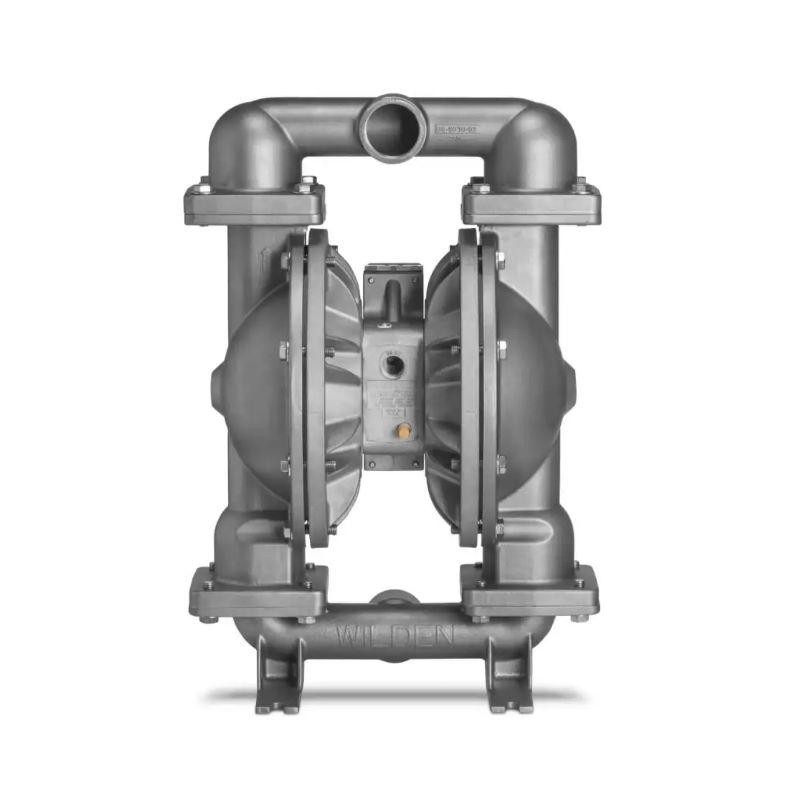

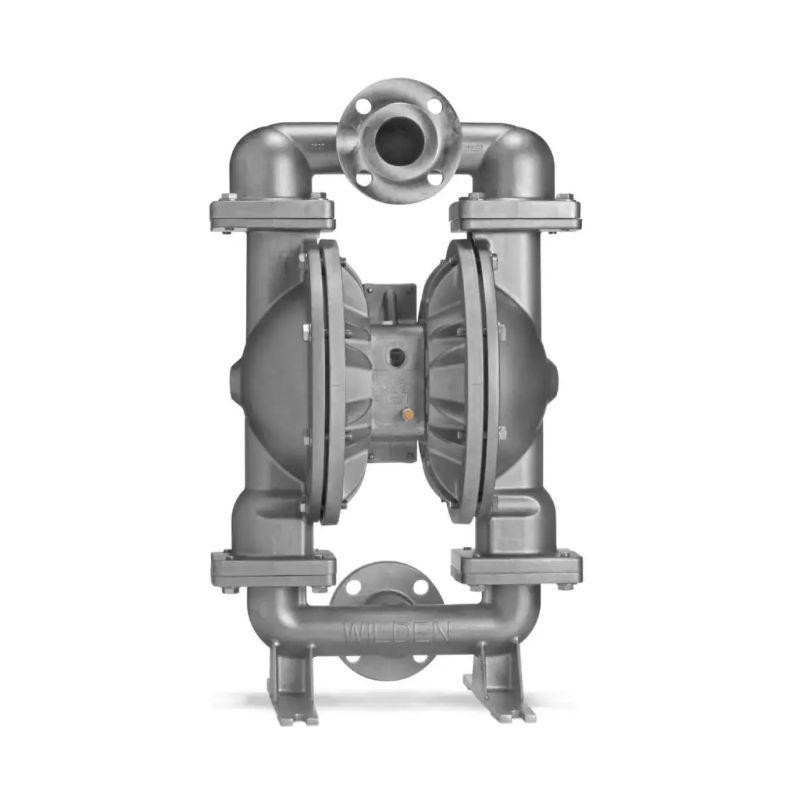

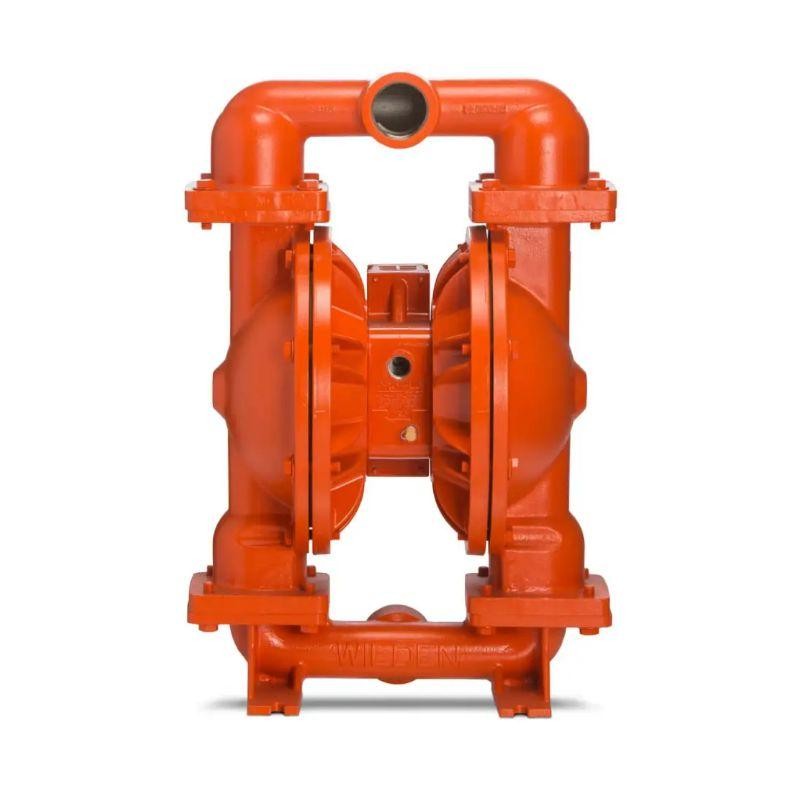

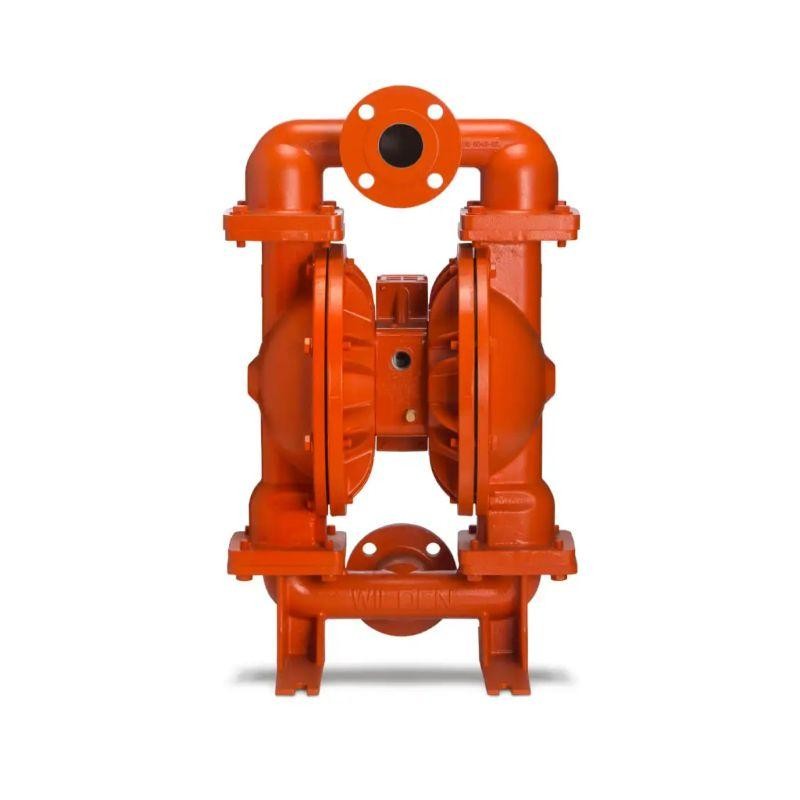

08-15019 PS830/SSSPP/TSS/TF/STF The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
3/4" FNPT
51 mm (2")
51 mm (2")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 7.1 m (23.3') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 7.0 m (23.1') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 6.6 m (21.8') Dry, 9.0 m (29.5') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the PS820/PS830 Metal Manual.
Note: Additional performance curves can be found in the PS820/PS830 Metal Manual.
3/4" FNPT
51 mm (2")
51 mm (2")
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Rubber – 685 lpm (181 gpm)
EZ-Install TPE – 668 lpm (176 gpm)
Full-Stroke PTFE – 655 lpm (173 gpm)
8.6 bar (125 psi)
6.4 mm (1/4")
Rubber – 7.1 m (23.3') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 7.0 m (23.1') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 6.6 m (21.8') Dry, 9.0 m (29.5') Wet
Rubber – 2.8 L (0.73 gal)
EZ-Install TPE – 2.6 L (0.70 gal)
Full-Stroke PTFE – 2.5 L (0.65 gal)
| MATERIAL | SHIP WEIGHT |
|---|---|
| Aluminum | 47 kg (104 lb) (PS820) 54 kg (118 lb) (PS830) |
| Stainless Steel | 73 kg (161 lb) (PS820) 81 kg (178 lb) (PS830) |
| Ductile Iron | 71 kg (156 lb) (PS820) 82 kg (181 lb) (PS830) |
| Alloy C | 91 kg (200 lb) (PS830) |
| DESCRIPTION | MATERIAL |
|---|---|
| Center Section | Aluminum, Polypropylene, Stainless Steel |
| Air Valve | Aluminum, Anodized Aluminum, Polypropylene, Stainless Steel |
| Air Chamber | Aluminum, Stainless Steel |
