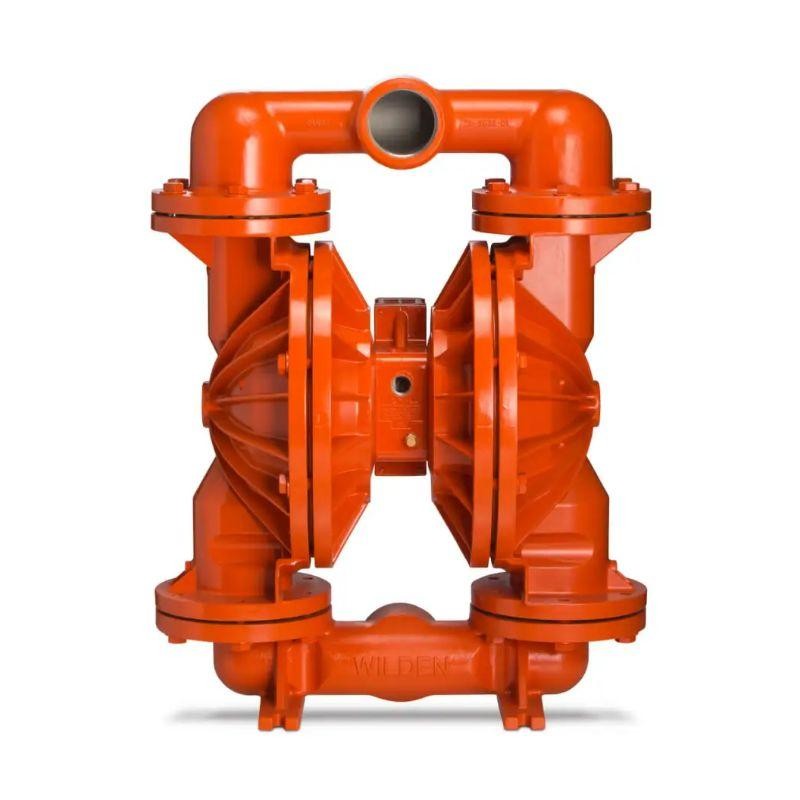

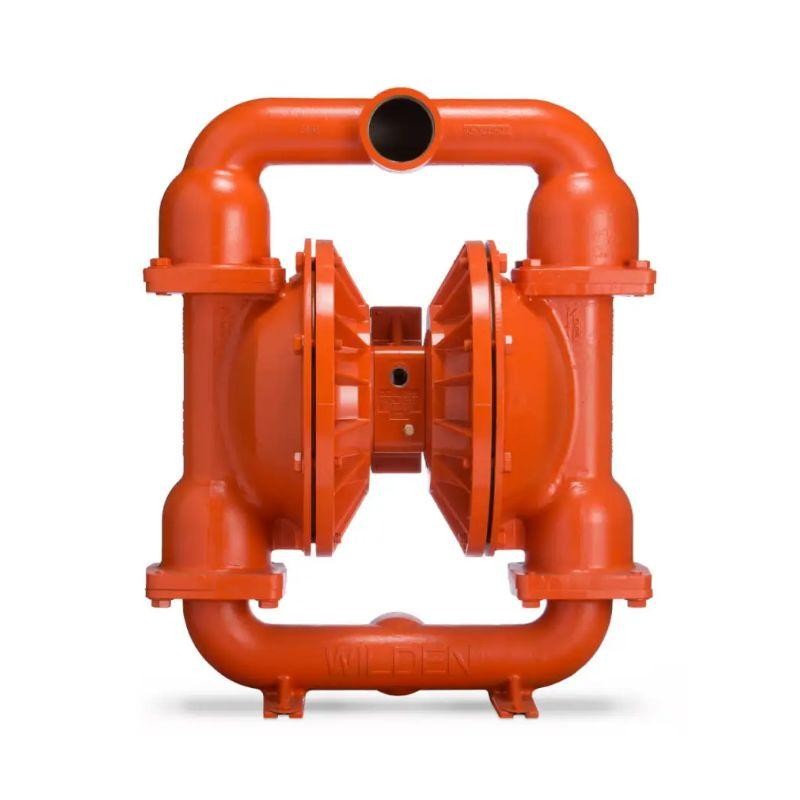

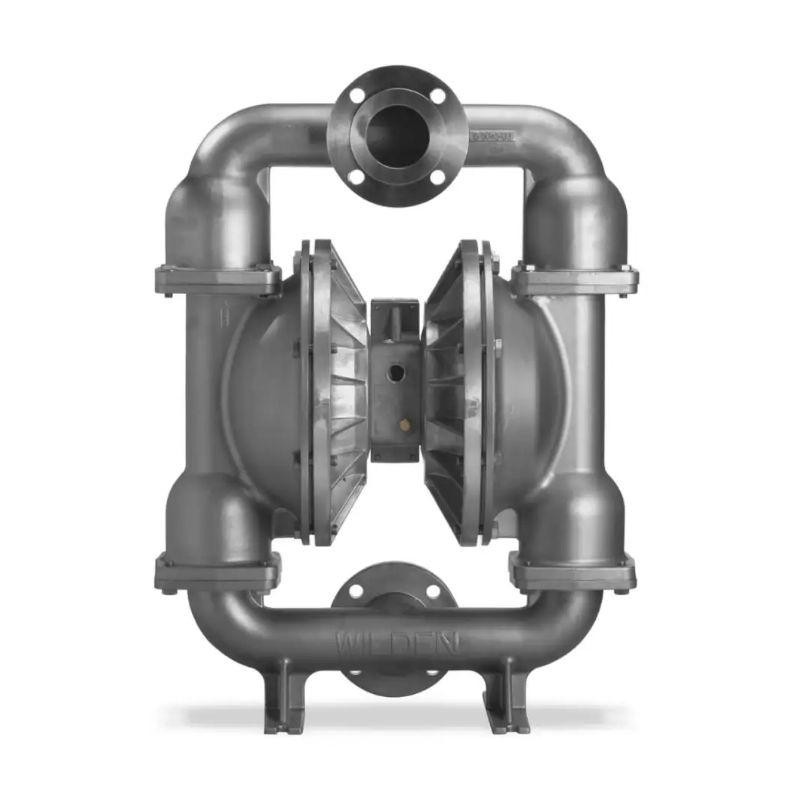

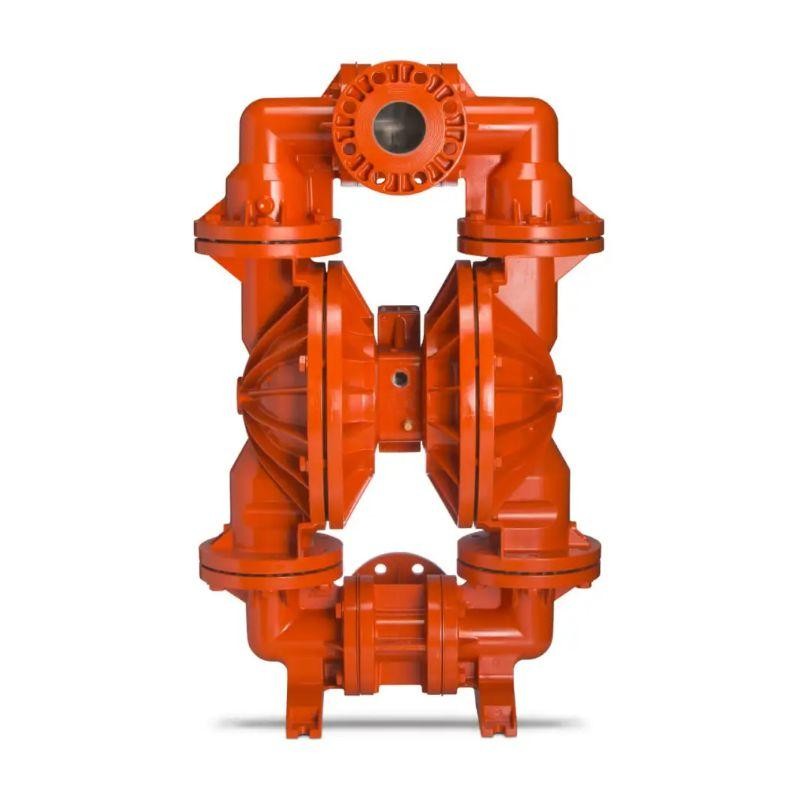

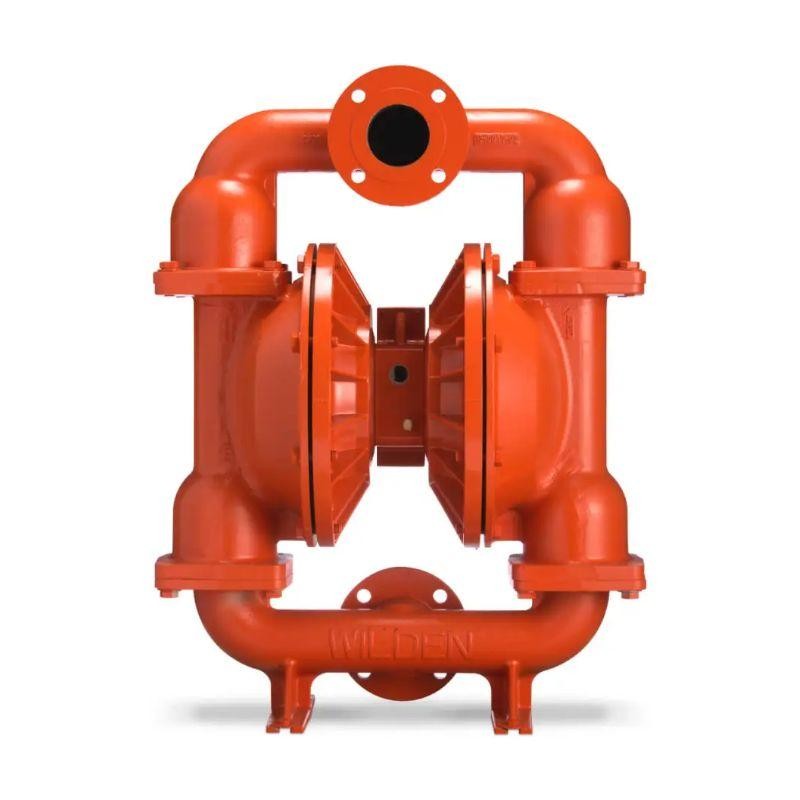

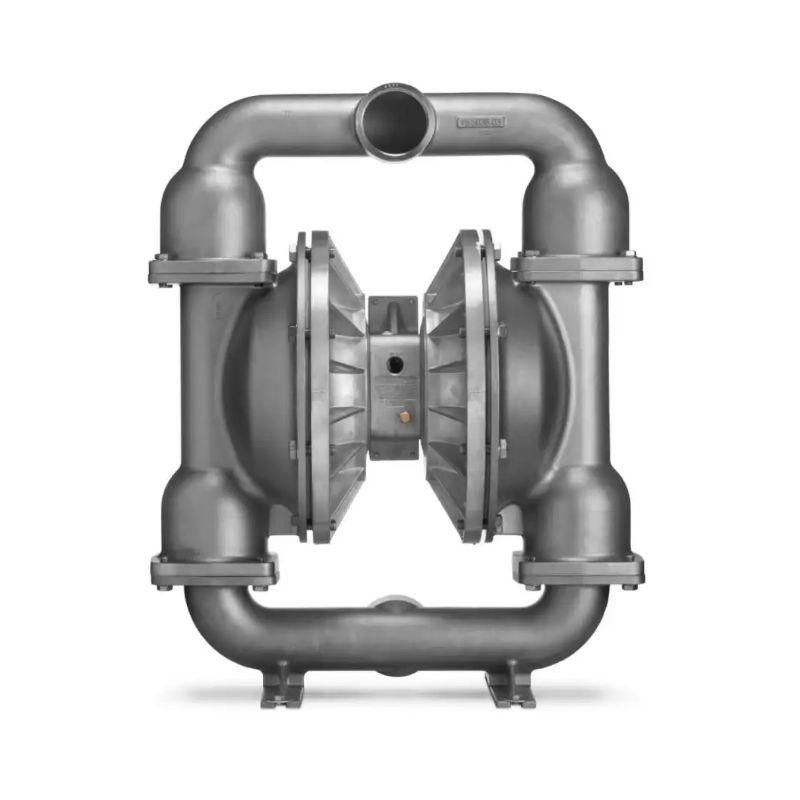

WILDEN PS1520 PS1530 Metal Diaphragm Pump 15-12366 XPS1530/AAAAA/ZGS/BN/BN

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P1520/PS1530 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS1520/PS1530 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 76 mm (3")

LIQUID DISCHARGE

• 76 mm (3")

CONNECTION TYPE

• NPT/BSPT (Threaded)

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 1026 lpm (271 gpm)

• EZ-Install TPE – 1026 lpm (271 gpm)

• Full-Stroke PTFE – 992 lpm (262 gpm)

• Full-Stroke PTFE (Ductile Iron) – 874 lpm (231 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 12.7 mm (1/2")

MAX SUCTION LIFT CAPABILITY

• Rubber – 7.2 m (23.8') Dry, 9.7 m (31.8’) Wet

• EZ-Install TPE – 6.4 m (21.1') Dry, 9.7 m (31.8’) Wet

• Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet

• Full-Stroke PTFE (Ductile Iron) – 5.9 m (19.5') Dry, 9.7 m (31.7') Wet

DISPLACEMENT PER STROKE *

• Rubber – 5.1 L (1.35 gal)

• EZ-Install TPE – 5.4 L (1.43 gal)

• Full-Stroke PTFE – 5.0 L (1.32 gal)

• Full-Stroke PTFE (Ductile Iron) – 4.8 L (1.26 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
