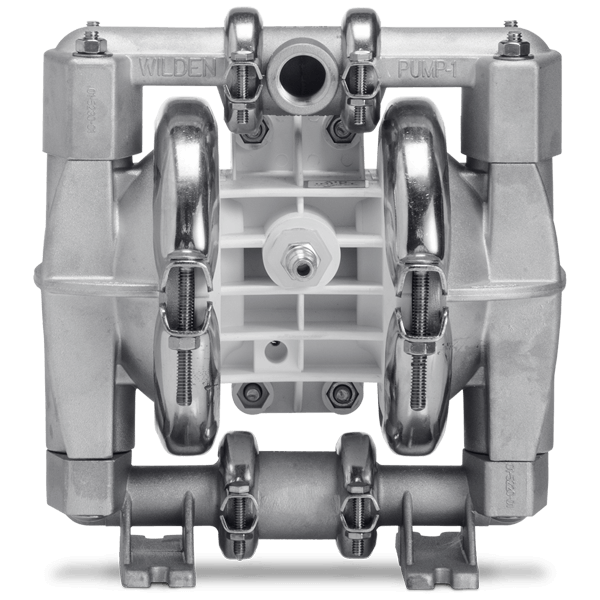

WILDEN metal 1/2 inch pneumatic diaphragm pump,01-2652 P1/AAPPP/TNU/TF/ATF,Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time.
1/4" FNPT
13 mm (1/2")
13 mm (1/2")
NPT/BSPT (Threaded)
Rubber –5.8 m (19.0') Dry, 9.5 m (31.0') Wet
TPE – 5.2 m (17.0') Dry, 9.5 m (31.0') Wet
PTFE – 4.9 m (16.0') Dry, 9.5 m (31.0') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the P1 Metal Manual.
Note: Additional performance curves can be found in the P1 Metal Manual.
1/4" FNPT
13 mm (1/2")
13 mm (1/2")
NPT/BSPT (Threaded)
Rubber – 58.7 lpm (15.5 gpm)
TPE – 58.3 lpm (15.4 gpm)
PTFE – 54.4 lpm (14.4 gpm)
8.6 bar (125 psi)
1.59 mm (1/16'')
Rubber –5.8 m (19.0') Dry, 9.5 m (31.0') Wet
TPE – 5.2 m (17.0') Dry, 9.5 m (31.0') Wet
PTFE – 4.9 m (16.0') Dry, 9.5 m (31.0') Wet
Rubber – 0.11 L (0.029 gal)
TPE – 0.11 L (0.029 gal)
PTFE – 0.09 L (0.025 gal)
| Material | Ship Weight |
|---|---|
| Aluminum | 6 kg (13 lb) |
| Stainless Steel | 9.2 kg (20 lb) |
| Description | Material |
|---|---|
| Center Section | Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal |
| Air Valve | Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal |
Rubber – 58.7 lpm (15.5 gpm)
TPE – 58.3 lpm (15.4 gpm)
PTFE – 54.4 lpm (14.4 gpm)
8.6 bar (125 psi)
1.59 mm (1/16'')
Rubber – 0.11 L (0.029 gal)
TPE – 0.11 L (0.029 gal)
PTFE – 0.09 L (0.025 gal)
