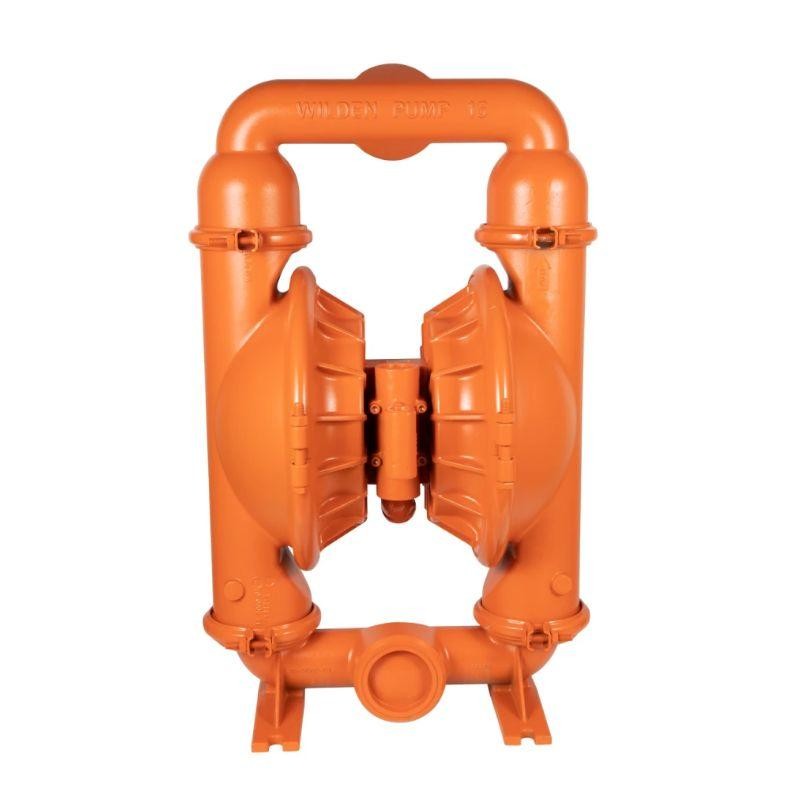

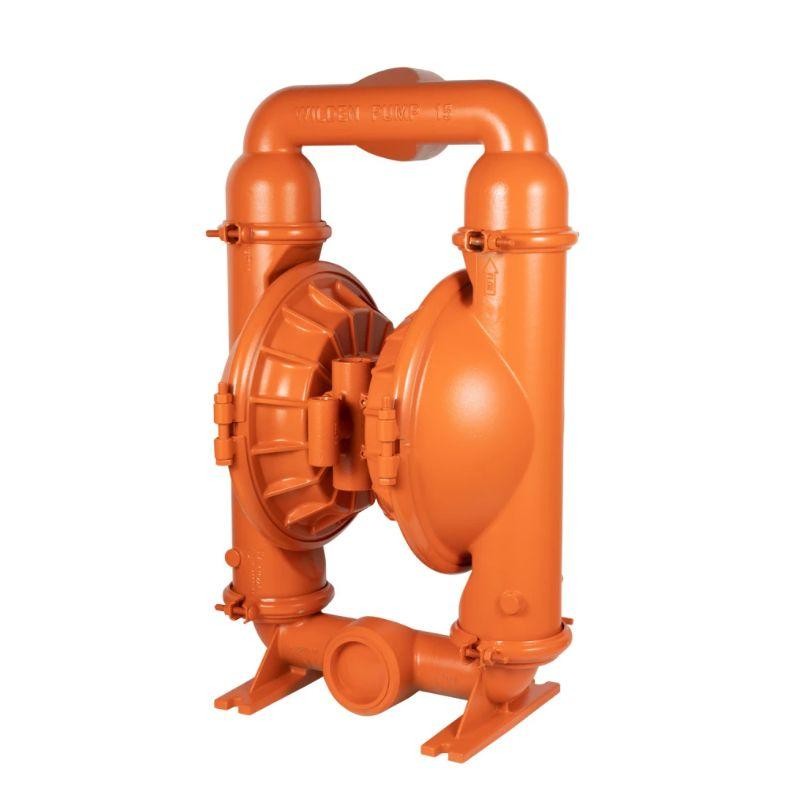

S15-0077 T15/AAAAB/ZWS/WF/WF/0014 Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern.
3/4" FNPT
76 mm (3")
76 mm (3")
NPT/BSPT (Threaded)
Rubber – 5.5 m(18') Dry9.45m(31') Wet
TPE – 3.49 m (13') Dry, 8.53 m (28') Wet
PTFE – 3.49 m (13') Dry, 8.53m (28')Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the T15 Metal Manual.
Note: Additional performance curves can be found in the T15 Metal Manual.
3/4" FNPT
76 mm (3")
76 mm (3")
NPT/BSPT (Threaded)
Rubber – 878 lpm (232 gpm)
TPE – 845 lpm (223 gpm)
PTFE – 704 lpm (186 gpm)
8.6 bar (125 psi)
10 mm (3/8'')
Rubber – 5.5 m (18') Dry, 9.45 m (31') Wet
TPE – 3.49 m (13') Dry, 8.53 m (28') Wet
PTFE – 3.49 m (13') Dry, 8.53 m (28') Wet
Rubber – 5.3 L (1.40 gal)
TPE – 5.4 L (1.43 gal)
PTFE – 3.6 L (0.95 gal)
| MATERIAL | SHIP WEIGHT |
|---|---|
| Aluminum | 53 kg (116 lb) |
| Cast Iron | 91 kg (200 lb) |
| DESCRIPTION | MATERIAL |
|---|---|
| Center Block | Aluminum, Polypropylene |
| Air Valve | Brass |
| Air Chamber | Aluminum |
Other models are recommended：
| Numbering | Description | Numbering | Description |
| 15-10001 | T15/AAAAB/BNS/BN/BN | 15-12393 | TZ15/AAAAB/BNS/BN/BN |
| 15-10003 | T15/AAAAB/BNS/BN/BN/0014 | 15-12394 | TZ15/AAAAB/BNS/BN/BN/0014 |
| 15-10005 | T15/AAAAB/BNS/BN/BN/0030 | 15-12395 | TZ15/AAAAB/NES/NE/NE |
| 15-11992 | T15/AAAAB/BNS/NE/NE | 15-12396 | TZ15/AAAAB/NES/NE/NE/0014 |
| 15-10022 | T15/AAAAB/BNU/BN/BN | S15-0032 | TZ15/AAAAB/TNU/TF/ATF |
| 15-10023 | T15/AAAAB/BNU/BN/BN/0014 | S15-0033 | TZ15/AAAAB/TNU/TF/ATF/0014 |
| 15-10206 | T15/AAAAB/BNU/BN/BN/0050 | S15-0065 | TZ15/AAAAB/VTS/VT/VT |
| 15-10852 | T15/AAAAB/BNU/BN/BN/0051 | S15-0067 | TZ15/AAAAB/ZWS/WF/WF |
| 15-10010 | T15/AAAAB/EPS/EP/EP | S15-0058 | TZ15/AAAAB/ZWS/WF/WF/0014 |
| 15-10011 | T15/AAAAB/NES/NE/NE | S15-0039 | TZ15/SSAAB/BNS/BN/BN/0014 |
| 15-10013 | T15/AAAAB/NES/NE/NE/0014 | S15-0034 | TZ15/SSAAB/TNU/TF/STF |
| 15-10015 | T15/AAAAB/NES/NE/NE/0030 | S15-0035 | TZ15/SSAAB/TNU/TF/STF/0014 |
| 15-10027 | T15/AAAAB/NEU/NE/NE | S15-0009 | TZ15/SSAAB/TWS/TF/STF/0014 |
| 15-10028 | T15/AAAAB/NEU/NE/NE/0014 | S15-0020 | TZ15/SSAAB/VTS/VT/VT/0014 |
| 15-10392 | T15/AAAAB/NEU/NE/NE/0050 | S15-0084 | TZ15/SSAAB/ZSS/FS/FS/0070 |
| 15-10676 | T15/AAAAB/NEU/NE/NE/0051 | S15-0080 | TZ15/SSAAB/ZWS/WF/WF/0014 |
| 15-12124 | T15/AAAAB/NEU/NE/NE/0118 | S15-0028 | TZ15/WWAAB/BNS/BN/BN |
| S15-0006 | T15/AAAAB/TWS/TF/ATF/0014 | S15-0008 | TZ15/WWAAB/BNS/BN/BN/0014 |
| 15-10033 | T15/AAAAB/VTS/VT/VT | S15-0026 | TZ15/WWAAB/NES/NE/NE |
| 15-10773 | T15/AAAAB/VTS/VT/VT/0014 | 15-12466 | TZ15/WWAAB/NES/NE/NE/0014 |
| S15-0077 | T15/AAAAB/ZWS/WF/WF/0014 | S15-0081 | TZ15/WWAAB/ZWS/WF/WF |
| 15-10051 | T15/AAAPB/BNS/BN/BN | S15-0082 | TZ15/WWAAB/ZWS/WF/WF/0014 |
| 15-10052 | T15/AAAPB/BNS/BN/BN/0014 | ||
| 15-10056 | T15/AAAPB/NES/NE/NE | ||
| 15-10058 | T15/AAAPB/NES/NE/NE/0014 | ||
| 15-10059 | T15/AAAPB/NES/NE/NE/0030 | ||
| 15-10080 | T15/AAAPB/VTS/VT/VT | ||
| 15-11201 | T15/AAAPB/VTS/VT/VT/0014 | ||
| S15-0076 | T15/AAAPB/ZWS/WF/WF/0014 | ||
| 15-10020 | T15/ASAAB/TNU/TF/ATF | ||
| 15-12170 | T15/ASAAB/TSU/TF/ATF | ||
| 15-10069 | T15/ASAPB/TNU/TF/STF | ||
| S15-0056 | T15/SSAAB/TWS/TF/STF/0014 | ||
| 15-11360 | T15/WSWPB/TNU/TF/MTF | ||
| 15-10269 | T15/WWAAB/BNS/BN/BN | ||
| 15-10411 | T15/WWAAB/BNS/BN/BN/0014 | ||
| 15-10134 | T15/WWAAB/NES/NE/NE | ||
| 15-10135 | T15/WWAAB/NES/NE/NE/0014 | ||
| 15-12138 | T15/WWAAB/NEU/NE/NE/0014 | ||
| 15-10141 | T15/WWAPB/BNS/BN/BN | ||
| 15-10142 | T15/WWAPB/BNS/BN/BN/0014 | ||
| 15-10146 | T15/WWAPB/NES/NE/NE | ||
| 15-12201 | T15/WWAPB/NEU/NE/NE/0118 | ||
| 15-10583 | T15/WWWAB/BNS/BN/BN | ||
| 15-10280 | T15/WWWPB/NEU/NE/NE/0046 |
Rubber – 878 lpm (232 gpm)
TPE – 845 lpm (223 gpm)
PTFE – 704 lpm (186 gpm)
8.6 bar (125 psi)
10 mm (3/8'')
Rubber – 5.3 L (1.40 gal)
TPE – 5.4 L (1.43 gal)
PTFE – 3.6 L (0.95 gal)
