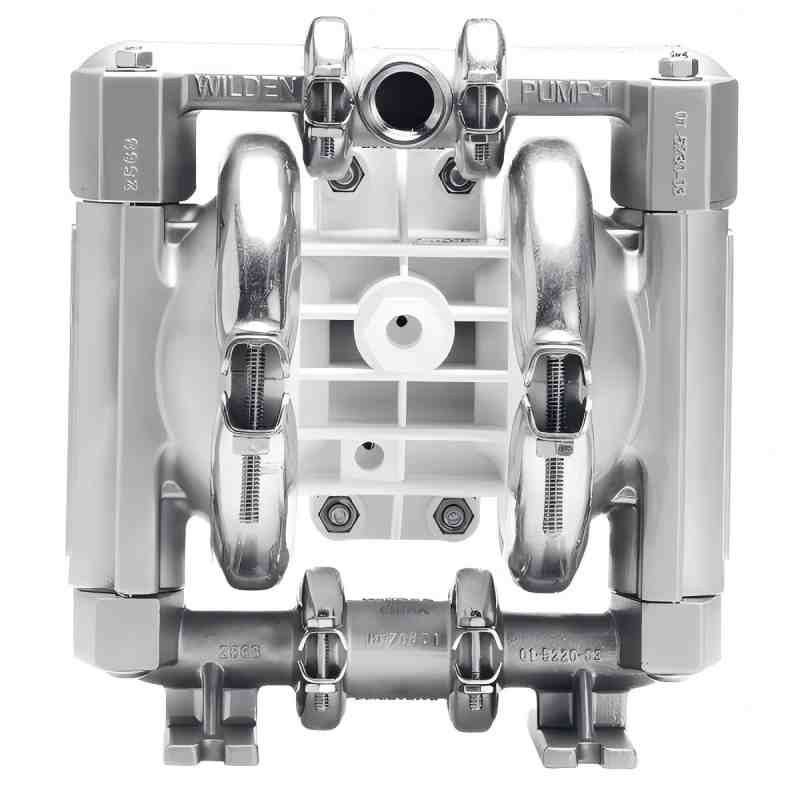

01-2663 Wilden Actuated Diaphragm Pump (AODD), Stainless Steel, 1/2” Model P1/SSPPP/TNU/TF/STF/0014

Item: 01-2663
Description: P1/SSPPP/TNU/TF/STF/0014

Key Specifications
Discharge Orientation: CENTER SWIVEL
Inlet Orientation: CENTER SWIVEL
Discharge Size (in.): 0.5
Default Max Diameter Solids (in.): 0.06
Max Flow Rate (gpm): 14.4
Inlet Size (in.): 0.5
Max Diameter Solids (in.): 0.06

PDF
Product Description:

WILDEN AODD Pump, Stainless Steel, 1/2" Pro-Flo®, Clamped, Threaded, w/ PTFE


Item: 01-2663

Description: P1/SSPPP/TNU/TF/STF/0014

Attributes for item 01-2663
Model (in.):
0.5
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
0.5
Inlet Orientation:
CENTER SWIVEL
Discharge Size (in.):
0.5
Discharge Orientation:
CENTER SWIVEL
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
PTFE
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
