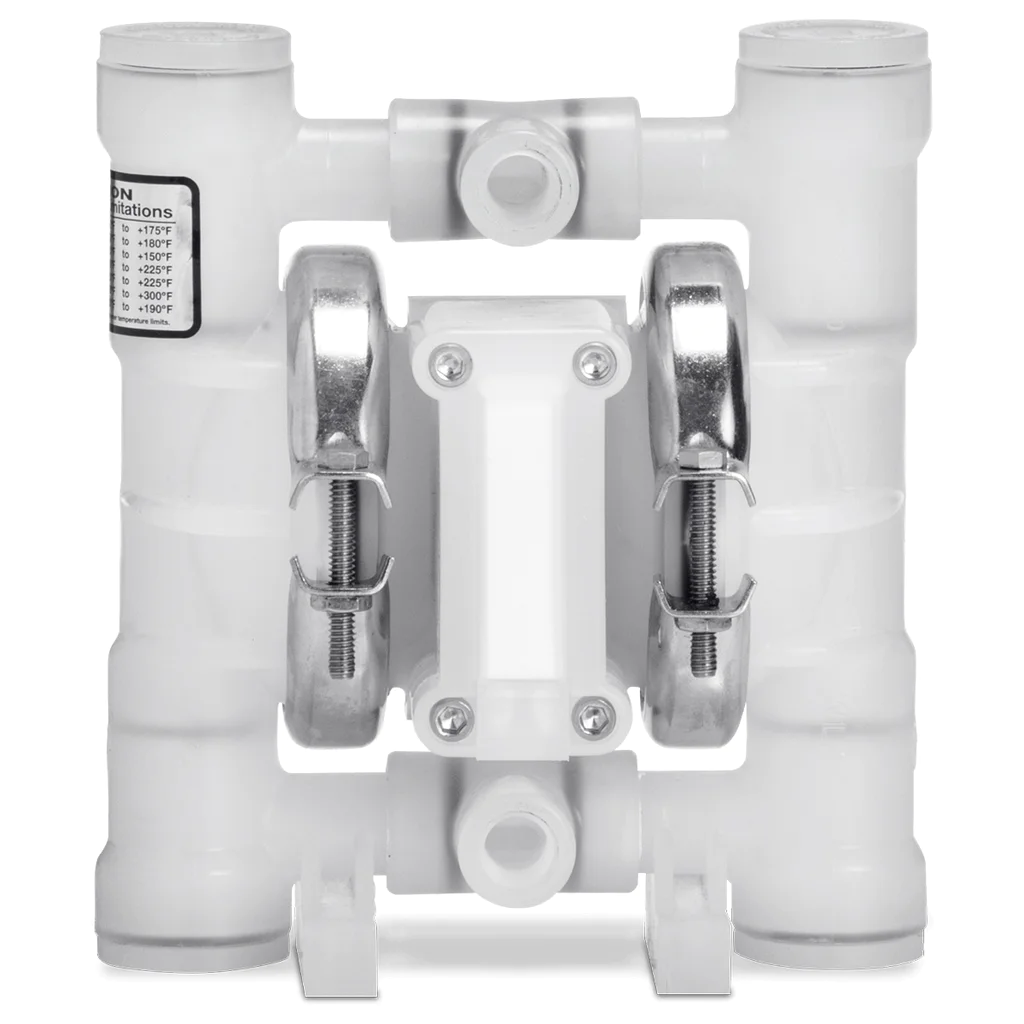

00-9616 Wilden Air-Operated Double-Diaphragm (AODD) Pump, Polypropylene, 1/4" P.025/PZPPP/TNL/TF/PTV

Item: 00-9616
Description: P.025/PZPPP/TNL/TF/PTV

Key Specifications
Discharge Orientation: CENTER SWIVEL
Inlet Orientation: CENTER SWIVEL
Discharge Size (in.): 0.25
Default Max Diameter Solids (in.): 0.02
Inlet Size (in.): 0.25
Max Flow Rate (gpm): 4.8
Max Diameter Solids (in.): 0.02

PDF
Product Description:

00-9616,WILDEN AODD Pump, Polypropylene, 1/4" Pro-Flo, Clamped, Threaded, w/ PTFE


Item: 00-9616

Description: P.025/PZPPP/TNL/TF/PTV


Attributes for item 00-9616
Model (in.):
0.25
Technical Construction:
CLAMPED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
PTFE
Diaphragm Design:
PTFE IPD
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
NPT
Inlet Size (in.):
0.25
Inlet Orientation:
CENTER SWIVEL
Discharge Size (in.):
0.25
Discharge Orientation:
CENTER SWIVEL
Outer Piston Materials:
NO OUTER PISTON
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
POLYPROPYLENE
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
