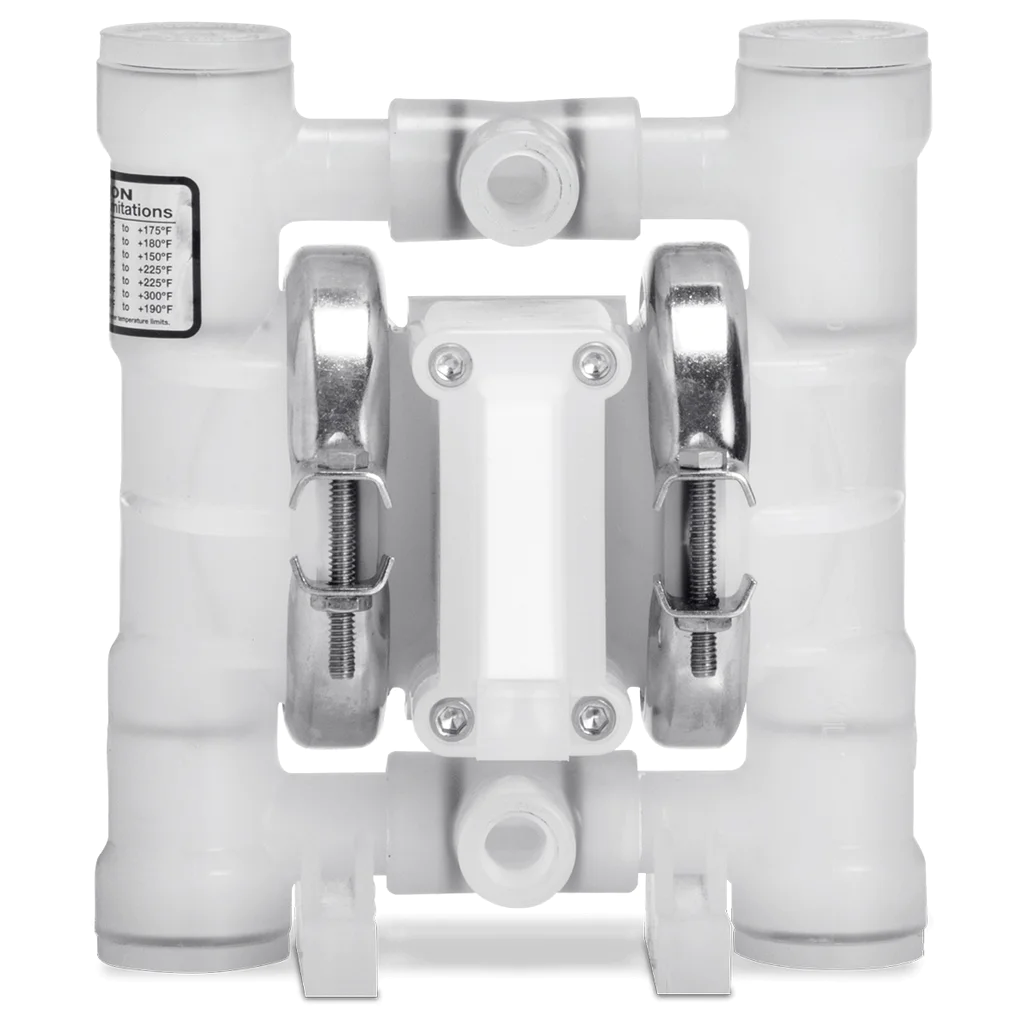

00-9604 WILDEN AODD Pump, PVDF material, 1/4-inch Pro-Flo Series, Model P.025/KZPPP/TNL/TF/KTV

Item: 00-9604
Description: P.025/KZPPP/TNL/TF/KTV

Key Specifications
Discharge Orientation: CENTER SWIVEL
Inlet Orientation: CENTER SWIVEL
Discharge Size (in.): 0.25
Default Max Diameter Solids (in.): 0.02
Inlet Size (in.): 0.25
Max Flow Rate (gpm): 4.8
Max Diameter Solids (in.): 0.02

PDF

Product Description:

00-9604, WILDEN AODD Pump, PVDF, 1/4" Pro-Flo, Clamped, Threaded, w/ PTFE

Item: 00-9604

Description: P.025/KZPPP/TNL/TF/KTV

Attributes for item 00-9604

Model (in.):

0.25

Technical Construction:

CLAMPED

Wetted Path Material:

PVDF

Diaphragm Material:

PTFE

Diaphragm Design:

PTFE IPD

Diaphragm Stroke:

Reduced-Stroke

Connection Standard:

NPT

Inlet Size (in.):

0.25

Inlet Orientation:

CENTER SWIVEL

Discharge Size (in.):

0.25

Discharge Orientation:

CENTER SWIVEL

Outer Piston Materials:

NO OUTER PISTON

Air Side Material:

POLYPROPYLENE

Valve Material:

PTFE

Valve Type:

VALVE BALL

Valve Seat MATERIAL:

PVDF

O Rings Gasket Material:

PTFE-ENCAPSULATED FKM

Hardware Material:

STAINLESS STEEL

Muffler Material:

Plastic

Self Priming:

YES
