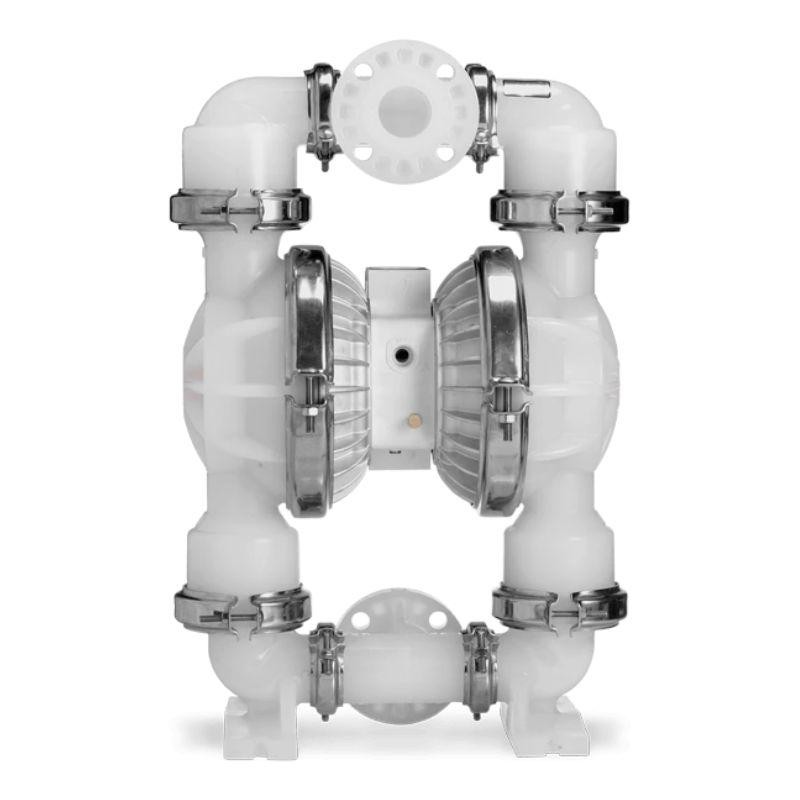

51 mm (2") Pro-Flo® SHIFT Series Clamped Plastic AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS8 Plastic Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS8 Plastic Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 643 lpm (170 gpm)

• EZ-Install TPE – 643 lpm (170 gpm)

• Full-Stroke PTFE – 597 lpm (158 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAXIMUM DIAMETER SOLIDS

• 6.4 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 6.6 m (21.8') Dry, 8.3 m (27.2') Wet

• EZ-Install TPE – 6.2 m (20.2') Dry, 8.3 m (27.2') Wet

• Full-Stroke PTFE – 6.1 m (19.9') Dry, 8.3 m (27.2') Wet

DISPLACEMENT PER STROKE *

• Rubber – 2.8 L (0.75 gal)

• EZ-Install TPE – 2.7 L (0.72 gal)

• Full-Stroke PTFE – 2.6 L (0.69 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
