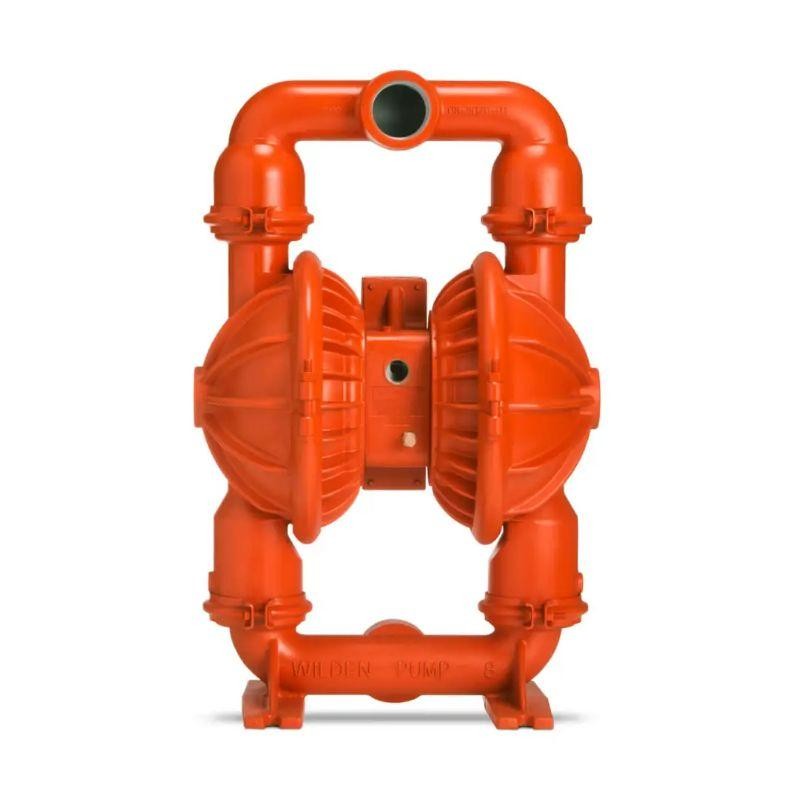

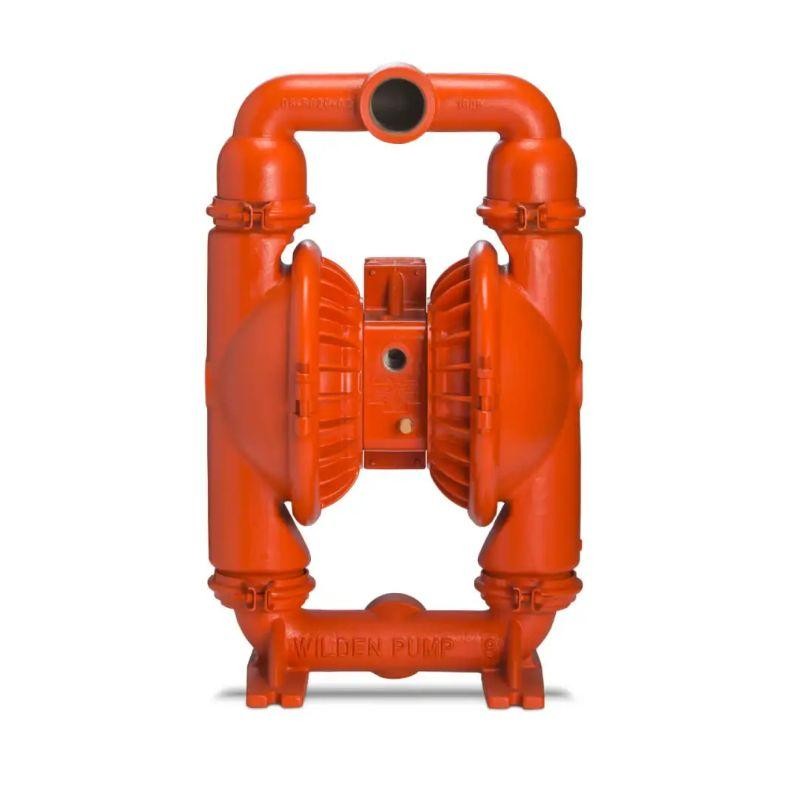

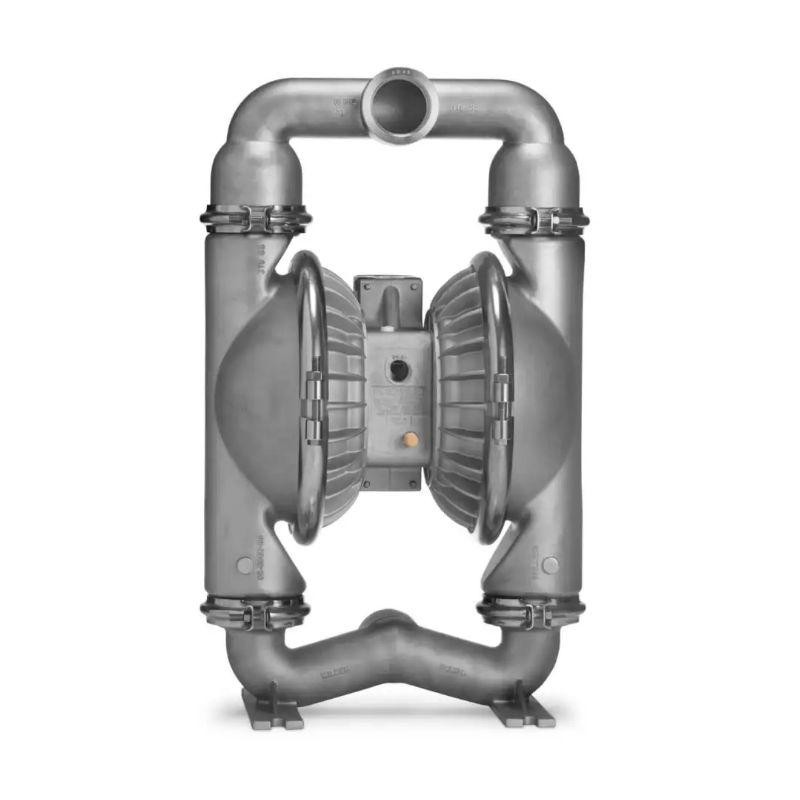

51 mm (2") Pro-Flo® SHIFT Series Clamped Metal AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS8 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the PS8 Metal Manual.

Air Inlet

• 3/4" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 700 lpm (185 gpm)

• EZ-Install TPE – 719 lpm (190 gpm)

• Full-Stroke PTFE – 723 lpm (191 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 bar (1/4")

MAX SUCTION LIFT CAPABILITY

• Rubber – 7.2 m (23.8') Dry, 9.0 m (29.5') Wet

• EZ-Install TPE – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet

• Full-Stroke PTFE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet

DISPLACEMENT PER STROKE *

• Rubber – 2.6 L (0.69 gal)

• EZ-Install TPE – 2.6 L (0.69 gal)

• PTFE Full-Stroke – 2.4 L (0.64 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
