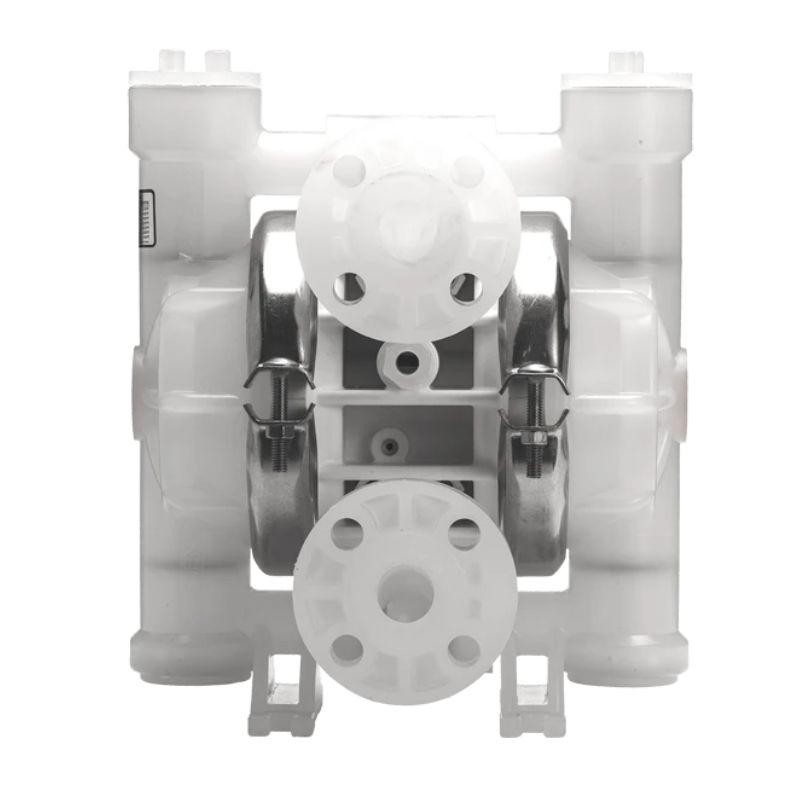

25 mm (1") Pro-Flo® Series Clamped Plastic AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P2 Plastic Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P2 Plastic Manual.

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 25 mm (1")

LIQUID DISCHARGE

• 25 mm (1")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 140 lpm (37 gpm)

• TPE – 140 lpm (37 gpm)

• Full-Stroke PTFE – 139 lpm (36.8 gpm)

• Reduced-Stroke PTFE – 132 lpm (35 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 3.2 mm (1/8'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.5 m (18.0') Dry, 8.8 m (29.0') Wet

• TPE – 5.5 m (18.0') Dry, 8.8 m (29.0') Wet

• Full-Stroke PTFE – 4.1 m (13.6') Dry, 8.6 m (28.4') Wet

• Reduced-Stroke PTFE – 3.4 m (11') Dry, 8.8 m (29') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.31 L (0.08 gal)

• TPE – 0.39 L (0.10 gal)

• Full-Stroke PTFE – 0.6 L (0.15 gal)

• Reduced-Stroke PTFE – 0.23 L (0.06 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-wetted Housings
