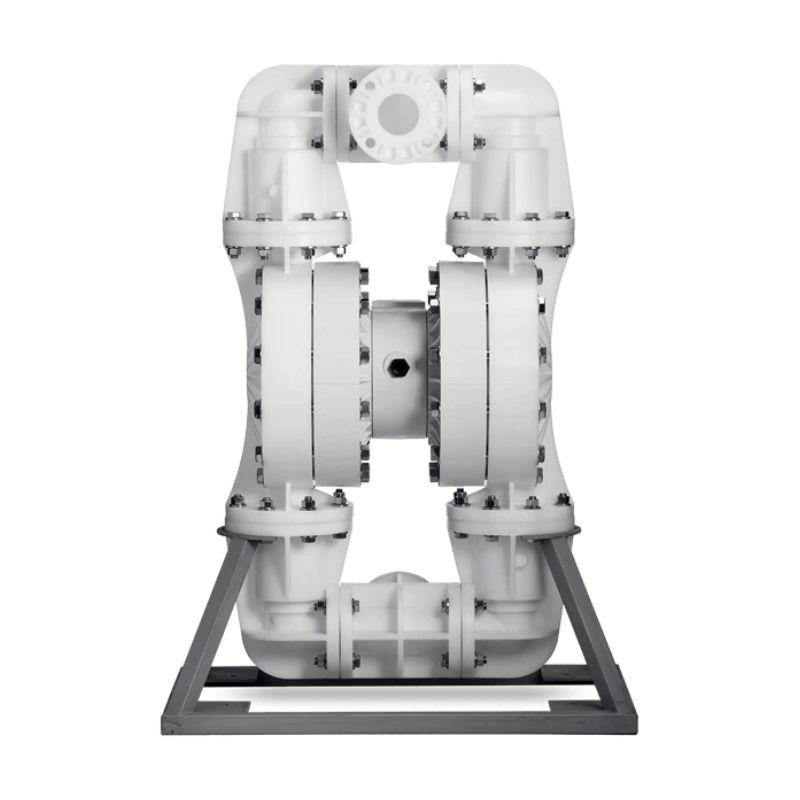

76 mm (3") Pro-Flo® Series Bolted Plastic AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P1500 Plastic Manual.

Flow Curve – Full-Stroke PFTE-Fitted

Note: Additional performance curves can be found in the P1500 Plastic Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 76 mm (3")

LIQUID DISCHARGE

• 76 mm (3")

CONNECTION TYPE

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Full-Stroke PTFE – 878 lpm (232 gpm)

• Reduced-Stroke PTFE – 784 lpm (207 gpm)

MAX PRESSURE

• 6.9 bar (100 psi) for polypropylene pumps

• 8.6 bar (125 psi) for PVDF pumps

MAX DIAMETER SOLIDS

• 12.7 mm (1/2'')

MAX SUCTION LIFT CAPABILITY

• Full-Stroke PTFE – 5.5 m (18.2') Dry, 8.6 m (28.4') Wet

• Reduced-Stroke PTFE – 3.63 m (12') Dry, 8.6 m (28.4') Wet

DISPLACEMENT PER STROKE *

• Full-Stroke PTFE – 5.8 L (1.52 gal)

• Reduced-Stroke PTFE – 3.75 L (0.99 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-wetted Housings
