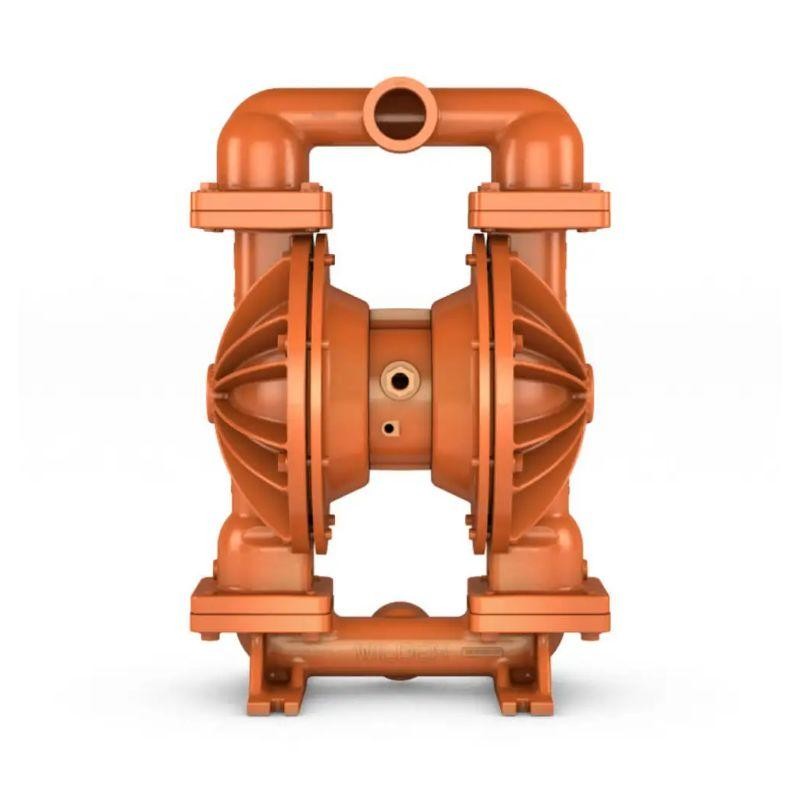

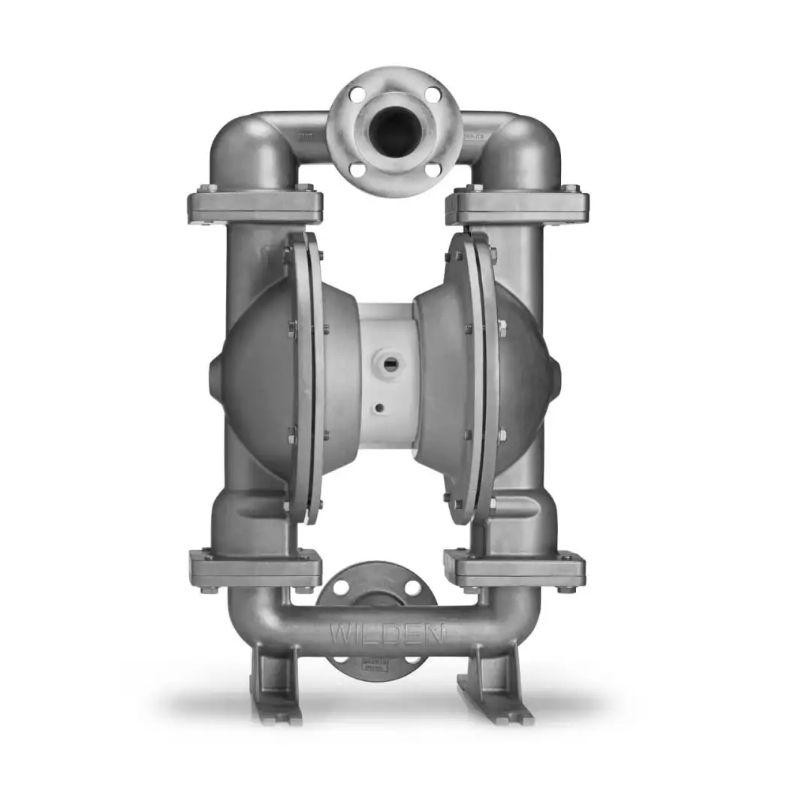

51mm 2"Pro-Flo®-Series Bolted Metal AODD Pump

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P820/P830 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Note: Additional performance curves can be found in the P820/P830 Metal Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

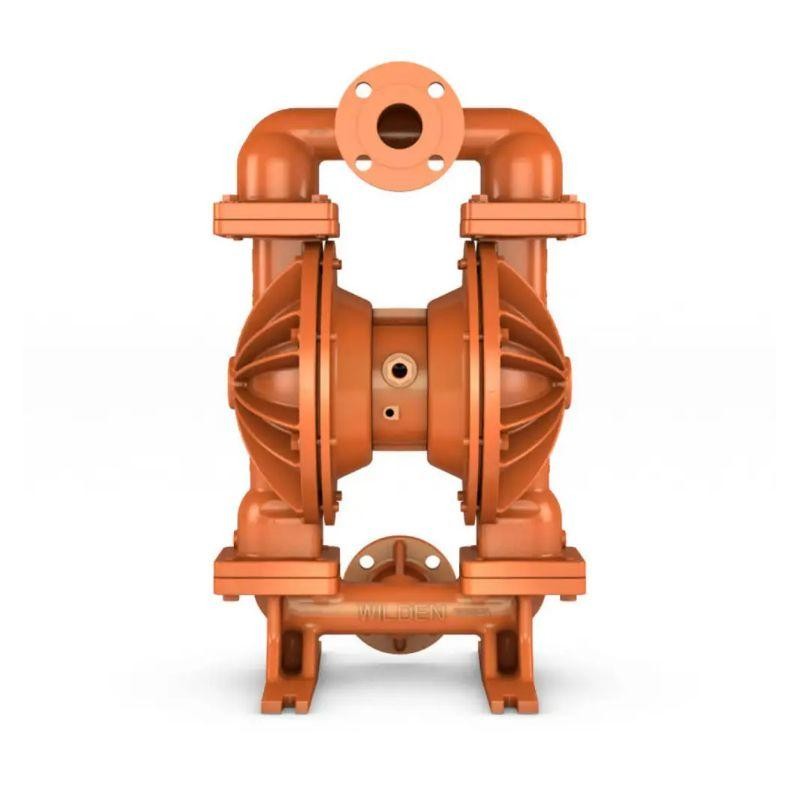

• DIN/ANSI (Flanged)

MAX FLOW RATE

• Rubber – 609 lpm (161 gpm)

• EZ-Install TPE – 605 lpm (160 gpm)

• Full-Stroke PTFE – 590 lpm (156 gpm)

• Reduced-Stroke PTFE – 492 lpm (130 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4")

MAX SUCTION LIFT CAPABILITY

• Rubber – 7.4 m (24.3') Dry, 9.0 m (29.5') Wet

• EZ-Install TPE – 6.7 m (21.9') Dry, 9.0 m (29.5') Wet

• Full-Stroke PTFE – 6.9 m (22.6') Dry, 9.0 m (29.5') Wet

• Reduced-Stroke PTFE – 4.6 m (15.1') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE *

• Rubber –2.8 L (0.74 gal)

• EZ-Install TPE – 2.5 L (0.67 gal)

• Full-Stroke PTFE – 2.5 L (0.65 gal)

• Reduced-Stroke PTFE – 1.7 L (0.46 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
