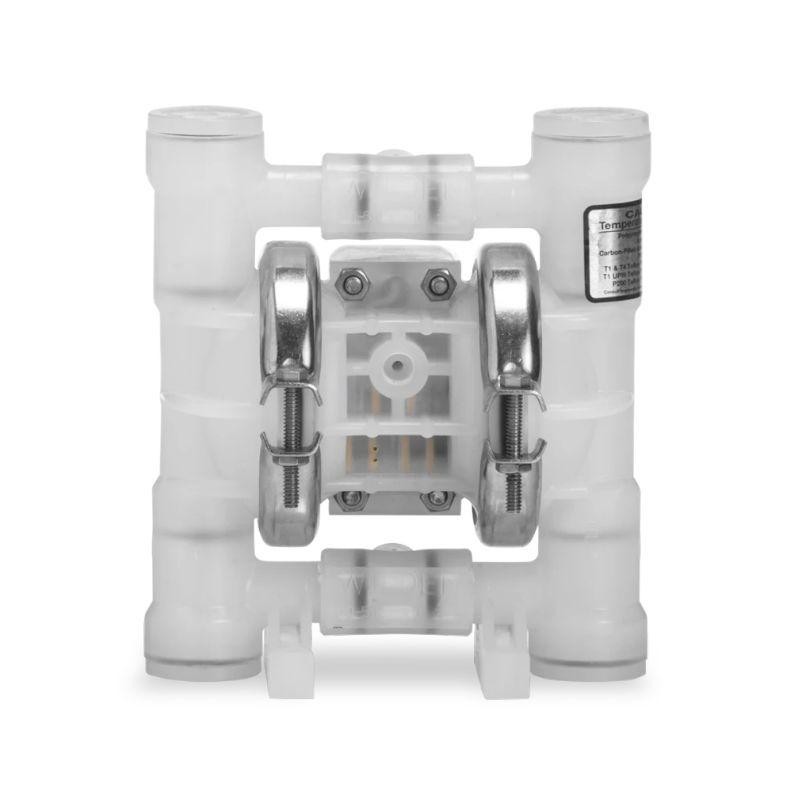

Pro-Flo®-Series-Clamped-Plastic-AODD-Pump 6-mm-1/4

Performance and Specifications

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P.025 Plastic Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the P.025 Plastic Manual.

AIR INLET

• 1/8" FNPT

LIQUID INLET

• 6 mm (1/4")

LIQUID DISCHARGE

• 6 mm (1/4")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 18.1 lpm (4.8 gpm)

• TPE – 18.1 lpm (4.8 gpm)

• PTFE – 18.1 lpm (4.8 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 0.4 mm (1/64")

MAX SUCTION LIFT CAPABILITY

• Rubber – 2.74 m (9') Dry, 9.45 m (31') Wet

• TPE – 3.05 m (10') Dry, 8.84 m (29') Wet

• PTFE – 2.44 m (8') Dry, 8.84 m (29') Wet

DISPLACEMENT PER STROKE *

• Rubber – 0.02 L (0.005 gal)

• TPE – 0.02 L (0.005 gal)

• PTFE – 0.02 L (0.005 gal)

* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
