Item: 00-10056 Model: P.025/PZPPP/TNL/TF/KTV/0502 Series: Pro-Flo Wetted material: Polypropylene Diaphragm material: PTFE Fluid connections: 1/4-inch NPT Inlet / discharge: Center swivel / Center swivel
WILDEN / PRO-FLO SERIES

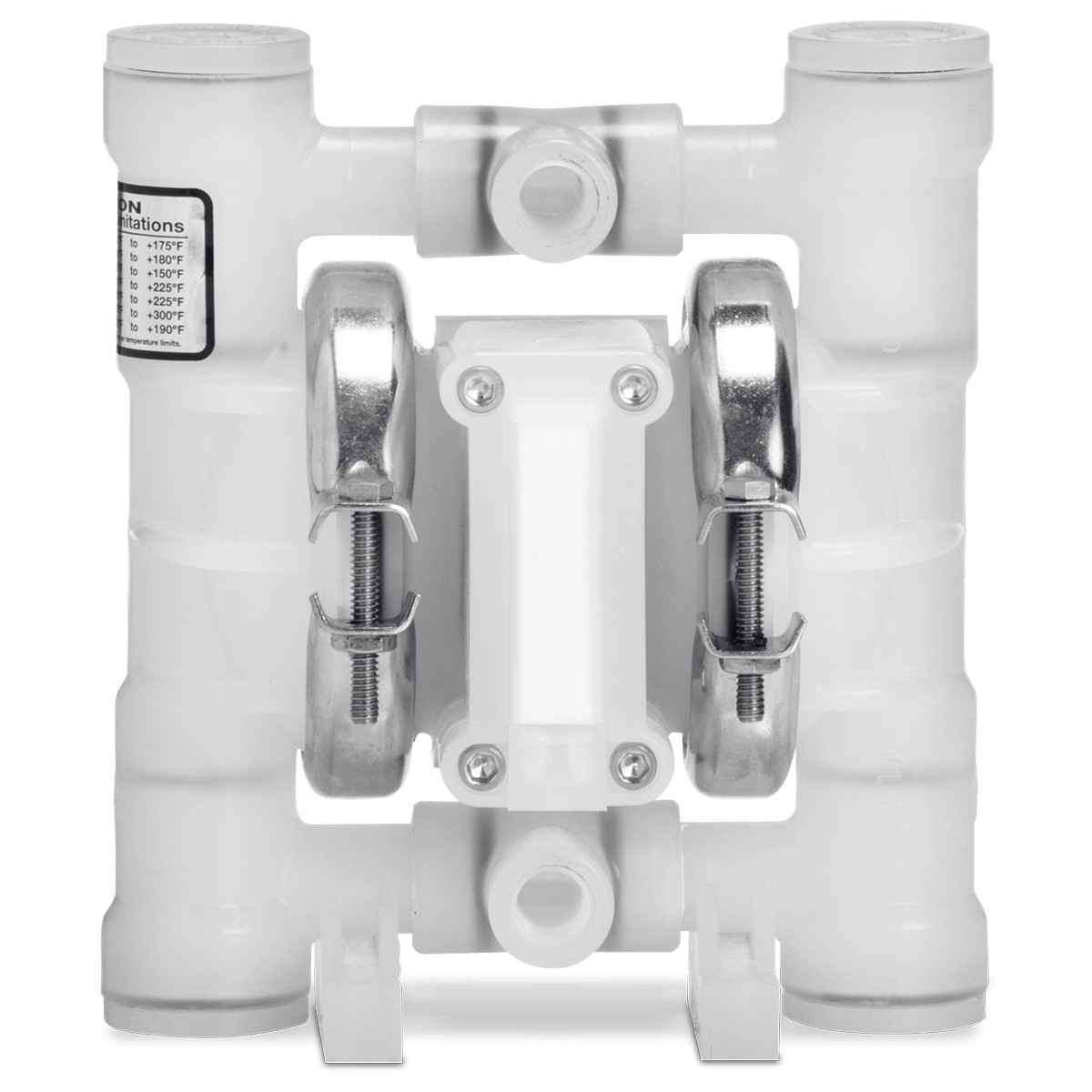

This Pro-Flo air-operated double-diaphragm pump combines a polypropylene wetted housing with PTFE diaphragms. The clamped configuration has 1/4-inch NPT fluid connections and a polypropylene air-side assembly.
Complete model
P.025/PZPPP/TNL/TF/KTV/0502
FLUID CONNECTION
1/4-inch NPT
MAXIMUM FLOW
≈ 18.2 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 00-10056 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1/4 in (0.25 in) |
| Construction | Clamped |
| Wetted housing | Polypropylene |
| Diaphragm material | PTFE |
| Diaphragm design / stroke | PTFE IPD / Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | PVDF |
| Connection standard | NPT threaded |
| Inlet / discharge orientation | Center swivel / Center swivel |
| Maximum flow | 4.8 US gpm (approximately 18.2 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.02 in (approximately 0.5 mm) |
| Listed dry suction lift | 8 ft (approximately 2.44 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 3.4 lb (approximately 1.54 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | No outer piston |
| Wetted O-rings / gaskets | PTFE-ENCAPSULATED FKM |
| Muffler | Plastic |
| Inlet / discharge size | 1/4 in / 1/4 in |
| Thread standard | NPT |
| Construction detail code | 0502 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
Quote 00-10056 and P.025/PZPPP/TNL/TF/KTV/0502, together with quantity, fluid, operating temperature, required flow and discharge pressure. For individual replacement parts, include the component number and a clear pump nameplate photo.
