Item: 00-10210 Model: XPS25/FKJJJ/TWS/TF/KVT Series: Pro-Flo Shift Wetted material: Conductive PVDF Diaphragm material: PTFE Nominal fluid port size: 1/4-inch Construction: Bolted
WILDEN / PRO-FLO SHIFT SERIES

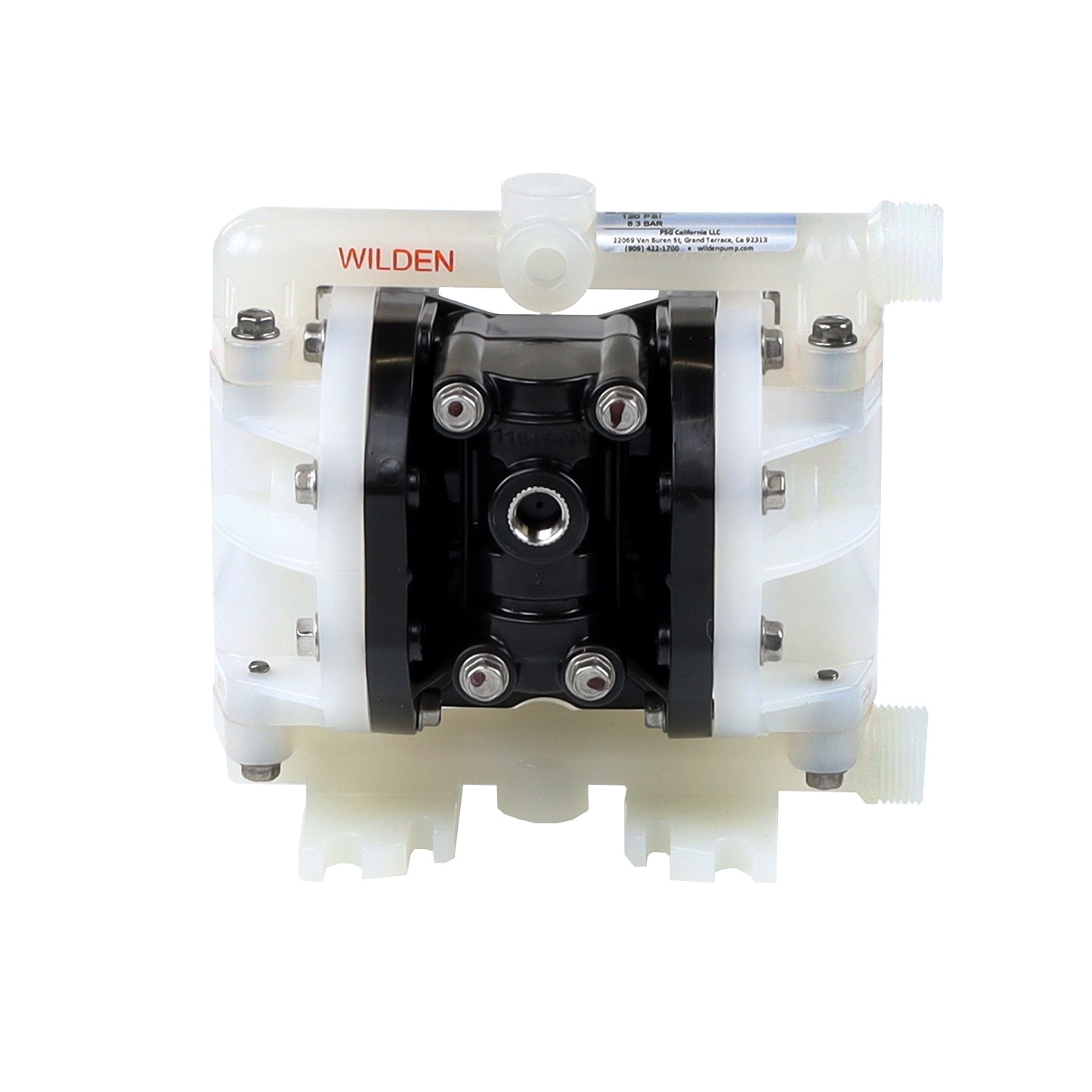

This 1/4-inch Pro-Flo Shift air-operated double-diaphragm pump uses conductive pvdf wetted housing and PTFE diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
XPS25/FKJJJ/TWS/TF/KVT
FLUID PORT SIZE
1/4-inch
| Brand / item number | WILDEN / 00-10210 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1/4 in |
| Construction | Bolted |
| Wetted housing | Conductive PVDF |
| Diaphragm material | PTFE |
| Check ball material | PTFE |
| Valve seat material | PVDF |
| Outer pistons | PVDF |
|---|---|
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
Quote 00-10210 and XPS25/FKJJJ/TWS/TF/KVT, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
