Item: 00-10211 Model: XPS25/JPJJJ/ZWS/WF/PTF Series: Pro-Flo Shift Wetted material: Conductive polypropylene Diaphragm material: Santoprene® Nominal fluid port size: 1/4-inch Construction: Bolted
WILDEN / PRO-FLO SHIFT SERIES

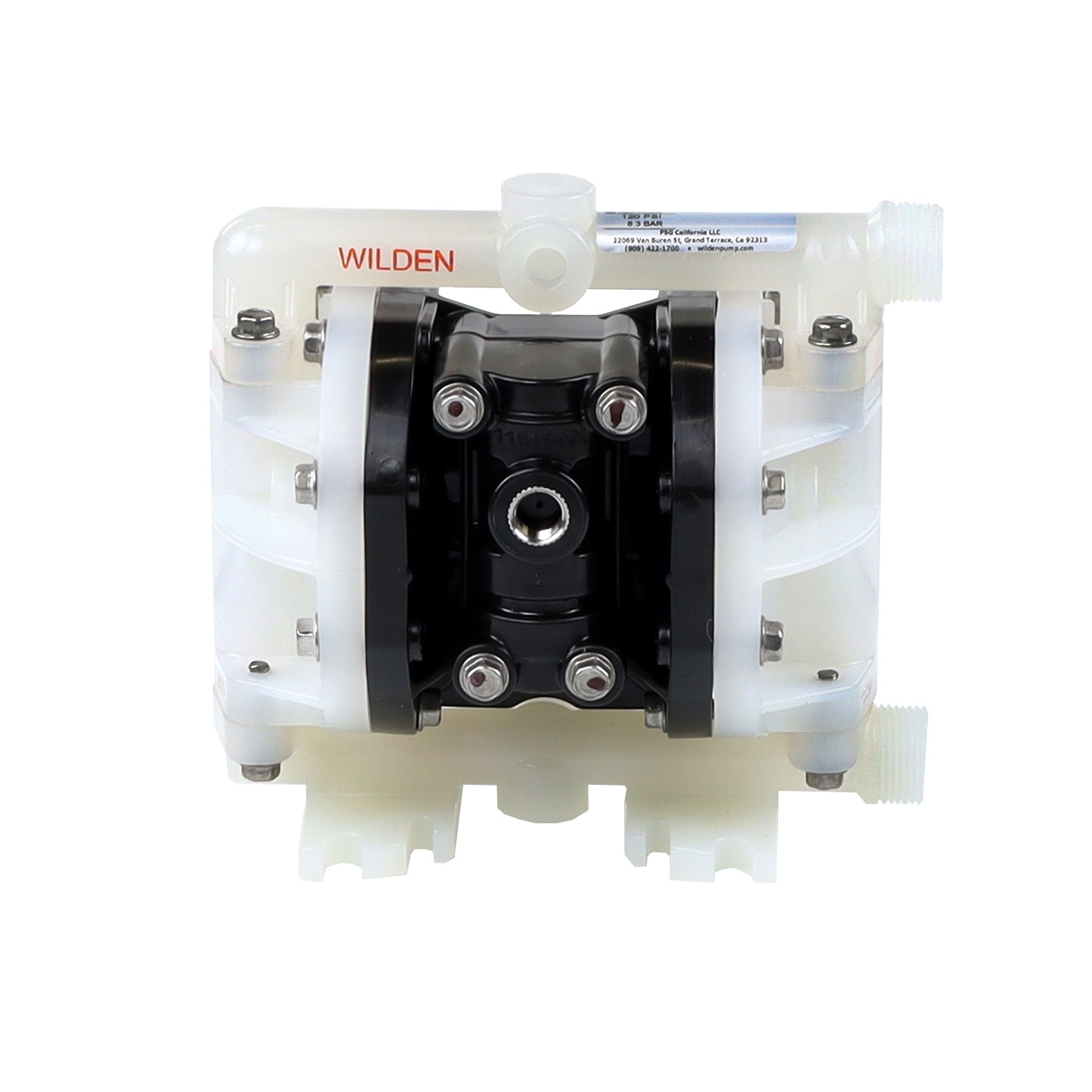

This 1/4-inch Pro-Flo Shift air-operated double-diaphragm pump uses conductive polypropylene wetted housing and Santoprene® diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
XPS25/JPJJJ/ZWS/WF/PTF
FLUID PORT SIZE
1/4-inch
| Brand / item number | WILDEN / 00-10211 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1/4 in |
| Construction | Bolted |
| Wetted housing | Conductive polypropylene |
| Diaphragm material | Santoprene® |
| Check ball material | Santoprene® |
| Valve seat material | Polypropylene |
| Outer pistons | Polypropylene |
|---|---|
| Wetted O-rings / gaskets | PTFE |
Quote 00-10211 and XPS25/JPJJJ/ZWS/WF/PTF, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
