Item: 00-9931 Model: A.025P/KKPPP/WFS/TF/KTV/0151 Series: Accu-Flo Wetted material: PVDF Diaphragm material: Santoprene® Fluid connections: 1/4-inch NPT Inlet / discharge: Center swivel / Center swivel
WILDEN / ACCU-FLO SERIES

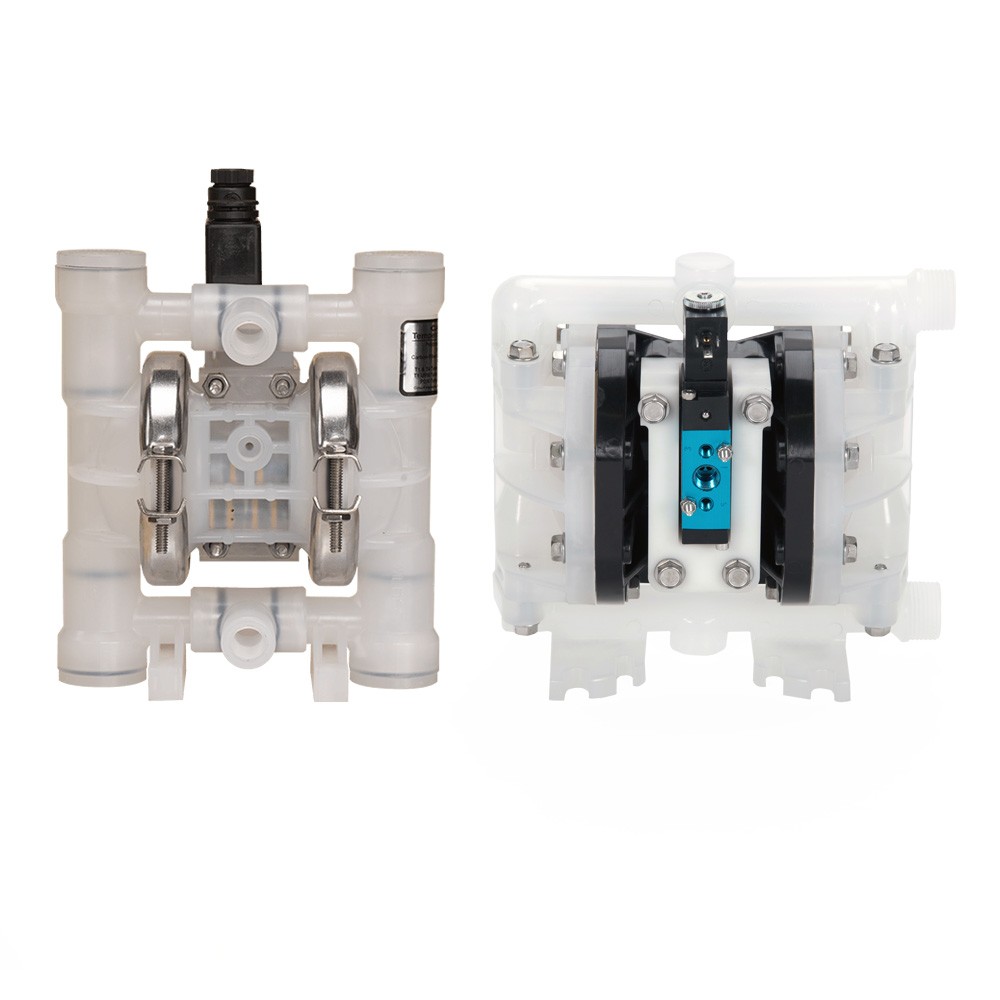

This Accu-Flo air-operated double-diaphragm pump combines a pvdf wetted housing with Santoprene® diaphragms. The clamped configuration has 1/4-inch NPT fluid connections and a polypropylene air-side assembly. Identify the complete ordering code when matching the control configuration and replacement components.
Complete model
A.025P/KKPPP/WFS/TF/KTV/0151
FLUID CONNECTION
1/4-inch NPT
| Brand / item number | WILDEN / 00-9931 |
|---|---|
| Pump series | Accu-Flo |
| Nominal fluid port size | 1/4 in (0.25 in) |
| Construction | Clamped |
| Wetted housing | PVDF |
| Diaphragm material | Santoprene® |
| Diaphragm design / stroke | Traditional / Full-Stroke |
| Check ball material | PTFE |
| Valve seat material | PVDF |
| Connection standard | NPT threaded |
| Inlet / discharge orientation | Center swivel / Center swivel |
| Maximum solids diameter | 0.02 in (approximately 0.5 mm) |
|---|---|
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 3.89 lb (approximately 1.76 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | PVDF |
| Wetted O-rings / gaskets | PTFE-ENCAPSULATED FKM |
| Muffler | Plastic |
| Air inlet connection | 0.125" FNPT |
| Inlet / discharge size | 1/4 in / 1/4 in |
| Thread standard | NPT |
| Construction detail code | 0151 |
Quote 00-9931 and A.025P/KKPPP/WFS/TF/KTV/0151, together with quantity, fluid, operating temperature, required flow and discharge pressure. For individual replacement parts, include the component number and a clear pump nameplate photo.
