Item: 01-10310 Model: P100/PPPPP/BNS/BN/PBN Series: Pro-Flo Wetted material: Polypropylene Diaphragm material: Buna-N Nominal fluid port size: 1/2-inch Construction: Bolted Connection standard: NPT
WILDEN / PRO-FLO SERIES

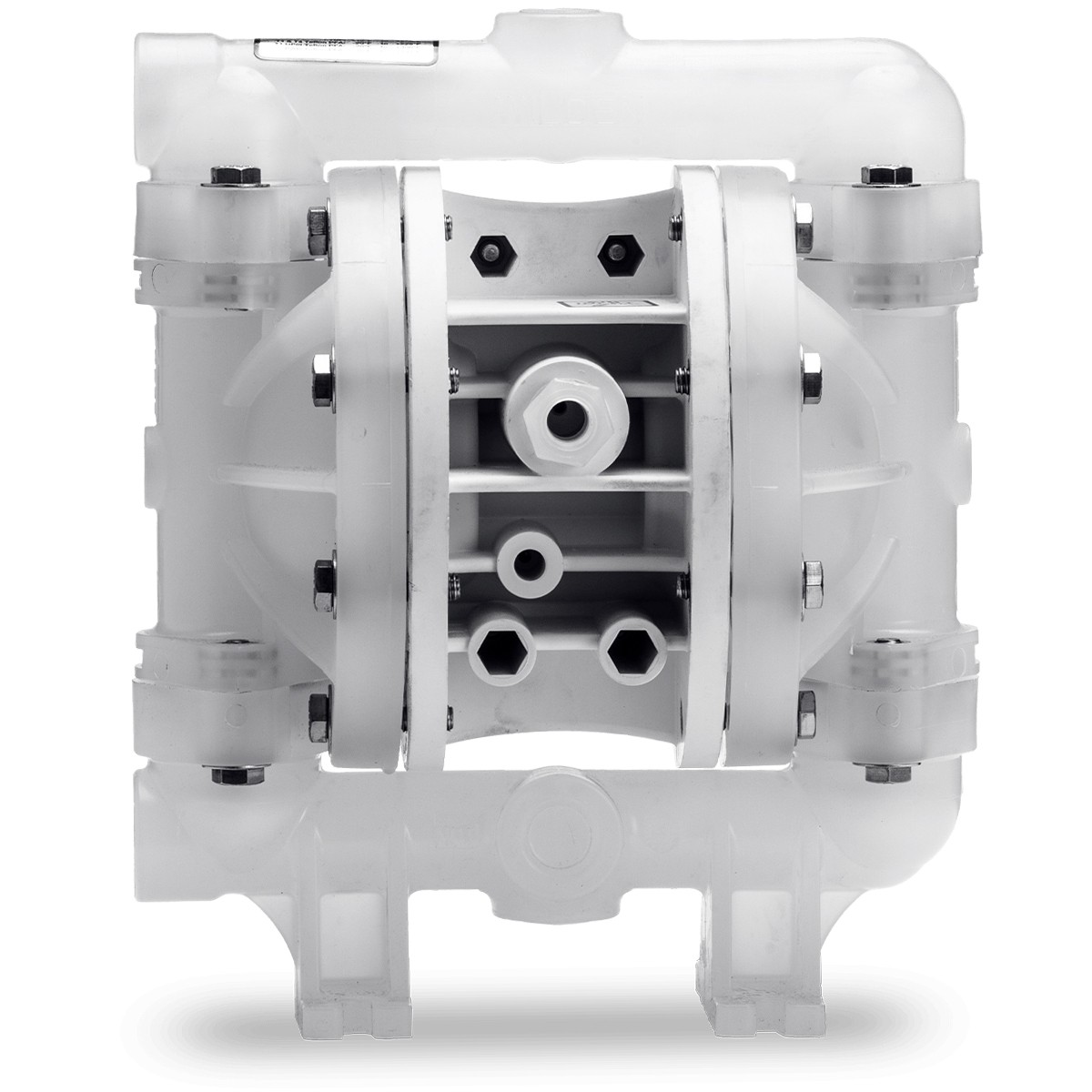

This 1/2-inch Pro-Flo air-operated double-diaphragm pump uses polypropylene wetted housing and Buna-N diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
P100/PPPPP/BNS/BN/PBN
FLUID PORT SIZE
1/2-inch NPT
| Brand / item number | WILDEN / 01-10310 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1/2 in |
| Construction | Bolted |
| Wetted housing | Polypropylene |
| Diaphragm material | Buna-N |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Buna-N |
| Valve seat material | Polypropylene |
| Connection standard | NPT |
| Inlet / discharge orientation | SIDE LEFT / SIDE LEFT |
| Self-priming | Yes |
|---|
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Polypropylene |
| Wetted O-rings / gaskets | Buna-N |
| Hardware material | Stainless steel |
| Muffler | Plastic |

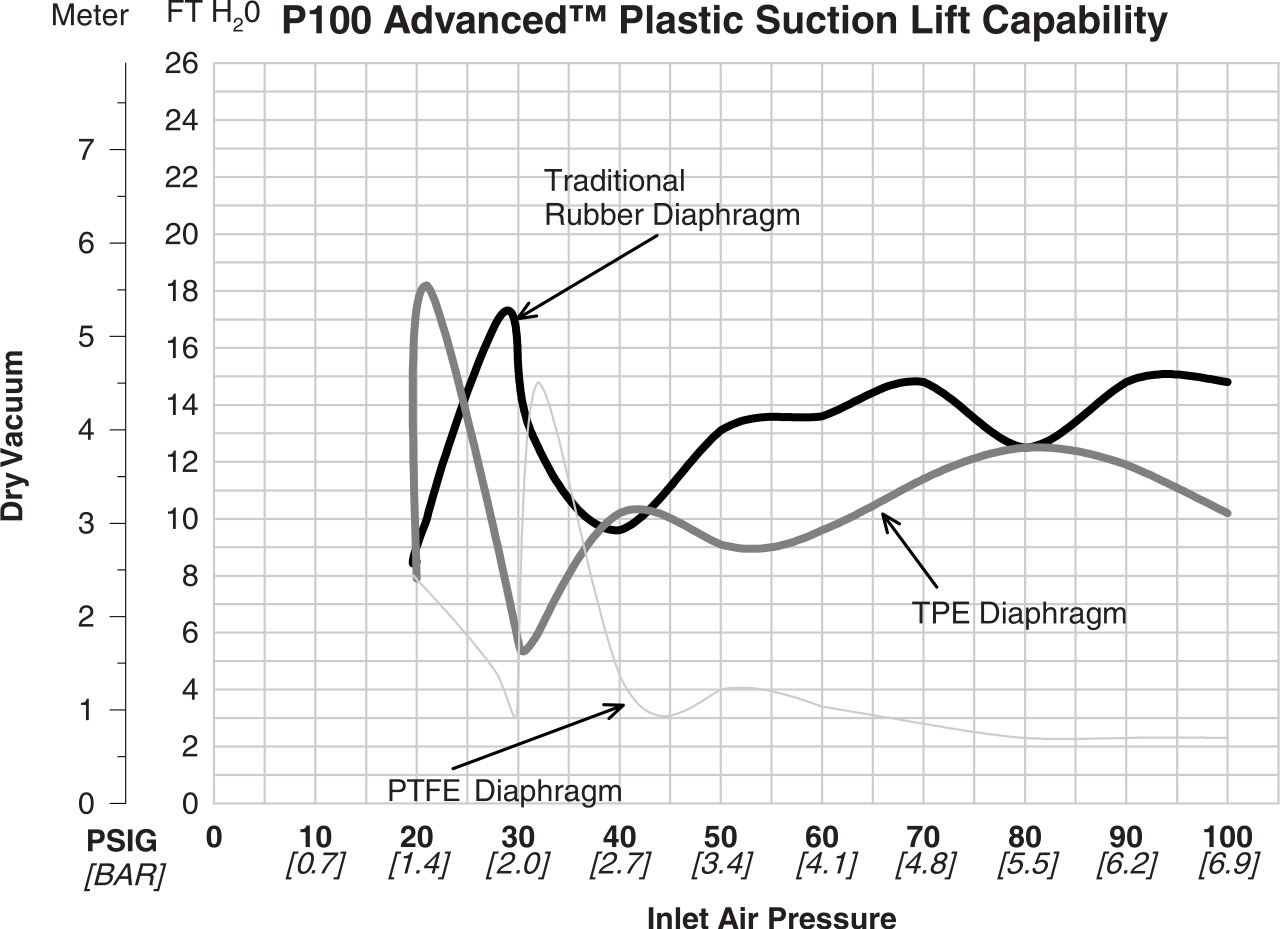

Use the trace for this diaphragm configuration. Click to view the full-size image.

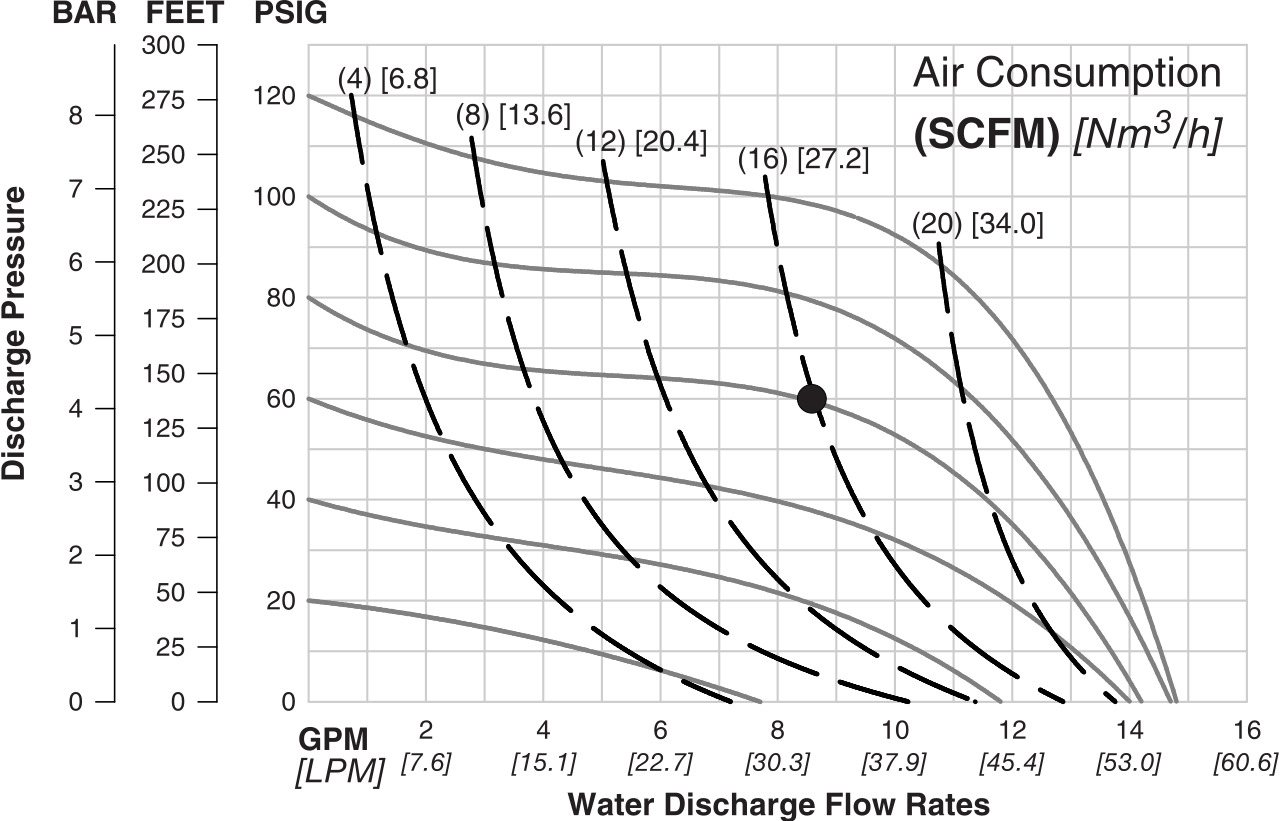

Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Pro-Flo P100 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch bolted pump with Buna-N diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-10310 and P100/PPPPP/BNS/BN/PBN, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
