Item: 01-10323 Model: P100/KKPPP/TNU/TF/KTV/0014 Series: Pro-Flo Wetted material: PVDF Diaphragm material: PTFE / Neoprene Nominal fluid port size: 1/2-inch Construction: Bolted Connection standard: BSPT
WILDEN / PRO-FLO SERIES

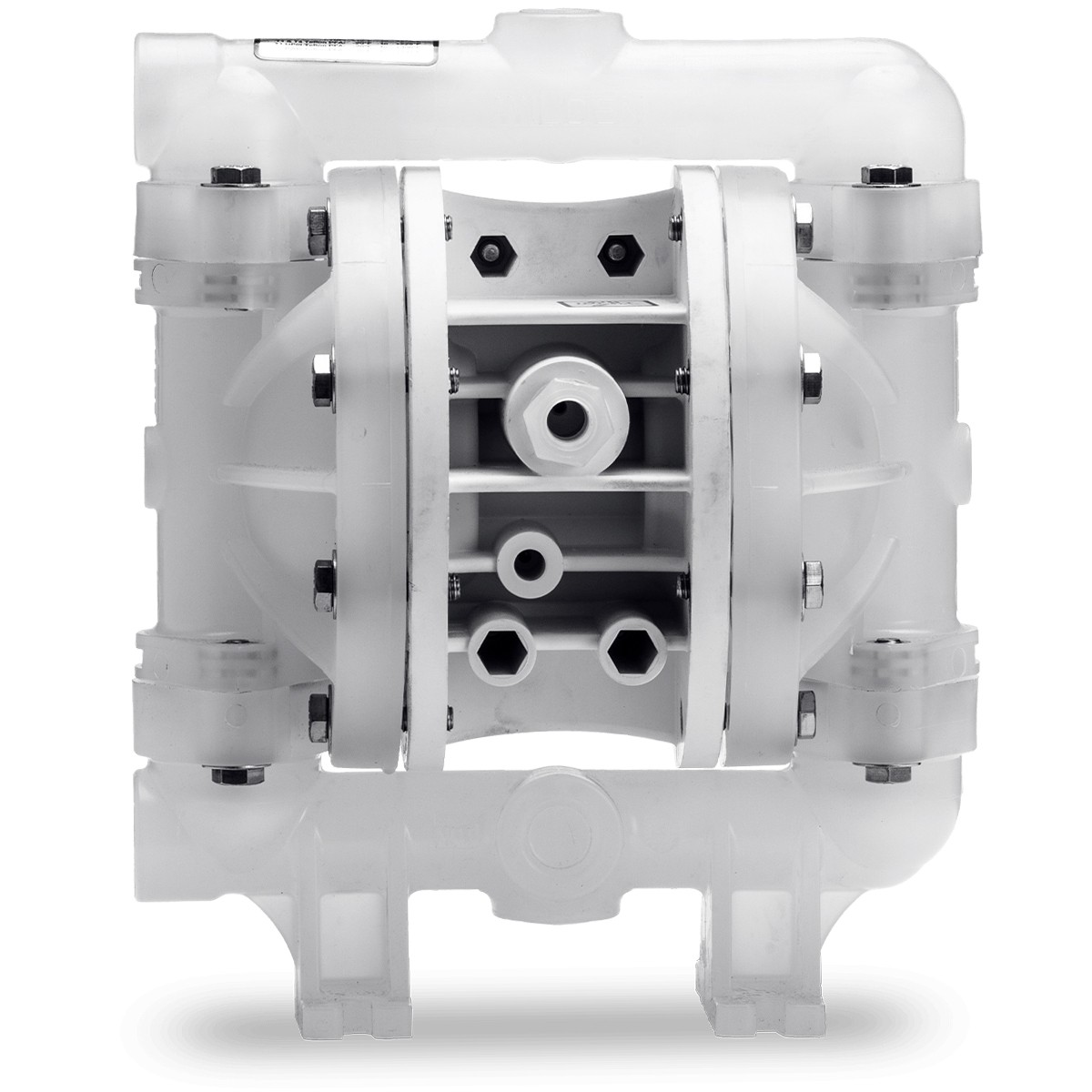

This 1/2-inch Pro-Flo air-operated double-diaphragm pump uses pvdf wetted housing and PTFE / Neoprene diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
P100/KKPPP/TNU/TF/KTV/0014
FLUID PORT SIZE
1/2-inch BSPT
MAXIMUM FLOW
≈ 56.8 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-10323 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1/2 in |
| Construction | Bolted |
| Wetted housing | PVDF |
| Diaphragm material | PTFE / Neoprene |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | PVDF |
| Connection standard | BSPT |
| Inlet / discharge orientation | Side Left / Side Left |
| Maximum flow | 15 US gpm (approximately 56.8 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 14.7 ft (approximately 4.48 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 14 lb (approximately 6.35 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | PVDF |
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Air inlet connection | 1/4" FNPT |
| Special option code | 0014 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Pro-Flo P100 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch bolted pump with PTFE / Neoprene diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-10323 and P100/KKPPP/TNU/TF/KTV/0014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
