Item: 01-10353 Model: P100/KKPPP/VTS/VT/KVT/0014 Series: Pro-Flo Wetted material: PVDF Diaphragm material: FKM Nominal fluid port size: 1/2-inch Construction: Bolted Connection standard: BSPT
WILDEN / PRO-FLO SERIES

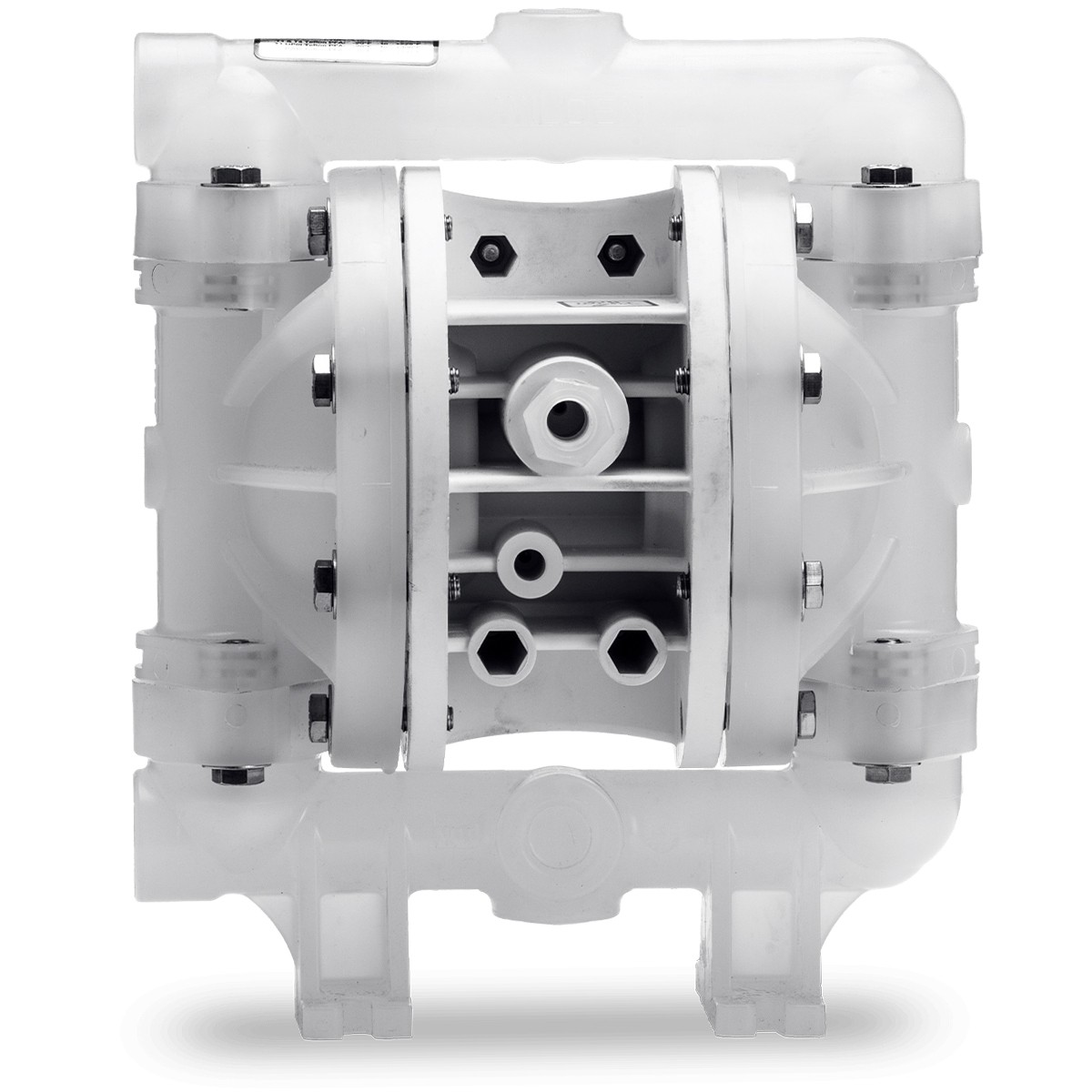

This 1/2-inch Pro-Flo air-operated double-diaphragm pump uses pvdf wetted housing and FKM diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
P100/KKPPP/VTS/VT/KVT/0014
FLUID PORT SIZE
1/2-inch BSPT
MAXIMUM FLOW
≈ 56.0 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-10353 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1/2 in |
| Construction | Bolted |
| Wetted housing | PVDF |
| Diaphragm material | FKM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | FKM |
| Valve seat material | PVDF |
| Connection standard | BSPT |
| Inlet / discharge orientation | Side Left / Side Left |
| Maximum flow | 14.8 US gpm (approximately 56.0 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 17 ft (approximately 5.18 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | PVDF |
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Air inlet connection | 1/4" FNPT |
| Special option code | 0014 |
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Pro-Flo P100 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch bolted pump with FKM diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-10353 and P100/KKPPP/VTS/VT/KVT/0014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
