Item: 01-10360 Model: P100/PPPPP/TNU/TF/PTV/0680 Series: Pro-Flo Wetted material: Polypropylene Diaphragm material: PTFE Nominal fluid port size: 1/2-inch Construction: Bolted
WILDEN / PRO-FLO SERIES

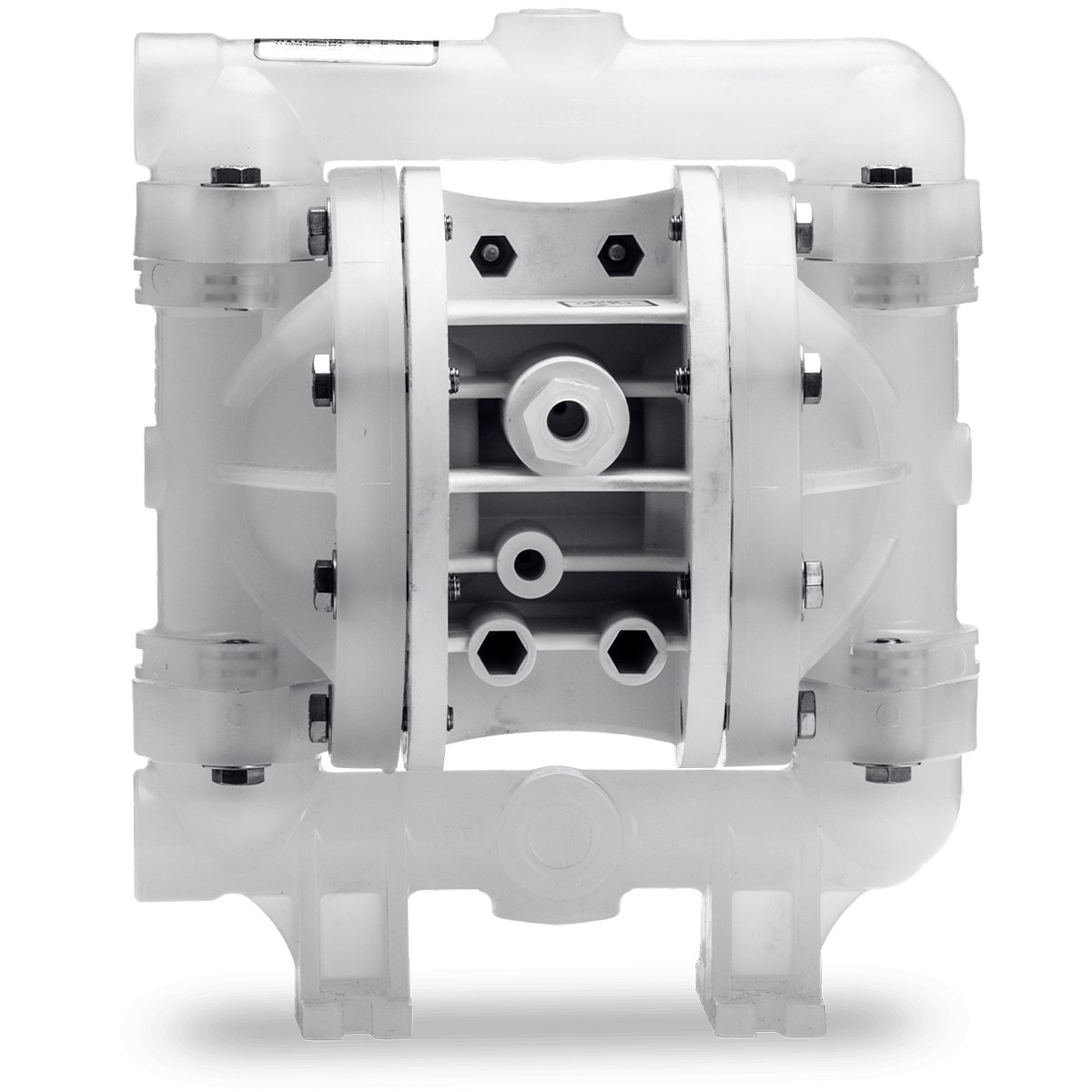

This 1/2-inch Pro-Flo air-operated double-diaphragm pump uses polypropylene wetted housing and PTFE diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
P100/PPPPP/TNU/TF/PTV/0680
FLUID PORT SIZE
1/2-inch
| Brand / item number | WILDEN / 01-10360 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1/2 in |
| Construction | Bolted |
| Wetted housing | Polypropylene |
| Diaphragm material | PTFE |
| Check ball material | PTFE |
| Valve seat material | Polypropylene |
| Outer pistons | Polypropylene |
|---|---|
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
| Special option code | 0680 |
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Pro-Flo P100 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch bolted pump with PTFE diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-10360 and P100/PPPPP/TNU/TF/PTV/0680, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
