Item: 01-10745 Model: PX1/AAAAA/VTS/VT/ATF/0014 Series: Pro-Flo X Wetted material: Aluminum Diaphragm material: FKM Nominal fluid port size: 1/2-inch Construction: Clamped
WILDEN / PRO-FLO X SERIES

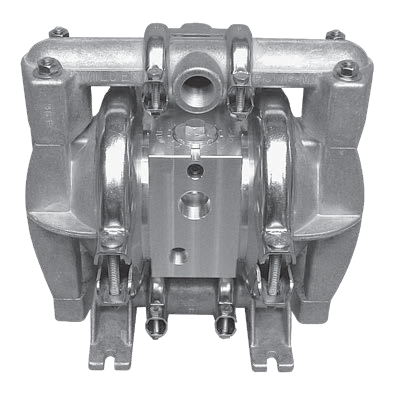

This 1/2-inch Pro-Flo X air-operated double-diaphragm pump uses aluminum wetted housing and FKM diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
PX1/AAAAA/VTS/VT/ATF/0014
FLUID PORT SIZE
1/2-inch
| Brand / item number | WILDEN / 01-10745 |
|---|---|
| Pump series | Pro-Flo X |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Aluminum |
| Diaphragm material | FKM |
| Check ball material | FKM |
| Valve seat material | Aluminum |
| Outer pistons | Aluminum |
|---|---|
| Wetted O-rings / gaskets | PTFE |
| Special option code | 0014 |
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Pro-Flo X PX1 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch clamped pump with FKM diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-10745 and PX1/AAAAA/VTS/VT/ATF/0014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
