Item: 01-11336 Model: GPS1/SSAAA/BNS/BN/SBN Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: Buna-N Nominal fluid port size: 1/2-inch Construction: Clamped Connection standard: NPT
WILDEN / PRO-FLO SHIFT SERIES

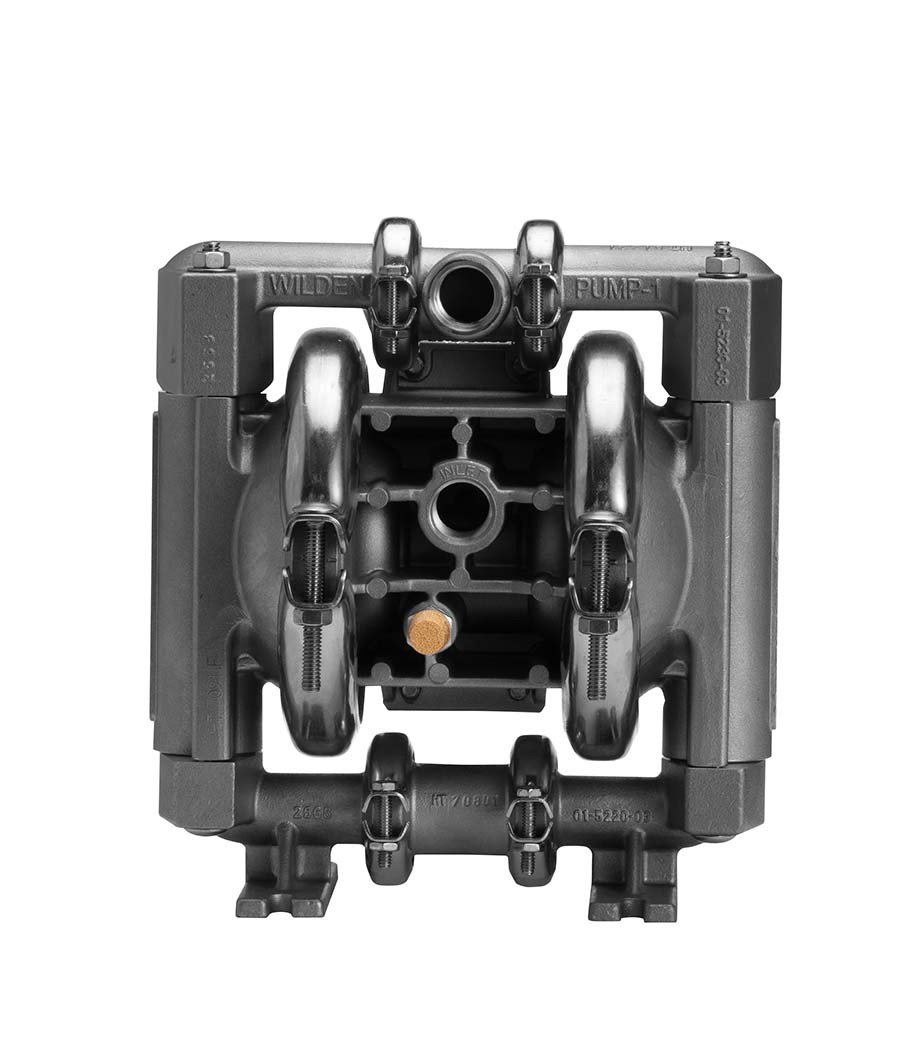

This 1/2-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and Buna-N diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
GPS1/SSAAA/BNS/BN/SBN
FLUID PORT SIZE
1/2-inch NPT
MAXIMUM FLOW
≈ 60.2 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-11336 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | Buna-N |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Buna-N |
| Valve seat material | Stainless steel |
| Connection standard | NPT |
| Product family | CSA Certified |
| Power source | Natural Gas / Compressed Air |
| Inlet / discharge orientation | Center Swivel / Center Swivel |
| Maximum flow | 15.9 US gpm (approximately 60.2 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 19.3 ft (approximately 5.88 m) |
| Listed wet suction lift | 32.3 ft (approximately 9.85 m) |
| Listed operating temperature | 10–180 °F (approximately -12.2–82.2 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Aluminum |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | Buna-N |
| Hardware material | Stainless steel |
| Muffler | None |
| Air inlet connection | 1/2" NPT |
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Pro-Flo Shift GPS1 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch clamped pump with Buna-N diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-11336 and GPS1/SSAAA/BNS/BN/SBN, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
