Item: 01-2665 Model: P1/SSLLL/TNU/TF/STF/0014 Series: Pro-Flo Wetted material: Stainless Steel Diaphragm material: PTFE / Neoprene Fluid connections: 1/2-inch BSPT Inlet / discharge: Center Swivel / Center Swivel
WILDEN / PRO-FLO SERIES

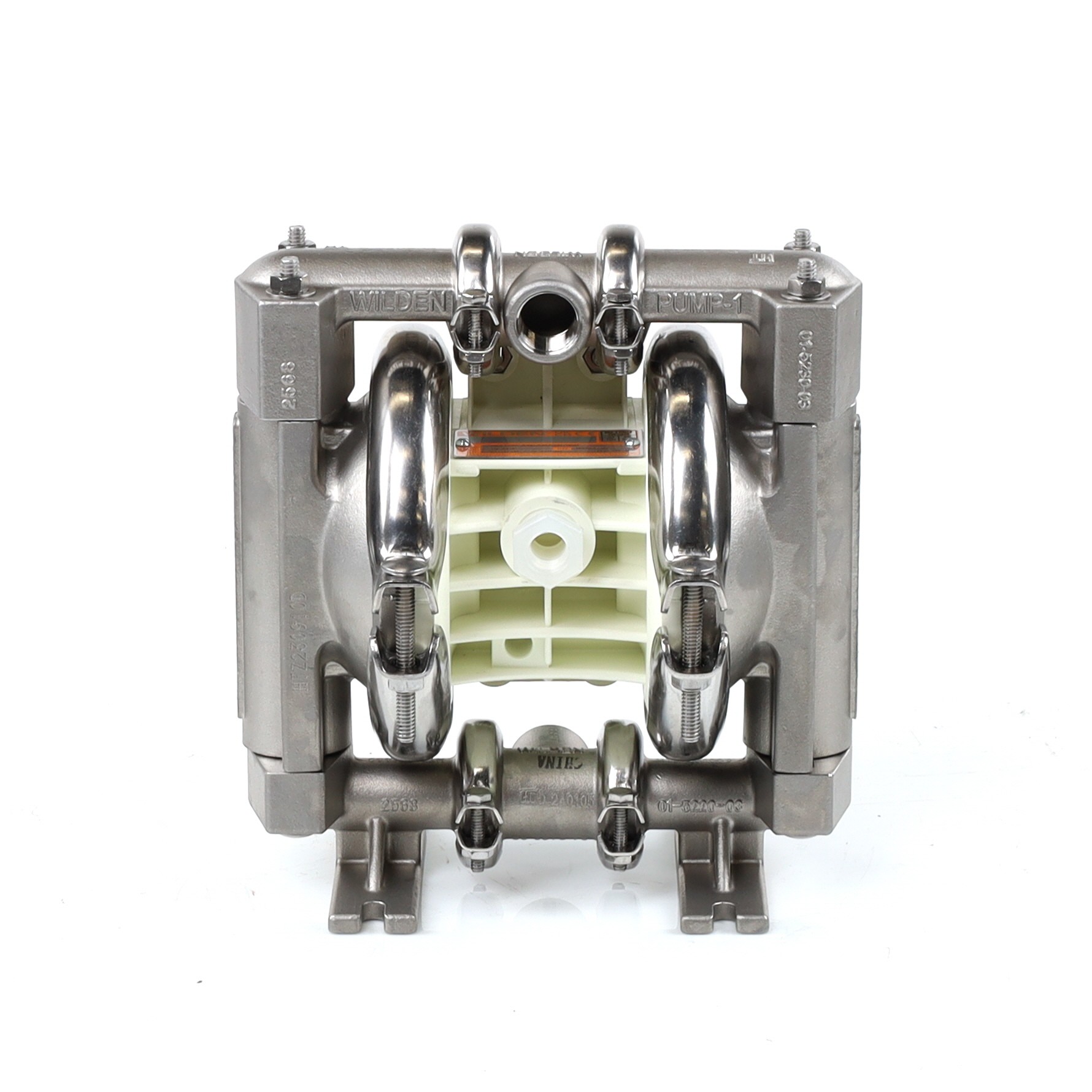

This Pro-Flo air-operated double-diaphragm pump combines a stainless steel wetted housing with PTFE / Neoprene diaphragms. The clamped configuration has 1/2-inch BSPT fluid connections and an acetal air-side assembly.
Complete model
P1/SSLLL/TNU/TF/STF/0014
FLUID CONNECTION
1/2-inch BSPT
MAXIMUM FLOW
≈ 54.5 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-2665 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1/2 in (0.5 in) |
| Construction | Clamped |
| Wetted housing | Stainless Steel |
| Diaphragm material | PTFE / Neoprene |
| Diaphragm design / stroke | Traditional / Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | Stainless Steel |
| Connection standard | BSPT threaded |
| Inlet / discharge orientation | Center Swivel / Center Swivel |
| Maximum flow | 14.4 US gpm (approximately 54.5 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 16 ft (approximately 4.88 m) |
| Listed wet suction lift | 31 ft (approximately 9.45 m) |
| Listed operating temperature | 40–180 °F (approximately 4.4–82.2 °C) |
| Self-priming | TRUE |
| Listed shipping weight | 20 lb (approximately 9.07 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Acetal |
|---|---|
| Outer pistons | Stainless Steel |
| Wetted O-rings / gaskets | PTFE |
| Muffler | Plastic |
| Air inlet connection | 1/4" NPT |
| Inlet / discharge size | 1/2 in / 1/2 in |
| Thread standard | BSPT |
| Construction detail code | 0014 |
AIR REPAIR KIT
Air distribution service kit for this 1/2-inch Pro-Flo P1 configuration with a plastic air valve. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit for this 1/2-inch clamped metal pump with PTFE / Neoprene diaphragms (TNU). Match the installed elastomers and full pump model.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-2665 and P1/SSLLL/TNU/TF/STF/0014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For individual replacement parts, include the component number and a clear pump nameplate photo.
