Item: 01-2692 Model: P1/KKPPP/VTS/VT/KTV Series: Pro-Flo Wetted material: PVDF Diaphragm material: FKM Fluid connections: 1/2-inch NPT Inlet / discharge: Center swivel / Center swivel
WILDEN / PRO-FLO SERIES
This Pro-Flo air-operated double-diaphragm pump combines a PVDF wetted housing with FKM diaphragms. The clamped configuration has 1/2-inch NPT fluid connections and a polypropylene air-side assembly.
Complete model
P1/KKPPP/VTS/VT/KTV
FLUID CONNECTION
1/2-inch NPT
MAXIMUM FLOW
≈ 56.0 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-2692 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1/2 in (0.5 in) |
| Construction | Clamped |
| Wetted housing | PVDF |
| Diaphragm material | FKM |
| Diaphragm design / stroke | Traditional / Full-Stroke |
| Check ball material | FKM |
| Valve seat material | PVDF |
| Connection standard | NPT threaded |
| Inlet / discharge orientation | Center swivel / Center swivel |
| Maximum flow | 14.8 US gpm (approximately 56.0 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 20 ft (approximately 6.10 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 10.3 lb (approximately 4.67 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | PVDF |
| Wetted O-rings / gaskets | PTFE-ENCAPSULATED FKM |
| Muffler | Plastic |
| Air inlet connection | 1/4" FNPT |
| Inlet / discharge size | 1/2 in / 1/2 in |
| Thread standard | NPT |

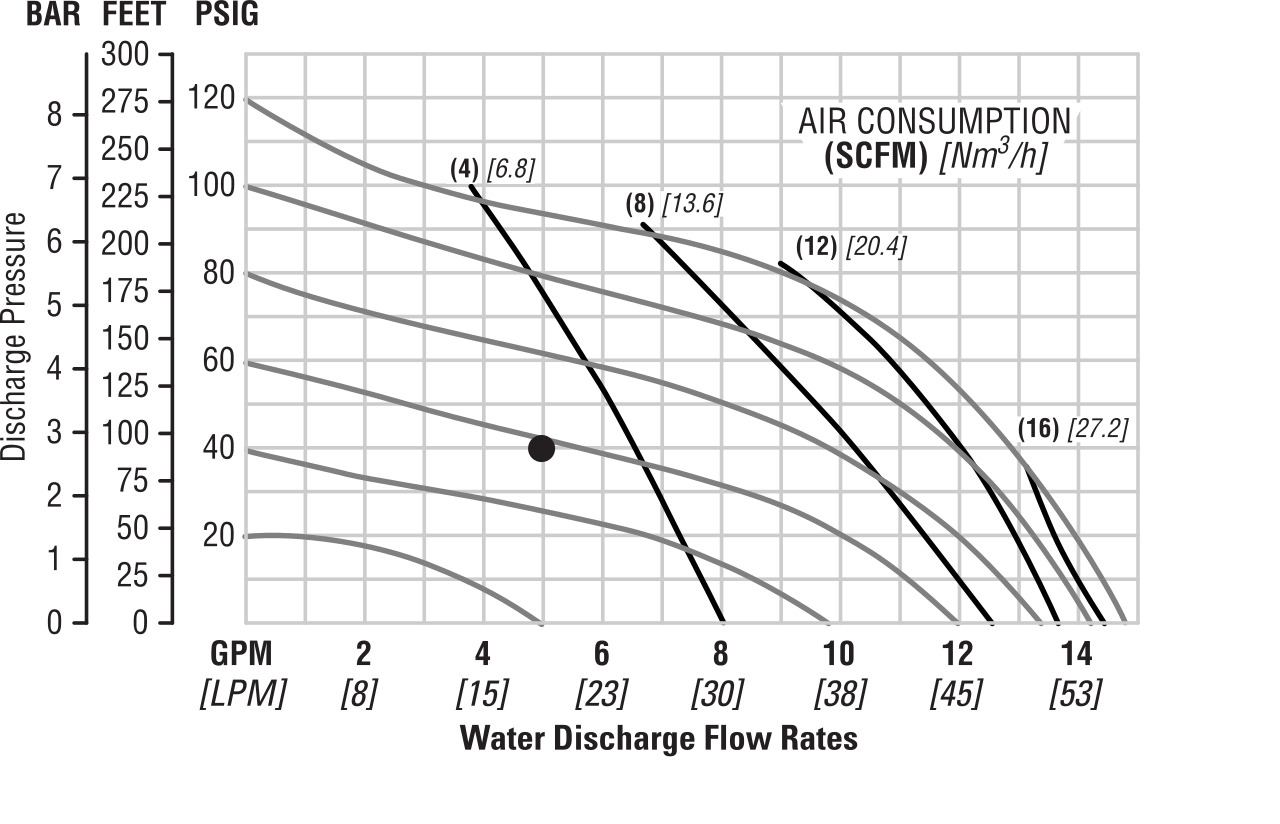

Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit for this 1/2-inch Pro-Flo P1 configuration with a plastic air valve. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit for this 1/2-inch clamped plastic pump with FKM diaphragms (VTS). Match the installed elastomers and full pump model.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-2692 and P1/KKPPP/VTS/VT/KTV, together with quantity, fluid, operating temperature, required flow and discharge pressure. For individual replacement parts, include the component number and a clear pump nameplate photo.
