Item: 02-10449 Model: P2/KKPPP/TEU/TF/KTV/0404 Series: Pro-Flo Wetted material: PVDF Diaphragm material: PTFE / EPDM Nominal fluid port size: 1-inch Construction: Clamped
WILDEN / PRO-FLO SERIES

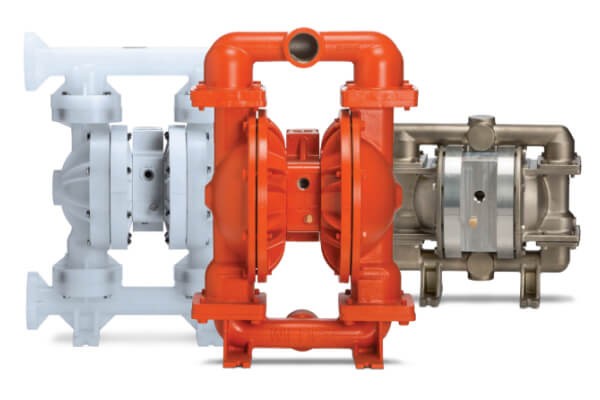

This 1-inch Pro-Flo air-operated double-diaphragm pump uses pvdf wetted housing and PTFE / EPDM diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
P2/KKPPP/TEU/TF/KTV/0404
FLUID PORT SIZE
1-inch
MAXIMUM FLOW
≈ 132.5 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-10449 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1 in |
| Construction | Clamped |
| Wetted housing | PVDF |
| Diaphragm material | PTFE / EPDM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | PVDF |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Swivel / Center Swivel |
| Maximum flow | 35 US gpm (approximately 132.5 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.13 in (approximately 3.3 mm) |
| Listed dry suction lift | 11 ft (approximately 3.35 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 23 lb (approximately 10.43 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | PVDF |
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Special option code | 0404 |
Quote 02-10449 and P2/KKPPP/TEU/TF/KTV/0404, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
