Item: 02-10570 Model: P200/PKPPP/TEU/TF/PTV/0504 Series: Pro-Flo Wetted material: Polypropylene Diaphragm material: PTFE / EPDM Nominal fluid port size: 1-inch Construction: Bolted
WILDEN / PRO-FLO SERIES

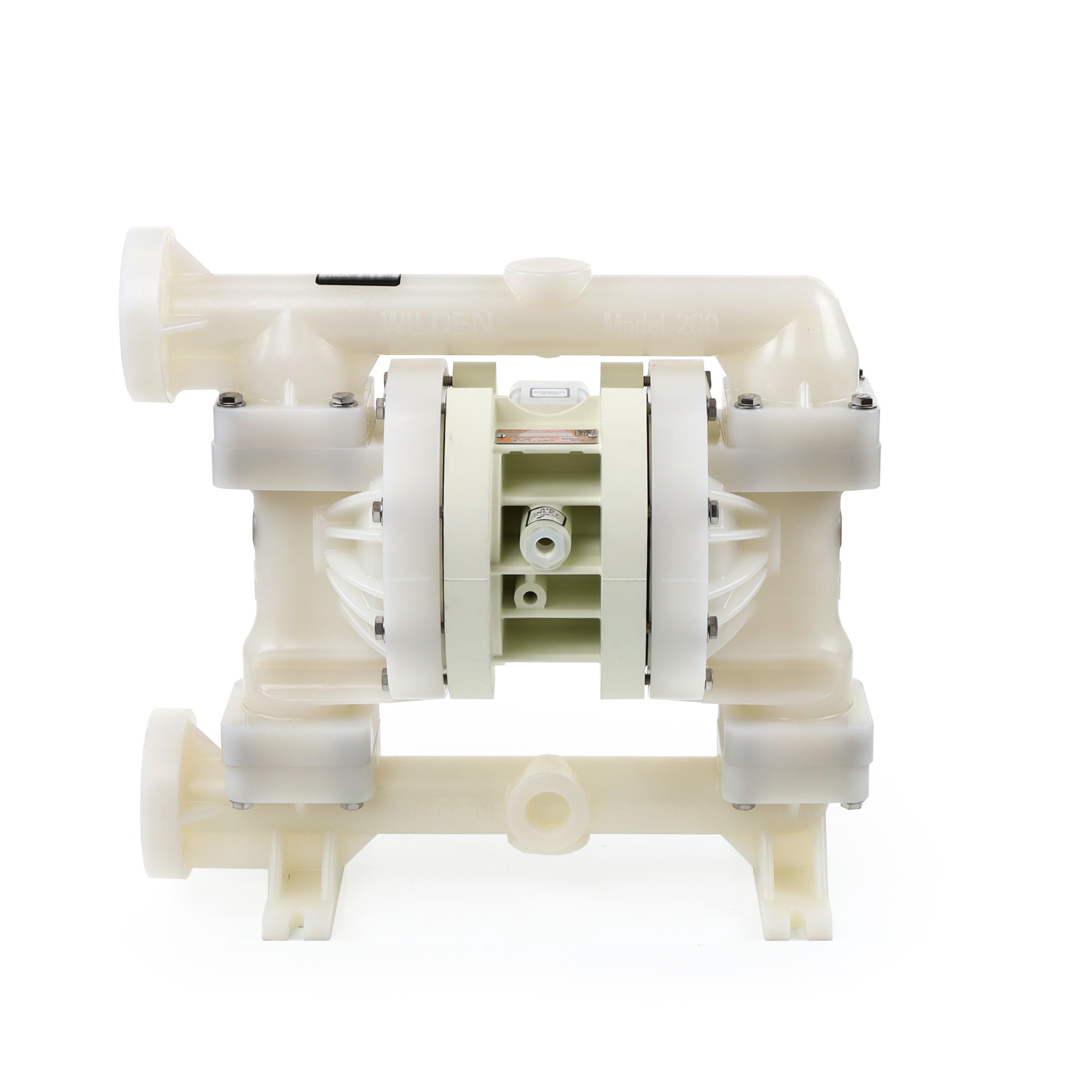

This 1-inch Pro-Flo air-operated double-diaphragm pump uses polypropylene wetted housing and PTFE / EPDM diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
P200/PKPPP/TEU/TF/PTV/0504
FLUID PORT SIZE
1-inch
MAXIMUM FLOW
≈ 174.1 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-10570 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Polypropylene |
| Diaphragm material | PTFE / EPDM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | Polypropylene |
| Power source | Compressed Air |
| Inlet / discharge orientation | Side Left / Side Left |
| Maximum flow | 46 US gpm (approximately 174.1 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.18 in (approximately 4.6 mm) |
| Listed dry suction lift | 7.9 ft (approximately 2.41 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 22 lb (approximately 9.98 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | PVDF |
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Special option code | 0504 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo P200 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch bolted pump with PTFE / EPDM diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-10570 and P200/PKPPP/TEU/TF/PTV/0504, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
