Item: 02-10708 Model: A200P/PKPPP/EPS/EP/PBN/0151 Series: Accu-Flo Wetted material: Polypropylene Diaphragm material: EPDM Nominal fluid port size: 1-inch Construction: Bolted Connection standard: ANSI
WILDEN / ACCU-FLO SERIES

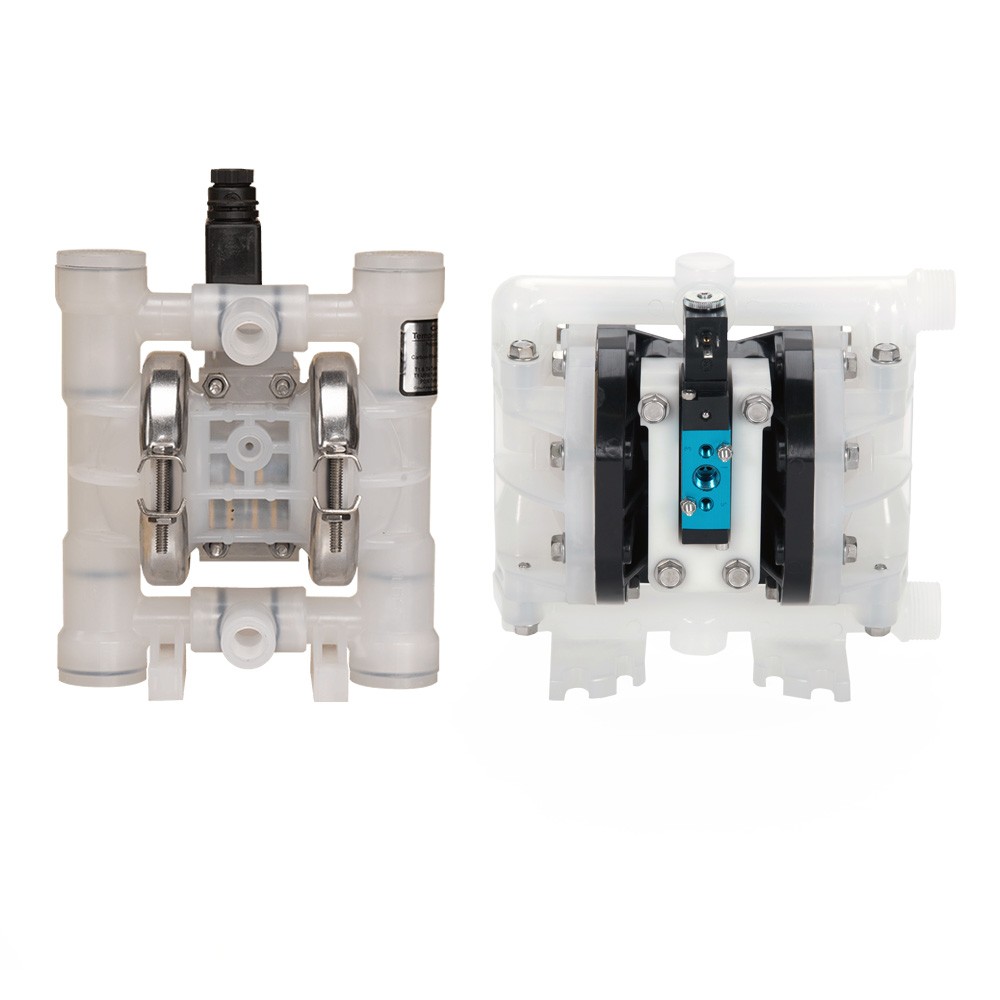

This 1-inch Accu-Flo solenoid-controlled air-operated double-diaphragm pump uses polypropylene wetted housing and EPDM diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the ANSI standard. Operation requires compressed air and an external electrical control signal; confirm the solenoid configuration before ordering.
Complete model
A200P/PKPPP/EPS/EP/PBN/0151
FLUID PORT SIZE
1-inch ANSI
| Brand / item number | WILDEN / 02-10708 |
|---|---|
| Pump series | Accu-Flo |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Polypropylene |
| Diaphragm material | EPDM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | EPDM |
| Valve seat material | Polypropylene |
| Connection standard | ANSI |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | SIDE LEFT / SIDE LEFT |
| Maximum solids diameter | 0.18 in (approximately 4.6 mm) |
|---|---|
| Listed operating temperature | 32–175 °F (approximately 0.0–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 22 lb (approximately 9.98 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | PVDF |
| Wetted O-rings / gaskets | Buna-N |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Special option code | 0151 |
Quote 02-10708 and A200P/PKPPP/EPS/EP/PBN/0151, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
