Item: 02-11258 Model: A200P/PKPPP/WFS/WF/PWF/0150 Series: Accu-Flo Wetted material: Polypropylene Diaphragm material: Santoprene® Nominal fluid port size: 1-inch Construction: Bolted Connection standard: ANSI
WILDEN / ACCU-FLO SERIES

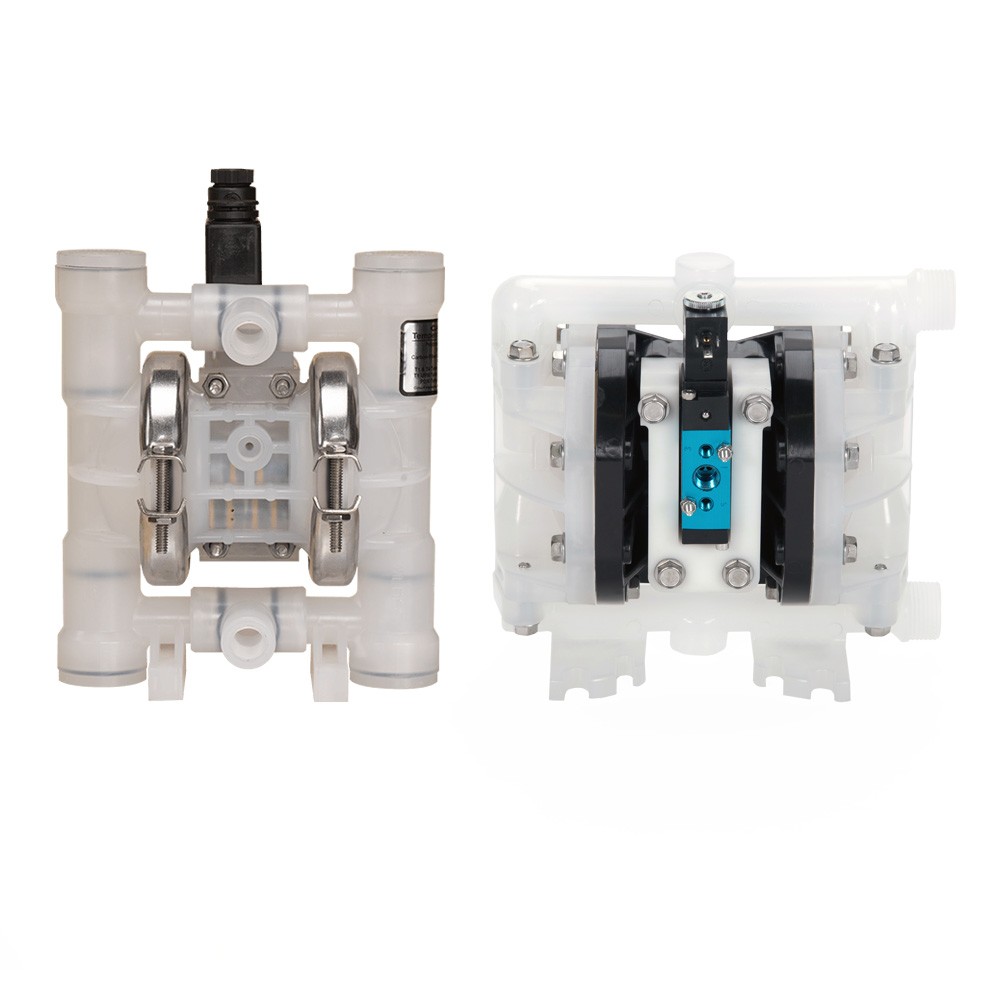

This 1-inch Accu-Flo solenoid-controlled air-operated double-diaphragm pump uses polypropylene wetted housing and Santoprene® diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the ANSI standard. Operation requires compressed air and an external electrical control signal; confirm the solenoid configuration before ordering.
Complete model
A200P/PKPPP/WFS/WF/PWF/0150
FLUID PORT SIZE
1-inch ANSI
| Brand / item number | WILDEN / 02-11258 |
|---|---|
| Pump series | Accu-Flo |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Polypropylene |
| Diaphragm material | Santoprene® |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Santoprene® |
| Valve seat material | Polypropylene |
| Connection standard | ANSI |
| Product family | ELECTRONIC CONTROLLED |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | SIDE LEFT / SIDE LEFT |
| Maximum solids diameter | 0.18 in (approximately 4.6 mm) |
|---|---|
| Listed operating temperature | 32–175 °F (approximately 0.0–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 22 lb (approximately 9.98 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | PVDF |
| Wetted O-rings / gaskets | SANTOPRENE |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Special option code | 0150 |
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch bolted pump with Santoprene® diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-11258 and A200P/PKPPP/WFS/WF/PWF/0150, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
