Item: 02-12282 Model: P2/AAPPP/TSS/TF/ATF/2014 Series: Pro-Flo Wetted material: Aluminum Diaphragm material: PTFE / Hytrel® Nominal fluid port size: 1-inch Construction: Clamped Connection standard: BSPT
WILDEN / PRO-FLO SERIES

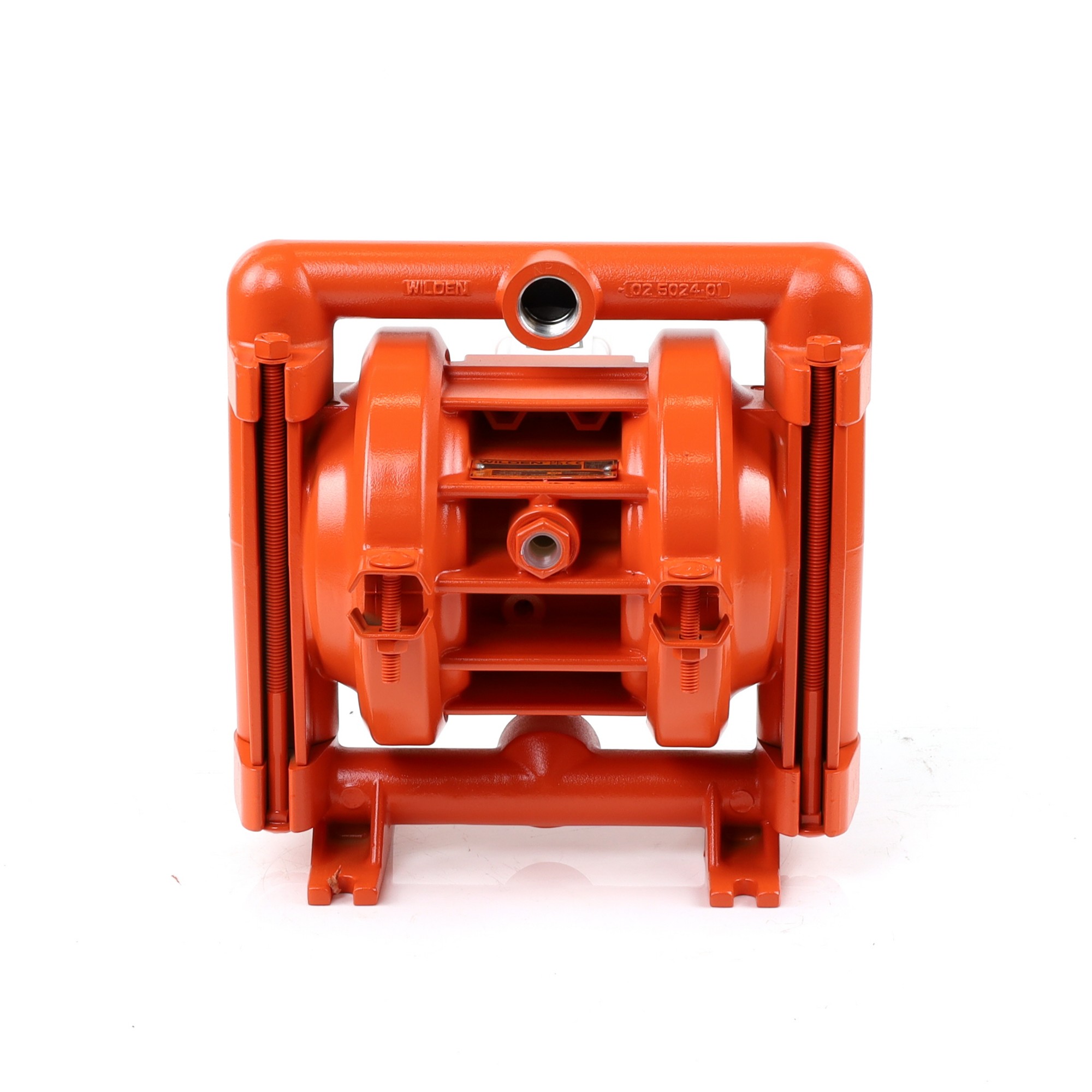

This 1-inch Pro-Flo air-operated double-diaphragm pump uses aluminum wetted housing and PTFE / Hytrel® diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
P2/AAPPP/TSS/TF/ATF/2014
FLUID PORT SIZE
1-inch BSPT
MAXIMUM FLOW
≈ 166.6 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-12282 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1 in |
| Construction | Clamped |
| Wetted housing | Aluminum |
| Diaphragm material | PTFE / Hytrel® |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | PTFE |
| Valve seat material | Aluminum |
| Connection standard | BSPT |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Horizontal Back / Center Horizontal Front |
| Maximum flow | 44 US gpm (approximately 166.6 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.13 in (approximately 3.3 mm) |
| Listed dry suction lift | 15.3 ft (approximately 4.66 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 20 lb (approximately 9.07 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Aluminum |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | Diaphragm Dependent |
| Muffler | Plastic |
| Special option code | 2014 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo P2 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch clamped pump with PTFE / Hytrel® diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-12282 and P2/AAPPP/TSS/TF/ATF/2014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
