Item: 02-12346 Model: XH220/SSSAA/TWS/TF/STF/0014 Series: High Pressure Wetted material: Stainless steel Diaphragm material: PTFE / Santoprene® Nominal fluid port size: 1-inch Construction: Bolted Connection standard: BSPT
WILDEN / HIGH PRESSURE RANGE

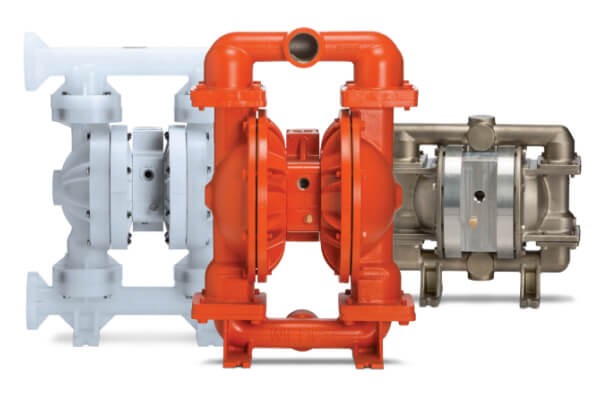

This 1-inch High Pressure air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE / Santoprene® diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
XH220/SSSAA/TWS/TF/STF/0014
FLUID PORT SIZE
1-inch BSPT
| Brand / item number | WILDEN / 02-12346 |
|---|---|
| Product family | High Pressure |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE / Santoprene® |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Connection standard | BSPT |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Horizontal Back / Center Horizontal Back |
| Listed operating temperature | 40–220 °F (approximately 4.4–104.4 °C) |
|---|---|
| Self-priming | Yes |
| Listed shipping weight | 90 lb (approximately 40.82 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Aluminum |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Special option code | 0014 |
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch High Pressure XH220 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch bolted pump with PTFE / Santoprene® diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-12346 and XH220/SSSAA/TWS/TF/STF/0014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
