Item: 02-12407 Model: A2P/PKPPP/VTS/VT/PTV/0263 Series: Accu-Flo Wetted material: Polypropylene Diaphragm material: FKM Nominal fluid port size: 1-inch Construction: Clamped Connection standard: ANSI
WILDEN / ACCU-FLO SERIES

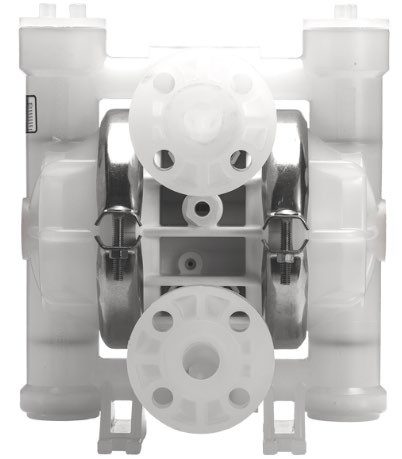

This 1-inch Accu-Flo solenoid-controlled air-operated double-diaphragm pump uses polypropylene wetted housing and FKM diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the ANSI standard. Operation requires compressed air and an external electrical control signal; confirm the solenoid configuration before ordering.
Complete model
A2P/PKPPP/VTS/VT/PTV/0263
FLUID PORT SIZE
1-inch ANSI
| Brand / item number | WILDEN / 02-12407 |
|---|---|
| Pump series | Accu-Flo |
| Nominal fluid port size | 1 in |
| Construction | Clamped |
| Wetted housing | Polypropylene |
| Diaphragm material | FKM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | FKM |
| Valve seat material | Polypropylene |
| Connection standard | ANSI |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | CENTER SWIVEL / CENTER SWIVEL |
| Maximum solids diameter | 0.13 in (approximately 3.3 mm) |
|---|---|
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 17.88 lb (approximately 8.11 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | PVDF |
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Air inlet connection | .25" FNPT |
| Special option code | 0263 |
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch clamped pump with FKM diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-12407 and A2P/PKPPP/VTS/VT/PTV/0263, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
