Item: 02-12947 Model: XPS230/SSAAA/NES/NE/SNE/0504 Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: Neoprene Nominal fluid port size: 1-inch Construction: Bolted
WILDEN / PRO-FLO SHIFT SERIES

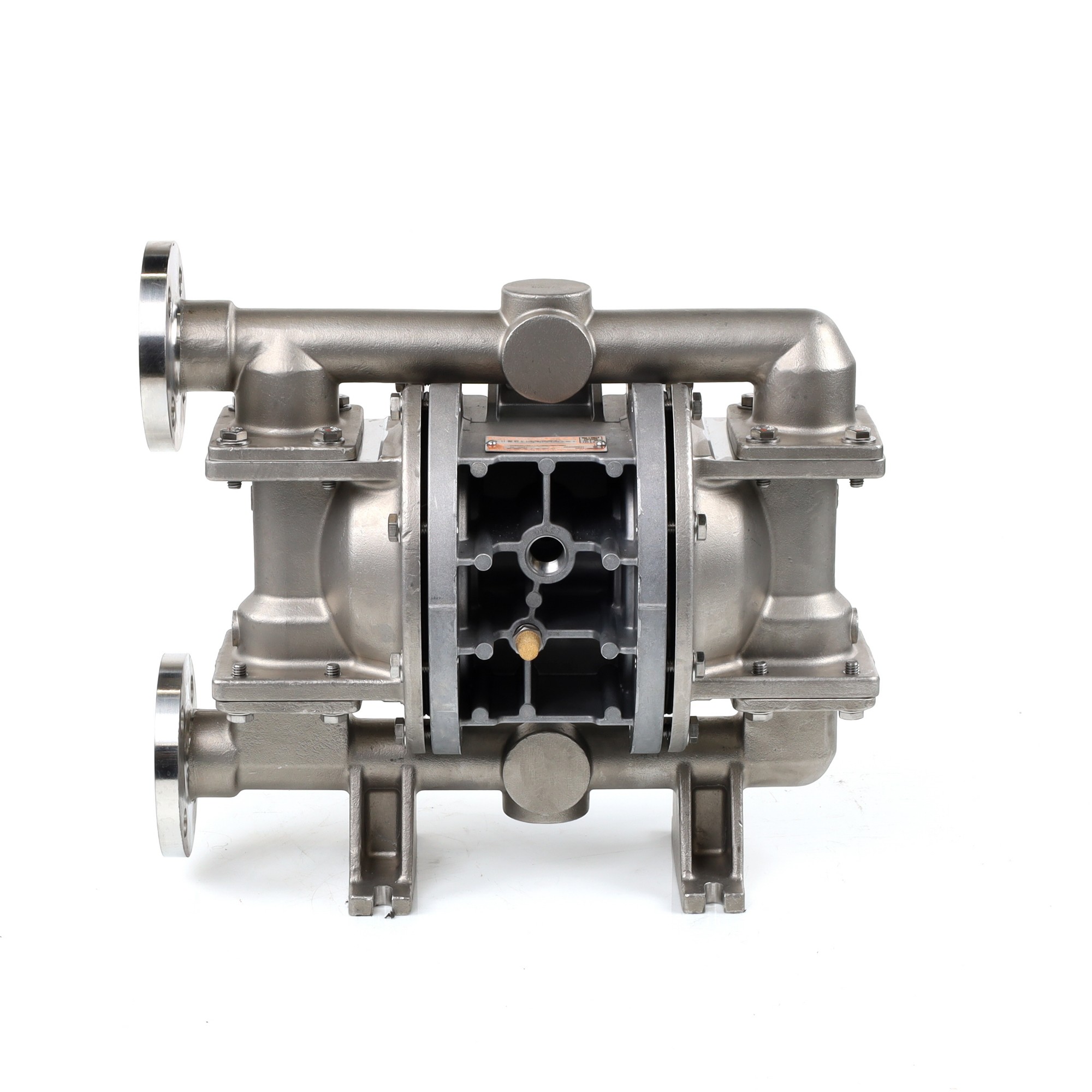

This 1-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and Neoprene diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
XPS230/SSAAA/NES/NE/SNE/0504
FLUID PORT SIZE
1-inch
MAXIMUM FLOW
≈ 204.4 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-12947 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Stainless steel |
| Diaphragm material | Neoprene |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Neoprene |
| Valve seat material | Stainless steel |
| Power source | Compressed Air |
| Inlet / discharge orientation | Side Left / Side Left |
| Maximum flow | 54 US gpm (approximately 204.4 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.25 in (approximately 6.3 mm) |
| Listed dry suction lift | 22.7 ft (approximately 6.92 m) |
| Listed operating temperature | 0–200 °F (approximately -17.8–93.3 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Aluminum |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | Neoprene |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Special option code | 0504 |
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo Shift XPS230 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1-inch bolted pump with Neoprene diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 02-12947 and XPS230/SSAAA/NES/NE/SNE/0504, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
